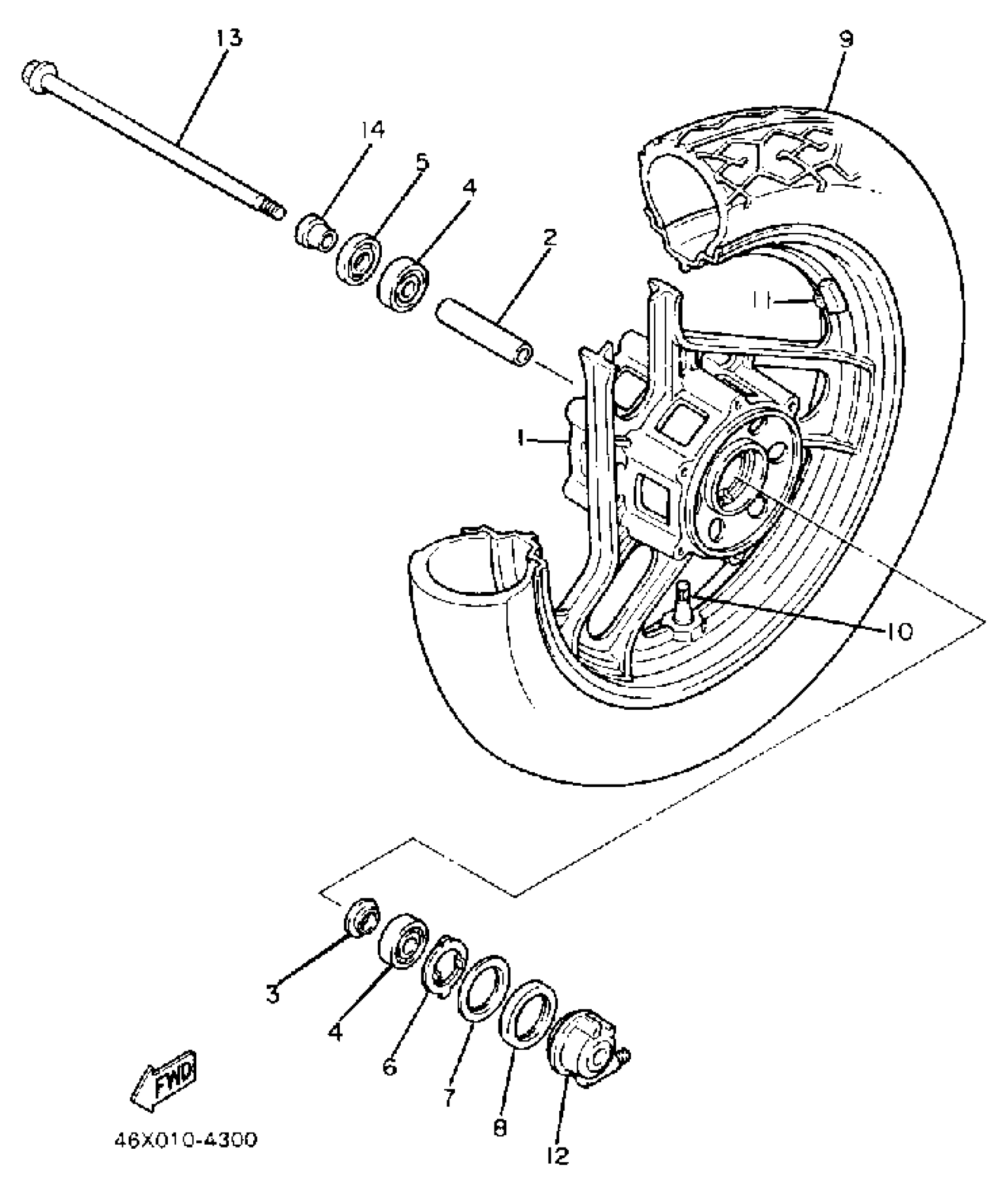

Yamaha FZ600UC (FZ600 CA) 1988 FRONT WHEEL Diagram

WHEEL, CAST FRONT

46X-25168-00-UA

Unavailable

SPACER

90560-15116-00

Unavailable

FLANGE, SPACER

146-25115-00-00

$6.99

BEARING

93306-30212-00

$40.99

OIL SEAL (22X42X7)

93102-22014-00

$12.49

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

OIL SEAL (45X56X6)

93105-45017-00

$14.99

110/90-16 YOKO 54H

94110-167J1-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

BALANCER, WHEEL

5MT-25398-00-00

$17.49

BALANCER, WHEEL

5MT-25398-10-00

$17.49

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

GEAR UNIT ASSY

4X8-25190-10-00

Unavailable

AXLE, WHEEL

10W-25381-00-00

Unavailable

COLLAR (1L9)

90387-15550-00

Unavailable
