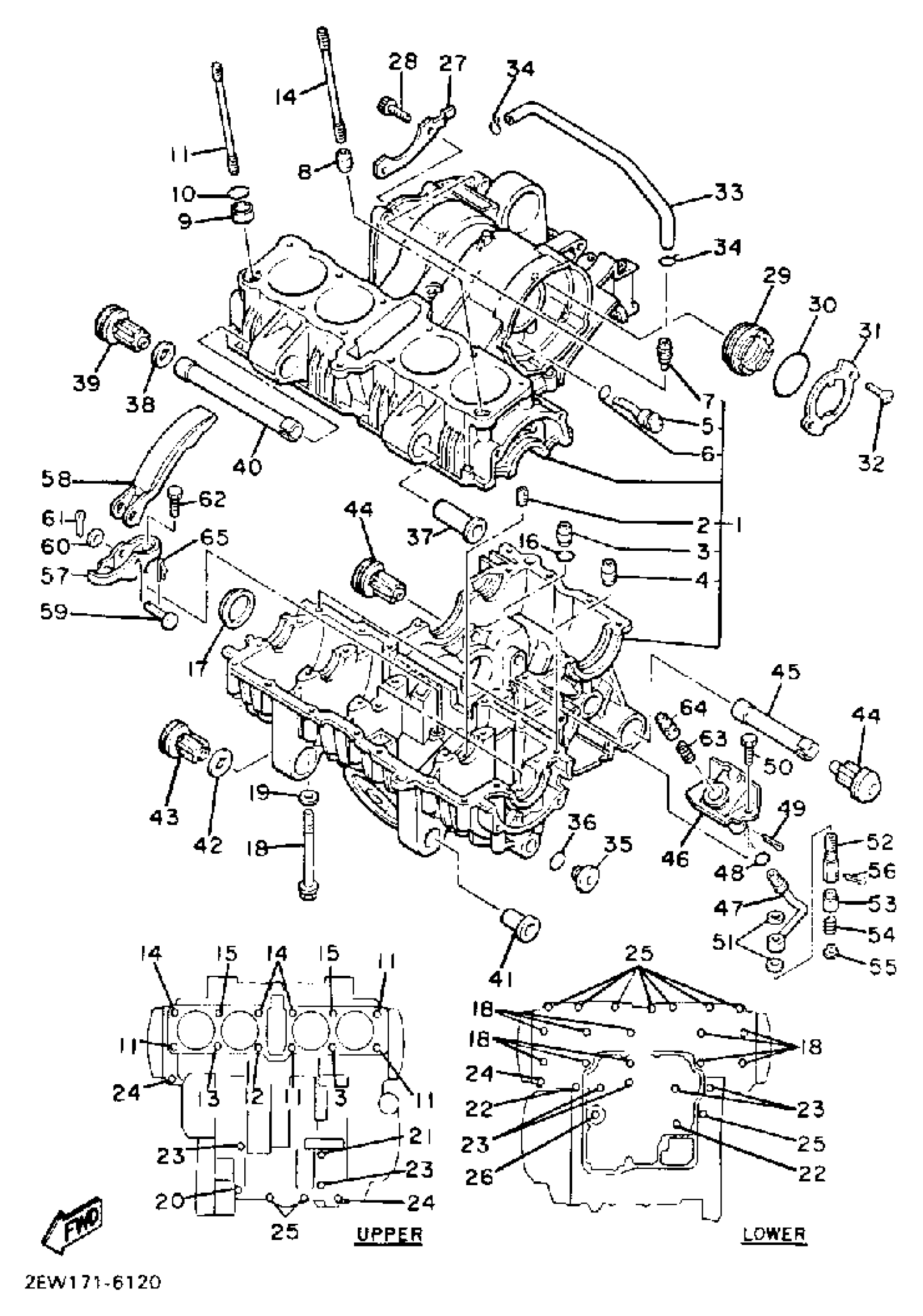

Yamaha FZ600UC (FZ600 CA) 1988 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

49A-15100-03-00

Unavailable

2

NOZZLE

4KM-13572-01-00

$6.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

PIN, DOWEL

99530-12016-00

$4.89

5

. NOZZLE 2

4G0-15148-00-00

Unavailable

6

O-RING (4G0)

93210-11453-00

$7.49

7

PIPE, BREATHER 2

371-11167-01-00

$13.49

8

PIN, DOWEL

99530-14016-00

$3.80

9

COLLAR (1L9)

90387-16547-00

$9.49

10

O-RING (1L9)

93210-18322-00

$5.60

11

BOLT, STUD

90116-08338-00

Unavailable

12

BOLT, STUD

90116-08339-00

Unavailable

13

BOLT, STUD

90116-08340-00

Unavailable

14

BOLT, CYLINDER HOLDING 3

4G0-11363-00-00

Unavailable

15

BOLT, CYLINDER HOLDING 4

4G0-11364-00-00

Unavailable

16

O-RING (1J7)

93210-09350-00

Unavailable

17

PLUG (4H7)

4H7-15167-10-00

Unavailable

18

BOLT, FLANGE

95817-08100-00

Unavailable

19

WASHER, PLATE (33N)

90201-094G1-00

Unavailable

20

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

21

BOLT, FLANGE

95811-06115-00

Unavailable

22

BOLT, FLANGE

95817-06095-00

Unavailable

23

BOLT, FLANGE

95817-06065-00

Unavailable

24

UNAVAILABLE IN PRICE BOOK

96811-06055-00

Unavailable

25

BOLT, FLANGE

95817-06045-00

Unavailable

26

BOLT, FLANGE

95817-06035-00

Unavailable

27

PLATE, BRNG COVER

4G0-15381-00-00

Unavailable

28

BOLT,SOCKET

91317-06016-00

Unavailable

29

HOUSING, BEARING 1

4G0-15163-01-00

Unavailable

30

O-RING (26H)

93210-45578-00

Unavailable

31

PLATE, BEARING COVER

4G0-15383-00-00

Unavailable

32

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

33

PIPE, BREATHER 1

46X-11166-00-00

Unavailable

34

CLIP (371)

90467-14015-00

Unavailable

35

PLUG

4H7-15189-00-00

Unavailable

36

O-RING (25G)

93210-20573-00

Unavailable

37

DAMPER, ENGINE MOUNT 3

33M-15336-00-00

Unavailable

38

WASHER, PLATE

90202-15153-00

Unavailable

39

DAMPER, ENGINE MOUNT 3

36Y-15336-02-00

Unavailable

40

SPACER, ENG MOUNT

(33M-15317-00-00)

Unavailable

41

DAMPER 4

33M-15337-00-00

Unavailable

42

WASHER, PLATE

90202-15153-00

Unavailable

43

DAMPER, ENG MOUNT 1

33M-15316-00-00

Unavailable

44

DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)

36Y-15326-00-00

Unavailable

45

SPACER, ENG MOUNT

4G0-15327-00-00

Unavailable

46

TENSIONER, CHAIN

4G0-11592-00-00

Unavailable

47

PIPE, DELIVERY 2

4G0-13171-00-00

Unavailable

48

O-RING (11M)

93210-07540-00

Unavailable

49

PIN, COTTER

91490-25020-00

Unavailable

50

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

Unavailable

51

GASKET (5R6)

90430-10171-00

Unavailable

52

RELIEF VALVE ASS'Y

4G0-11575-00-00

Unavailable

53

RELIEF VALVE ASS'Y

4G0-11575-00-00

Unavailable

54

SPRING, COMPRESSION (4G0)

90501-08614-00

Unavailable

55

WASHER, SPECL SHAP

90209-03202-00

Unavailable

56

PIN, COTTER

91490-20025-00

Unavailable

57

BRACKET, TENSIONER

(4G0-11497-00-00)

Unavailable

58

TENSIONER ARM COMP

4G0-11492-00-00

Unavailable

59

PIN, CLEVIS

90240-08078-00

Unavailable

60

.. WASHER, PLATE

92990-08600-00

Unavailable

61

PIN, COTTER

91490-25020-00

Unavailable

62

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

Unavailable

63

. SPRING, COMPRESSION

90501-143A8-00

Unavailable

64

. PLUNGER, TENSIONER

46X-11597-00-00

Unavailable

65

CLIP

90468-18008-00

Unavailable
