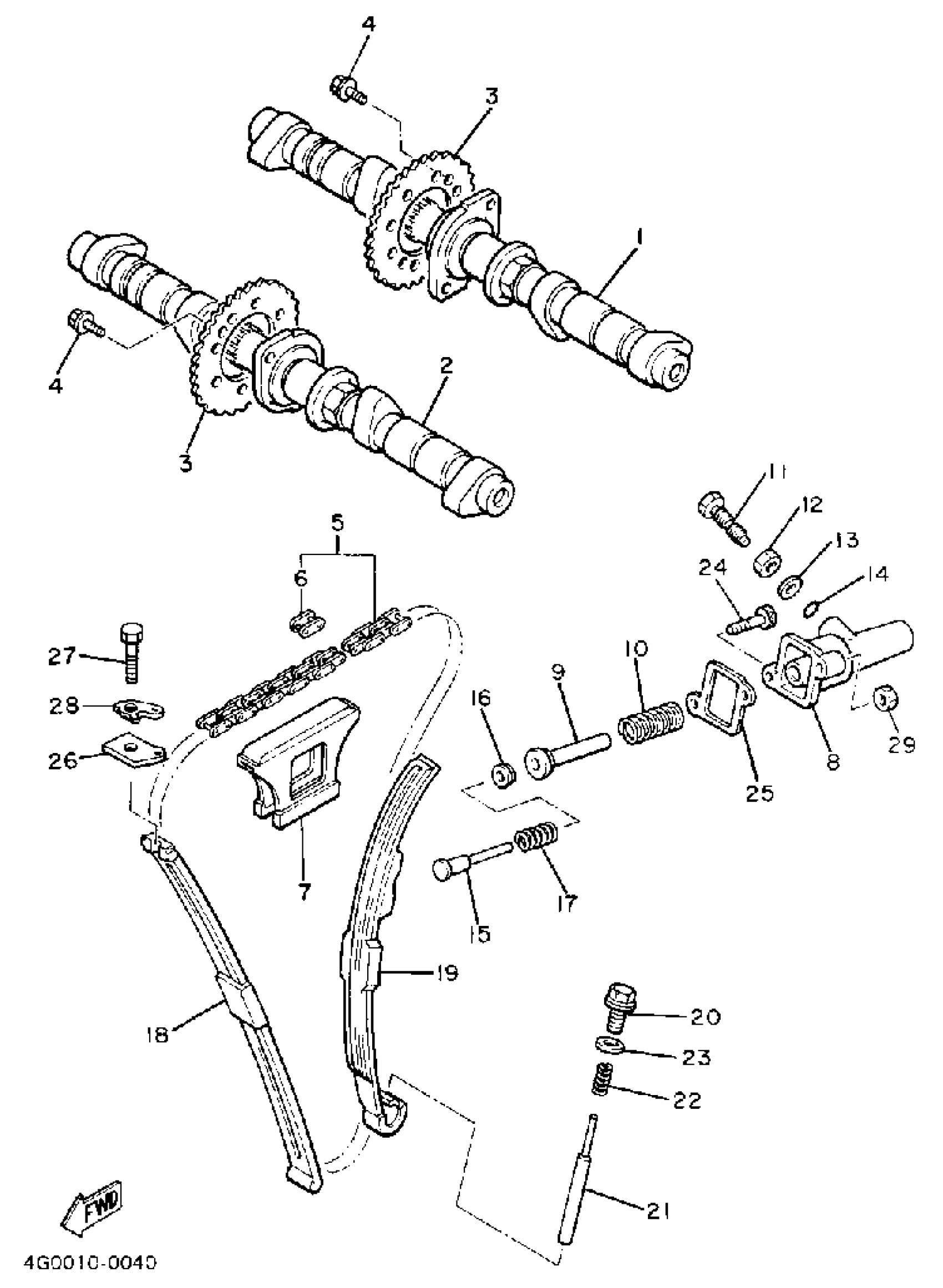

Yamaha FZ600UC (FZ600 CA) 1988 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

49A-12171-00-00

Unavailable

2

CAMSHAFT 2

49A-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN (4G0-12176-00) (32T)

4G0-12176-01-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN CAM SHAFT (DID219FTS 114L)

94580-37114-00

Unavailable

6

PIN, JOINT

4SV-11498-00-00

$7.99

7

GUIDE, STOPPER 2

4H7-12241-00-00

Unavailable

8

CASE, CHAIN TENSNR

4G0-12212-01-00

Unavailable

9

ROD, CHN TENSIONER

4G0-12217-01-00

Unavailable

10

SPRING, COMPRESSION

90501-16616-00

Unavailable

11

BOLT

90109-08442-00

Unavailable

12

. NUT

95380-08700-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

O-RING (26H)

93210-06632-00

$8.49

15

ROD, CHAIN TENSNR 2

4G0-12227-00-00

Unavailable

16

DAMPER

4G0-12232-00-00

Unavailable

17

SPRING, COMPRESSION

90501-13615-00

Unavailable

18

DAMPER, CHAIN 1

4G0-12251-00-00

Unavailable

19

DAMPER, CHAIN 2

4G0-12252-01-00

Unavailable

20

PLUG,STRAIGHT SCRW

90340-10085-00

Unavailable

21

PIN (36Y)

90249-04184-00

Unavailable

22

SPRING, COMPRESSION

90501-15603-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

24

BOLT,SOCKET

91314-08025-00

Unavailable

25

GASKET, TENSNR CASE

3KM-12213-00-00

Unavailable

26

WASHER, SPEC''L SHAP

90209-06201-00

Unavailable

27

BOLT(3RV)

97014-06035-00

Unavailable

28

WASHER, LOCK

90215-06177-00

Unavailable

29

NUT, SPEC''L SHAPE

(90179-06333-00)

Unavailable
