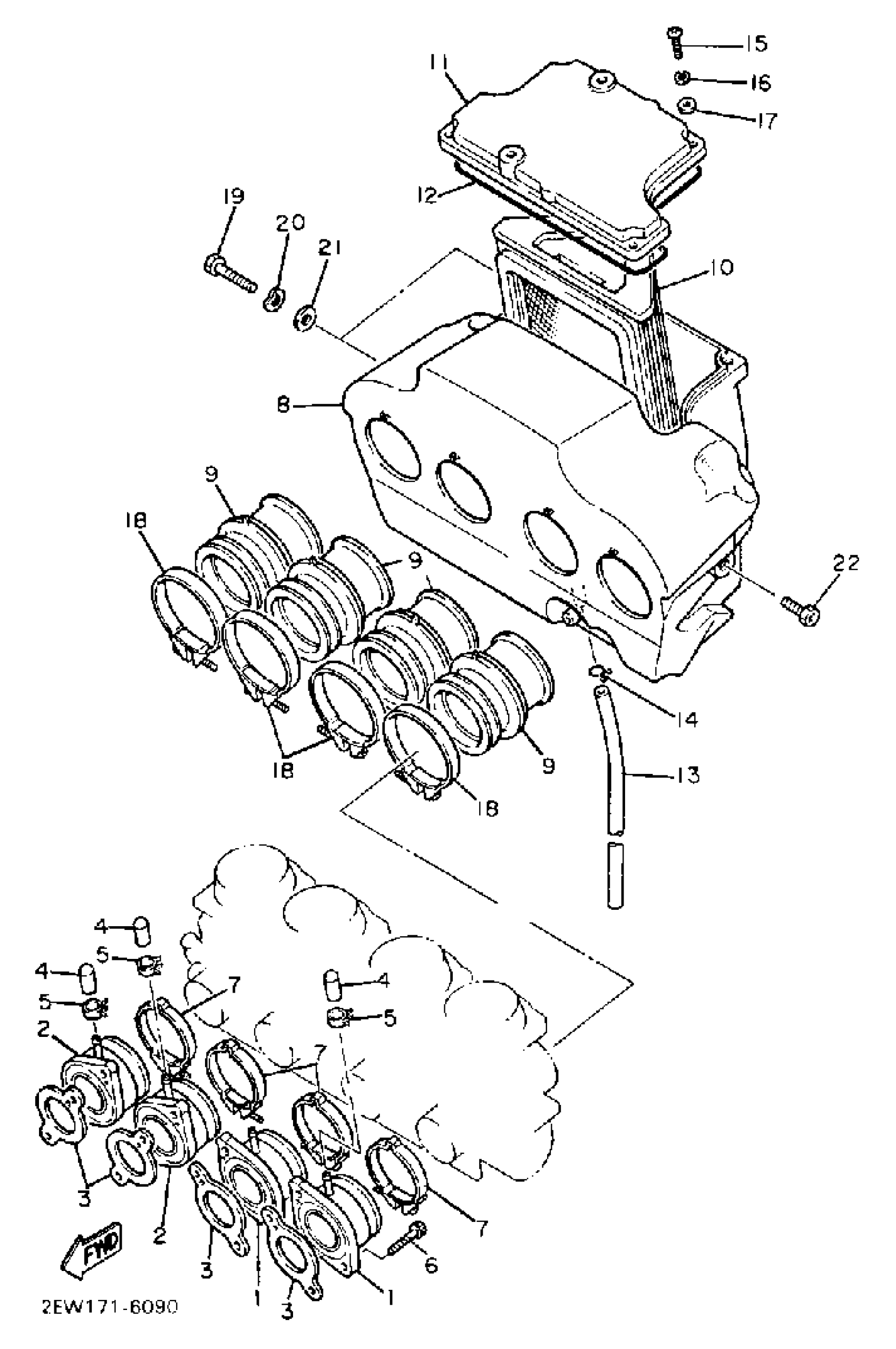

Yamaha FZ600UC (FZ600 CA) 1988 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

33M-13586-01-00

Unavailable

2

JOINT, CARBURETOR 2

33M-13596-01-00

Unavailable

3

GASKET, MANIFOLD

3KM-13556-00-00

Unavailable

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP (3G0)

90467-10039-00

$9.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

BAND

1UJ-13575-00-00

Unavailable

8

AIR CLNR CASE ASSEMBLY

46X-14401-00-00

Unavailable

9

JOINT, AIR CLNR 1

2AX-14453-00-00

Unavailable

10

ELEMENT, AIR CLNR

46X-14451-00-00

Unavailable

11

CAP, CLEANER CASE 1

46X-14412-00-00

Unavailable

12

SEAL

1VJ-14462-00-00

$18.49

13

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

14

CLIP

90467-090A2-00

$4.41

15

SCREW, PAN HEAD

98580-05020-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

CLAMP, HOSE

90460-56287-00

Unavailable

19

BOLT(8CP)

97017-06014-00

Unavailable

20

WASHER(6TA)

92907-06700-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

BOLT,SOCKET

91317-06010-00

Unavailable
