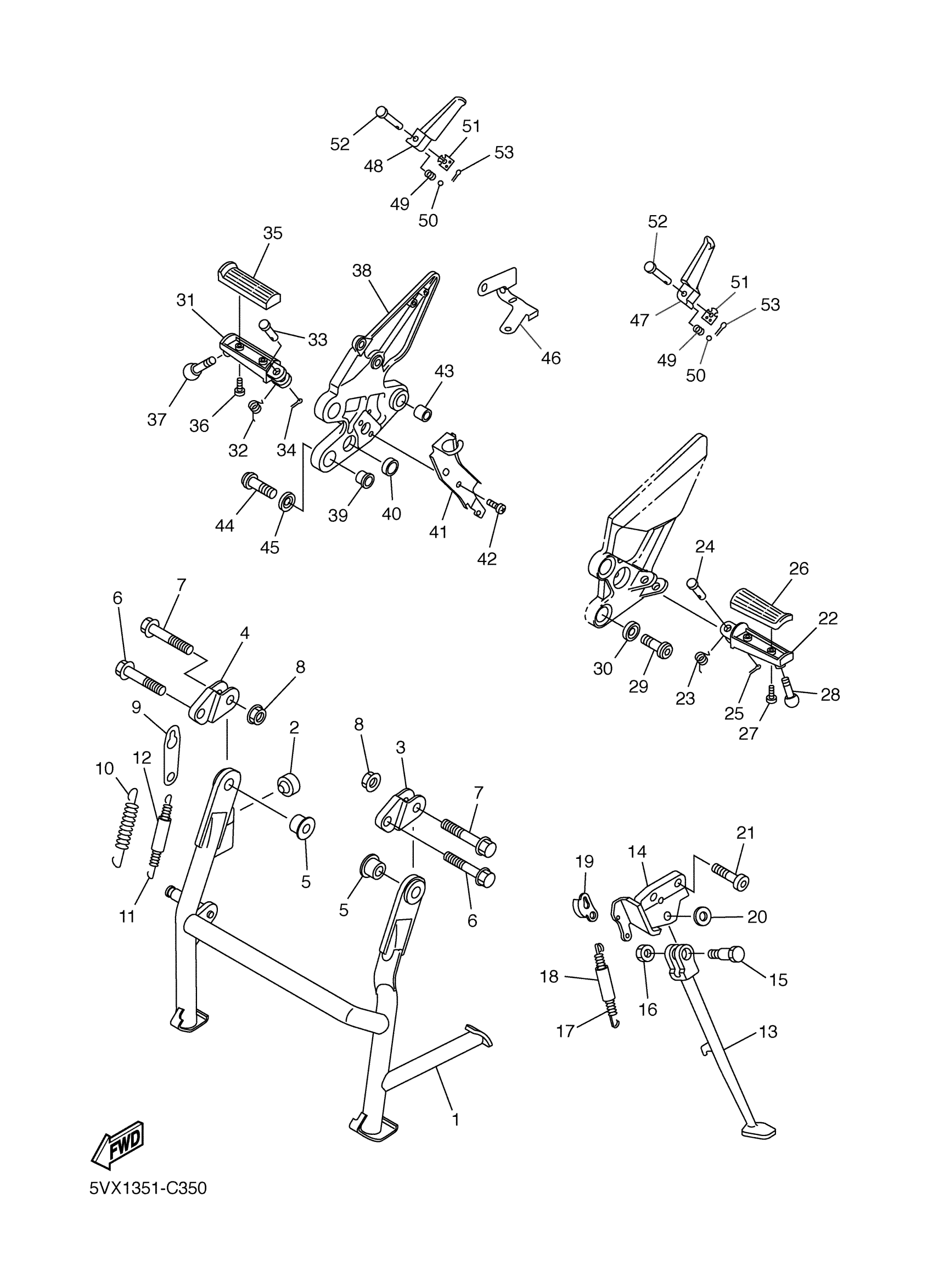

Yamaha FZ600SSC (FZ6 CA) 5VX4 2004 STAND FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

5VX-27111-03-00

Unavailable

2

STOPPER, MAIN STAND

4GL-27114-00-00

Unavailable

3

BRACKET, MAIN STAND

5VX-27151-02-00

Unavailable

4

BRACKET, MAIN STAND 2

5VX-27152-02-00

Unavailable

5

COLLAR, MAIN STAND

5VX-27113-00-00

Unavailable

6

BOLT, FLANGE

90105-10083-00

Unavailable

7

BOLT, FLANGE

90105-10091-00

$5.60

8

NUT, FLANGE(8AB)

95707-10500-00

$3.18

9

LINK, MAIN STAND

5VX-27115-00-00

Unavailable

10

SPRING, TENSION

90506-50001-00

Unavailable

11

SPRING, TENSION

90506-26008-00

$10.49

12

HOSE (L0)

90445-170K9-00

$7.49

13

STAND, SIDE

5VX-27311-01-00

Unavailable

14

BRACKET, SIDE STAND

5VX-27321-02-00

Unavailable

15

BOLT

90109-10012-00

$4.35

16

NUT, U

90185-10037-00

Unavailable

17

SPRING, TENSION

90506-23007-00

Unavailable

18

GUIDE, SIDE STAND

5VX-27351-00-00

Unavailable

19

LINK, SIDE STAND

5VX-27315-00-00

Unavailable

20

WASHER, PLATE

90201-12021-00

Unavailable

21

BOLT, SOCKET

91317-10030-00

Unavailable

22

FOOTREST

4BH-27451-01-00

Unavailable

23

SPRING, TORSION (22N)

90508-20572-00

Unavailable

24

PIN, CLEVIS

91702-08040-00

Unavailable

25

PIN, COTTER

91490-25020-00

Unavailable

26

COVER, FOOTREST

3YX-27413-00-00

Unavailable

27

SCREW, PAN HEAD

98507-05014-00

Unavailable

28

BOLT

90109-08177-00

Unavailable

29

BOLT (3XF1)

90110-08220-00

Unavailable

30

WASHER(1UF)

90209-08295-00

Unavailable

31

FOOTREST

4BH-27461-01-00

Unavailable

32

SPRING, TORSION (22N)

90508-20572-00

Unavailable

33

PIN, CLEVIS

91702-08040-00

Unavailable

34

PIN, COTTER

91490-25020-00

Unavailable

35

COVER, FOOTREST

3YX-27413-00-00

Unavailable

36

SCREW, PAN HEAD

98507-05014-00

Unavailable

37

BOLT

90109-08177-00

Unavailable

38

BRACKET 3

99999-04086-00

Unavailable

39

DAMPER, FOOTREST 2

5VX-27424-00-00

Unavailable

40

STOPPER, MAIN STAND

5VX-27114-00-00

Unavailable

41

STAY, STOP SWITCH

5VX-2144G-00-00

Unavailable

42

SCREW, PAN

98517-06008-00

Unavailable

43

BUSH, FORMED

90383-14001-00

Unavailable

44

BOLT (3XF1)

90110-08220-00

Unavailable

45

WASHER(1UF)

90209-08295-00

Unavailable

46

HOLDER, BREAK HOSE

5VX-2587A-00-00

Unavailable

47

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

48

FOOTREST, REAR 2

3VR-27441-02-00

Unavailable

49

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

50

BALL

93501-04011-00

Unavailable

51

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

52

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

53

PIN, COTTER

91490-25020-00

Unavailable
