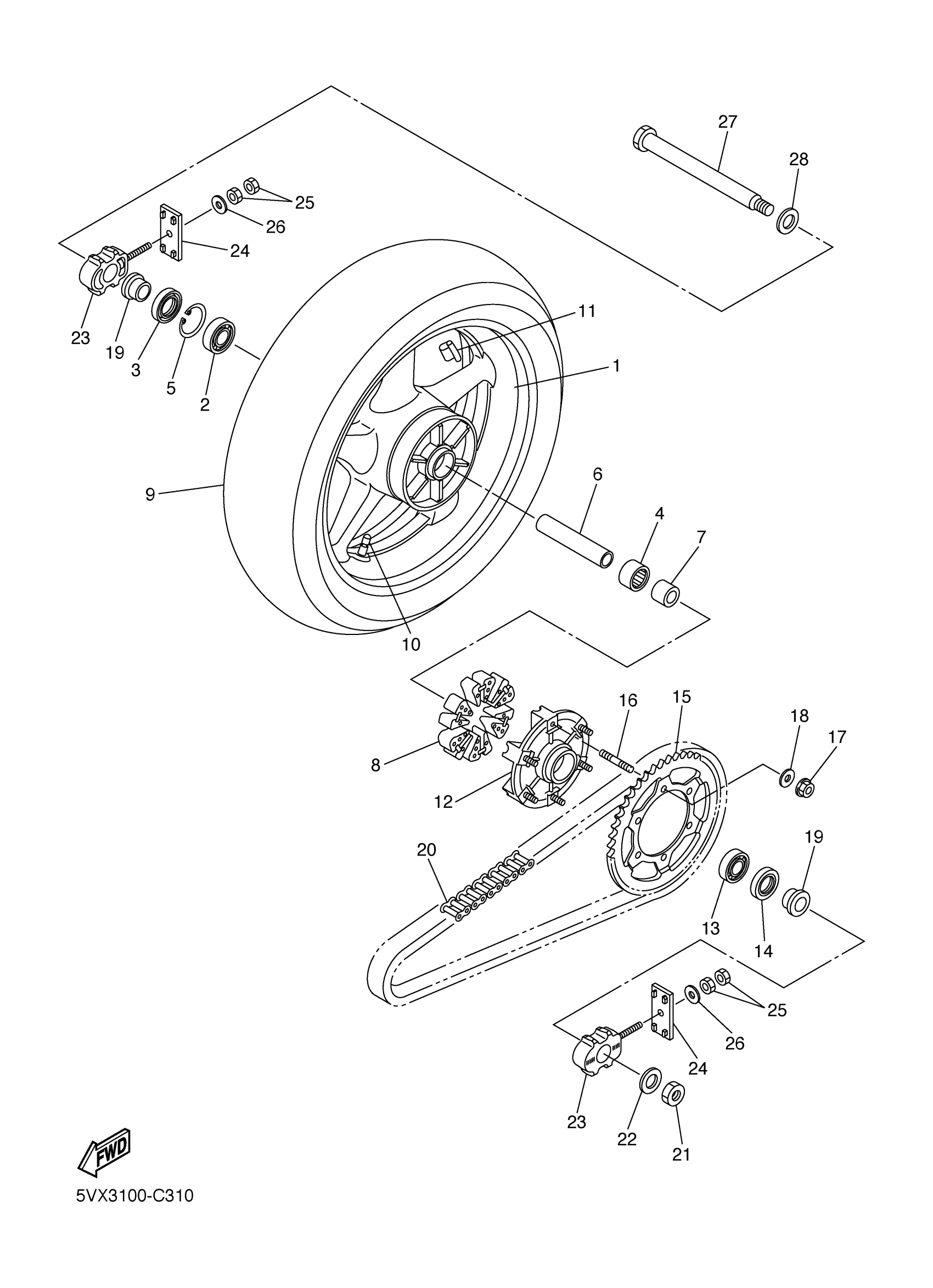

Yamaha FZ600SSC (FZ6 CA) 5VX4 2004 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5SL-25338-00-35

Unavailable

2

BEARING(3JN)

93306-20531-00

$50.99

3

OIL SEAL

93106-40013-00

$14.99

4

BEARING

93317-43580-00

$73.99

5

CIRCLIP

93420-61M07-00

Unavailable

6

SPACER, BEARING

4XV-25317-00-00

$40.99

7

COLLAR, WHEEL

5SL-25383-00-00

$49.99

8

DAMPER

5VX-25364-00-00

Unavailable

9

TIRE(180/55ZR17M/C 73W BT020R)

94118-17041-00

Unavailable

9

TIRE (180/55ZR17M/C 73W D252)

94118-17053-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5SL-25366-00-00

$275.99

13

BEARING(3JN)

93306-20531-00

$50.99

14

OIL SEAL

93106-40013-00

$14.99

15

SPROCKET, DRIVEN

5VX-25446-01-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING

90185-10009-00

Unavailable

18

WASHER, PLATE

90201-10021-00

Unavailable

19

COLLAR

90387-28019-00

Unavailable

20

CHAIN

94582-11118-00

Unavailable

21

NUT, SELF-LOCKING

90185-24007-00

Unavailable

22

WASHER, PLATE

90201-25015-00

Unavailable

23

PULLER, CHAIN 1

5VX-25388-02-00

Unavailable

24

PULLER, CHAIN 2

2GH-25389-00-00

Unavailable

25

NUT(6TA)

95337-08600-00

Unavailable

26

WASHER(6TC)

92907-08200-00

Unavailable

27

AXLE, WHEEL

5VX-25381-10-00

Unavailable

28

WASHER, PLATE

90201-28018-00

Unavailable
