Description

Price

1

REAR ARM COMP.

5VX-22110-00-00

Unavailable

2

BUSH

5EB-22184-00-00

$81.99

3

BRG,CYL-CAL ROLLER 46.8G NT

93315-42523-00

$30.99

4

COVER, THRUST 1

5JJ-22128-00-00

$35.99

5

SEAL, GUARD

5VX-22151-00-00

$47.99

6

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

7

COLLAR

90387-06106-00

$7.49

8

SHAFT, PIVOT

4FN-22141-00-00

$100.99

9

NUT, SELF-LOCKING

90185-18009-00

$18.99

10

WASHER, PLATE (5K7)

90201-18264-00

$8.49

11

REAR FENDER COMP.

5VX-21650-01-00

$61.99

12

COLLAR

90387-06107-00

$8.49

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER(6TA)

92907-06600-00

$2.72

15

RIVET

90269-08001-00

$4.77

16

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

17

PLATE, EPA 2 (CALIFORNIA)

5VX-2179R-00-00

Unavailable

17

PLATE, EPA 1 (NON CALIFORNIA)

5VX-2179V-00-00

Unavailable

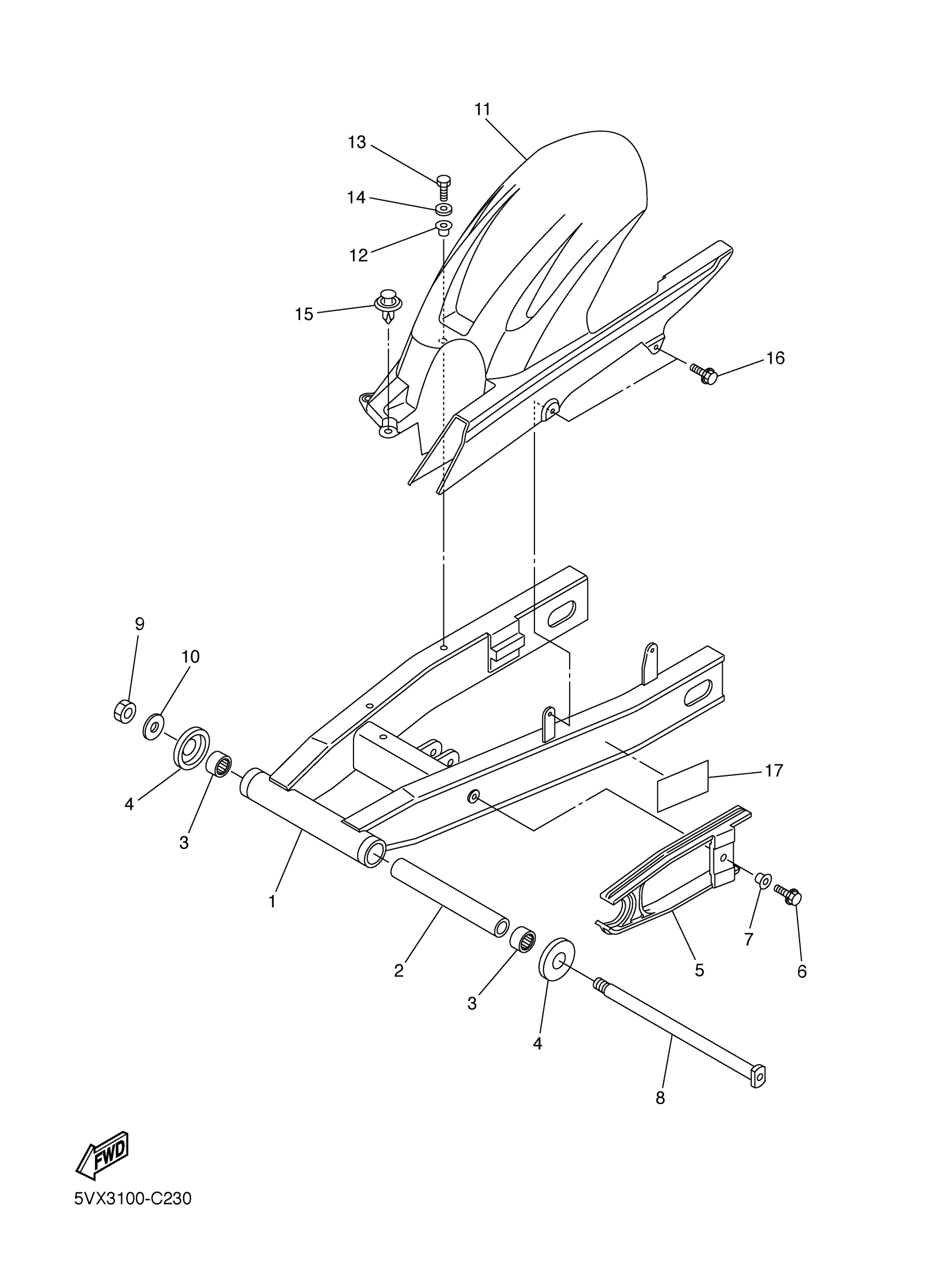

Yamaha FZ600SSC (FZ6 CA) 5VX4 2004 REAR ARM Diagram

REAR ARM COMP.

BUSH

BRG,CYL-CAL ROLLER 46.8G NT

COVER, THRUST 1

SEAL, GUARD

BOLT, WITH WASHER (30X)

COLLAR

SHAFT, PIVOT

NUT, SELF-LOCKING

WASHER, PLATE (5K7)

REAR FENDER COMP.

COLLAR

BOLT, HEXAGON

WASHER(6TA)

RIVET

BOLT, WITH WASHER(55K)

PLATE, EPA 2 (CALIFORNIA)

PLATE, EPA 1 (NON CALIFORNIA)
