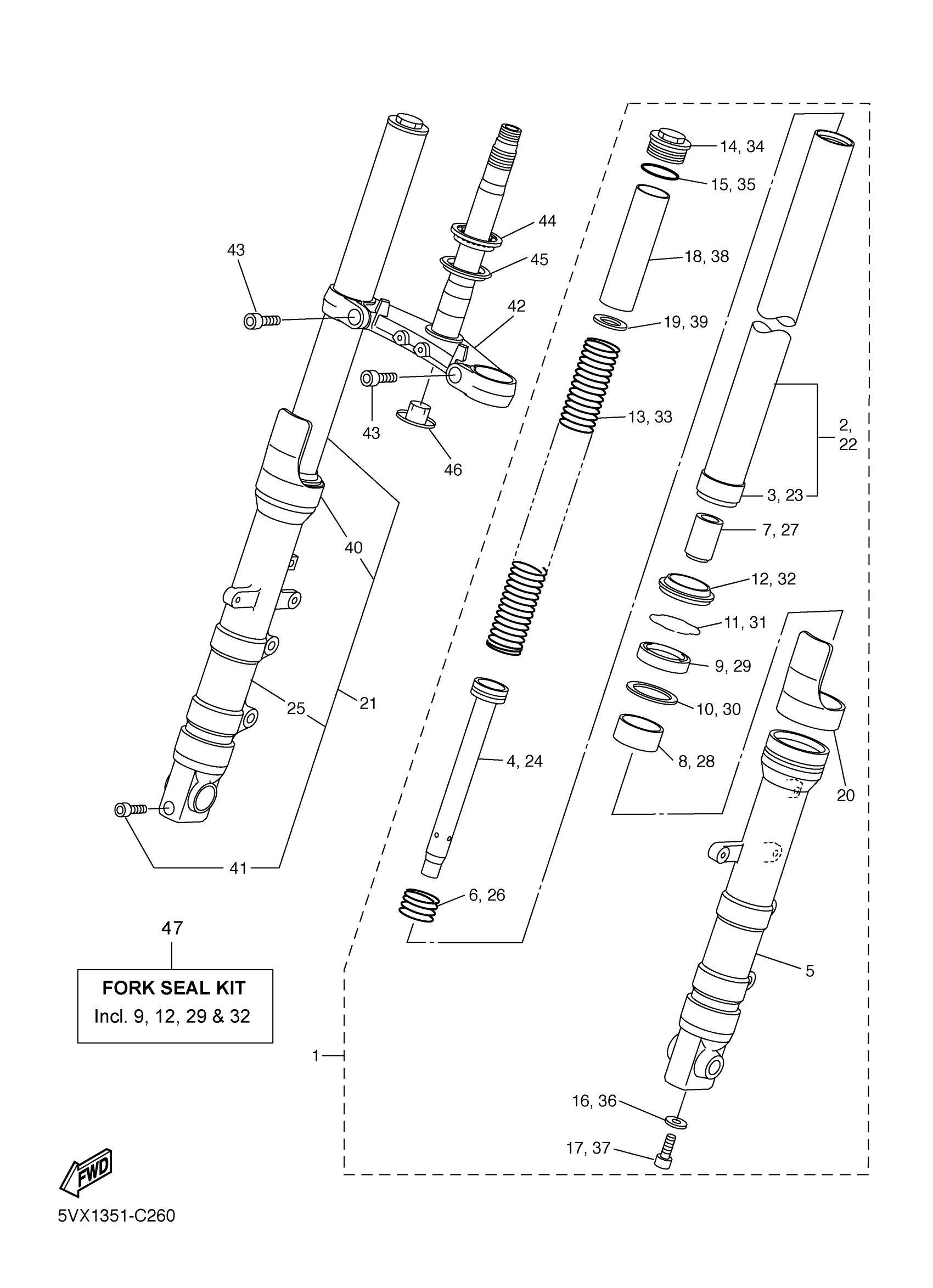

Yamaha FZ600SSC (FZ6 CA) 5VX4 2004 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5VX-23102-00-00

Unavailable

2

INNER TUBE COMP.1

4S8-23110-00-00

Unavailable

3

METAL, SLIDE 2

4TX-23135-B0-00

$20.99

4

CYLINDER COMP., FRONT FORK

5VX-23170-00-00

Unavailable

5

TUBE, OUTER (LEFT)

5VX-23126-00-00

Unavailable

6

SPRING, REBOUND

4TX-23151-00-00

Unavailable

7

. SPINDLE, TAPER

4TX-23173-00-00

Unavailable

8

METAL, SLIDE 1

4TX-23125-B0-00

$18.49

9

OIL SEAL

5VX-23145-00-00

Unavailable

10

GUIDE, COVER UPPER

4TX-23115-00-00

Unavailable

11

CLIP, OIL SEAL

4TX-23156-00-00

$9.99

12

SEAL, DUST

4TX-23144-01-00

$23.99

12

SEAL, DUST

4TX-23144-01-00

$23.99

13

SPRING, FRONT FORK

5VX-23141-00-00

$47.99

14

. FORK BOLT

5VX-2311H-00-00

Unavailable

15

O-RING (21A)

93210-34633-00

Unavailable

16

GASKET (5R6)

90430-10171-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

Unavailable

18

SPACER

5VX-23118-00-00

Unavailable

19

. WASHER, PLATE

90201-231E1-00

Unavailable

20

COVER

4TX-2331G-00-00

Unavailable

21

FRONT FORK ASSY (R.H)

5VX-23103-01-00

Unavailable

22

INNER TUBE COMP.1

4S8-23110-00-00

Unavailable

23

METAL, SLIDE 2

4TX-23135-B0-00

$20.99

24

CYLINDER COMP., FRONT FORK

5VX-23170-00-00

Unavailable

25

TUBE, OUTER (RIGHT)

5VX-23136-01-00

Unavailable

26

SPRING, REBOUND

4TX-23151-00-00

Unavailable

27

. SPINDLE, TAPER

4TX-23173-00-00

Unavailable

28

METAL, SLIDE 1

4TX-23125-B0-00

$18.49

29

OIL SEAL

5VX-23145-00-00

Unavailable

30

GUIDE, COVER UPPER

4TX-23115-00-00

Unavailable

31

CLIP, OIL SEAL

4TX-23156-00-00

$9.99

32

SEAL, DUST

4TX-23144-01-00

$23.99

32

SEAL, DUST

4TX-23144-01-00

$23.99

33

SPRING, FRONT FORK

5VX-23141-00-00

$47.99

34

. FORK BOLT

5VX-2311H-00-00

Unavailable

35

O-RING (21A)

93210-34633-00

Unavailable

36

GASKET (5R6)

90430-10171-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

Unavailable

38

SPACER

5VX-23118-00-00

Unavailable

39

. WASHER, PLATE

90201-231E1-00

Unavailable

40

COVER

4TX-2331G-00-00

Unavailable

41

BOLT,SOCKET

91314-08045-00

Unavailable

42

UNDER BRACKET COMP.

5VX-23340-00-00

Unavailable

43

BOLT, SOCKET

91317-10025-00

Unavailable

44

BEARING(3FV)

93399-99932-00

Unavailable

45

SEAL, STEERING

3FV-23462-00-00

Unavailable

46

COVER, LOWER 1

4KM-23123-01-00

Unavailable

47

FORK SEAL KIT

5XV-W003B-00-00

Unavailable
