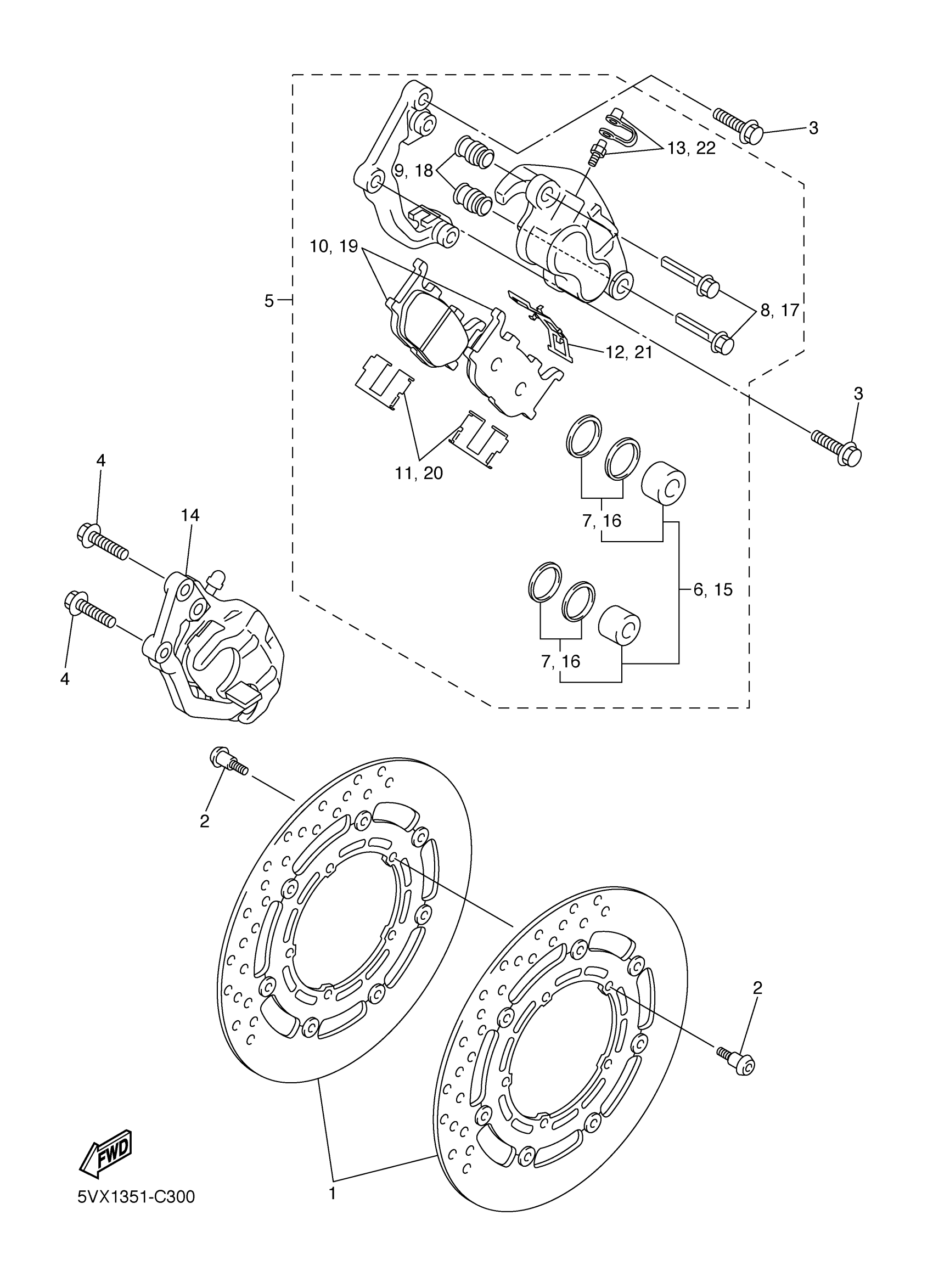

Yamaha FZ600SSC (FZ6 CA) 5VX4 2004 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

5VX-2581T-01-00

$424.99

2

BOLT

90109-06254-00

$8.49

3

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

4

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

5

CALIPER ASSY (LEFT)

5VX-2580T-00-00

Unavailable

6

PISTON ASSY, CALIPER

5KS-25802-00-00

$69.99

7

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

8

PIN, SLIDE

5JW-25914-10-00

$22.99

9

BOOT 2

4TT-25937-00-00

$16.49

10

BRAKE PAD KIT

5VX-W0045-00-00

$51.99

11

SUPPORT, PAD

4BP-25919-00-00

$44.99

12

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

13

BLEED SCREW KIT

15B-W0048-00-00

$19.99

14

CALIPER ASSY (RIGHT)

5VX-2580U-00-00

Unavailable

15

PISTON ASSY, CALIPER

5KS-25802-00-00

$69.99

16

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

17

PIN, SLIDE

5JW-25914-10-00

$22.99

18

BOOT 2

4TT-25937-00-00

$16.49

19

BRAKE PAD KIT

5VX-W0045-00-00

$51.99

20

SUPPORT, PAD

4BP-25919-00-00

$44.99

21

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

22

BLEED SCREW KIT

15B-W0048-00-00

$19.99
