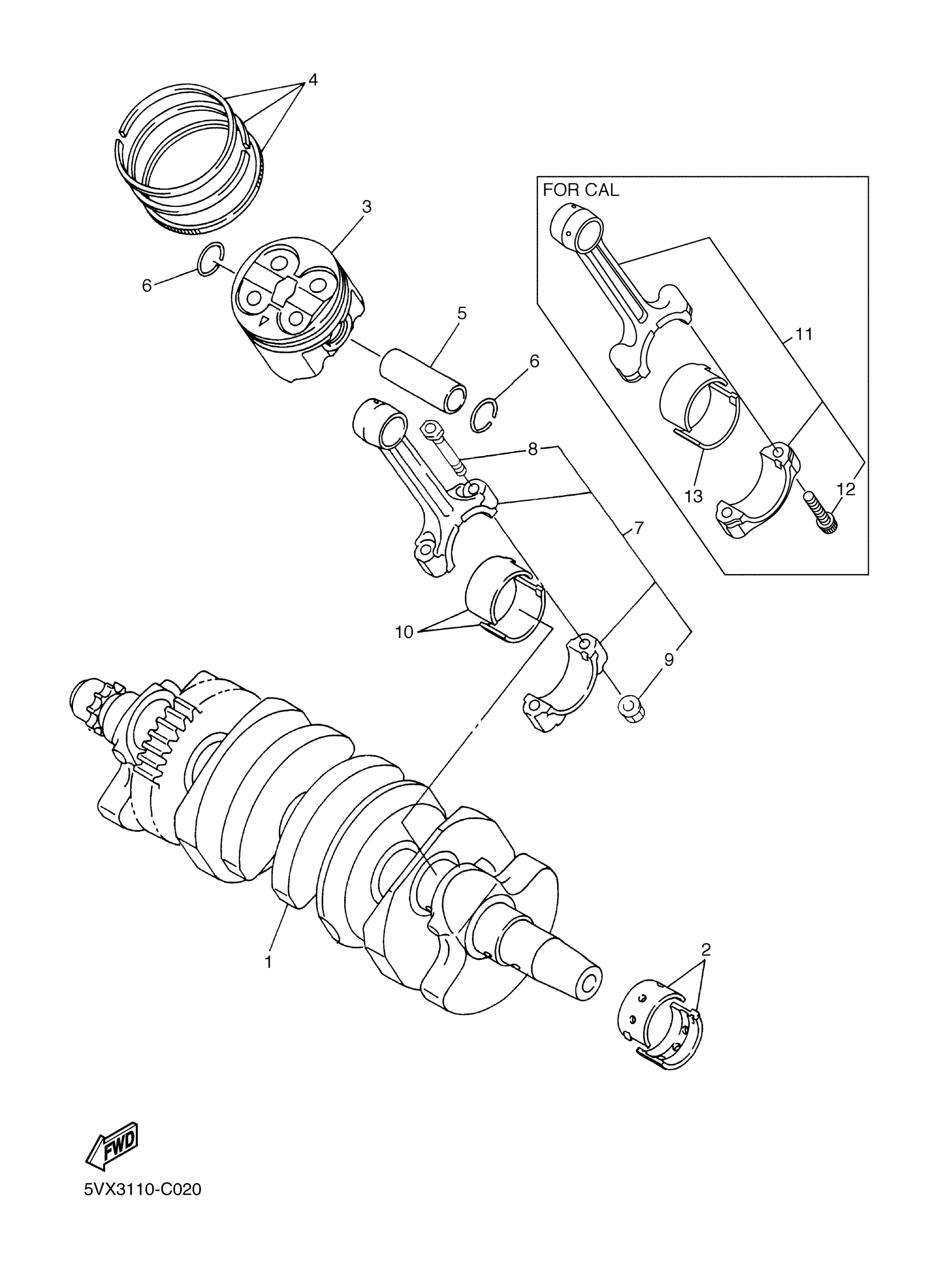

Yamaha FZ600SSC (FZ6 CA) 5VX4 2004 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

5SL-11411-00-00

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

5EB-11416-00-00

$21.32

2

PLANE BEARING, CRANKSHAFT 1

5EB-11416-10-00

$21.16

2

PLANE BEARING, CRANKSHAFT 1

5EB-11416-20-00

$21.07

2

PLANE BEARING, CRANKSHAFT 1

5EB-11416-30-00

$21.35

2

PLANE BEARING, CRANKSHAFT 1

5EB-11416-A0-00

Unavailable

3

PISTON (STD)

5SL-11631-00-00

$104.47

4

PISTON RING SET (STD)

5SL-11603-00-00

$57.79

5

PIN, PISTON

5EB-11633-00-00

$24.67

6

CIRCLIP(1AR)

93450-17129-00

$2.72

7

CONNECTING ROD ASSY

5SL-11650-00-00

$234.12

8

BOLT, CONNECTING ROD

5SL-11654-00-00

$10.11

9

NUT(4JH)

90179-07652-00

$6.17

10

PLANE BEARING, CONNECTING ROD

5SL-11656-00-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

5SL-11656-10-00

$14.39

10

PLANE BEARING, CONNECTING ROD

5SL-11656-20-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

5SL-11656-30-00

Unavailable

11

CONNECTING ROD ASSY

5VX-11650-00-00

Unavailable

12

BOLT, CONNECTING ROD

5VX-11654-00-00

Unavailable

13

PLANE BEARING, CONNECTING ROD

5VX-11656-00-00

Unavailable

13

PLANE BEARING, CONNECTING ROD

5VX-11656-10-00

Unavailable

13

PLANE BEARING, CONNECTING ROD

5VX-11656-20-00

Unavailable

13

PLANE BEARING, CONNECTING ROD

5VX-11656-30-00

Unavailable
