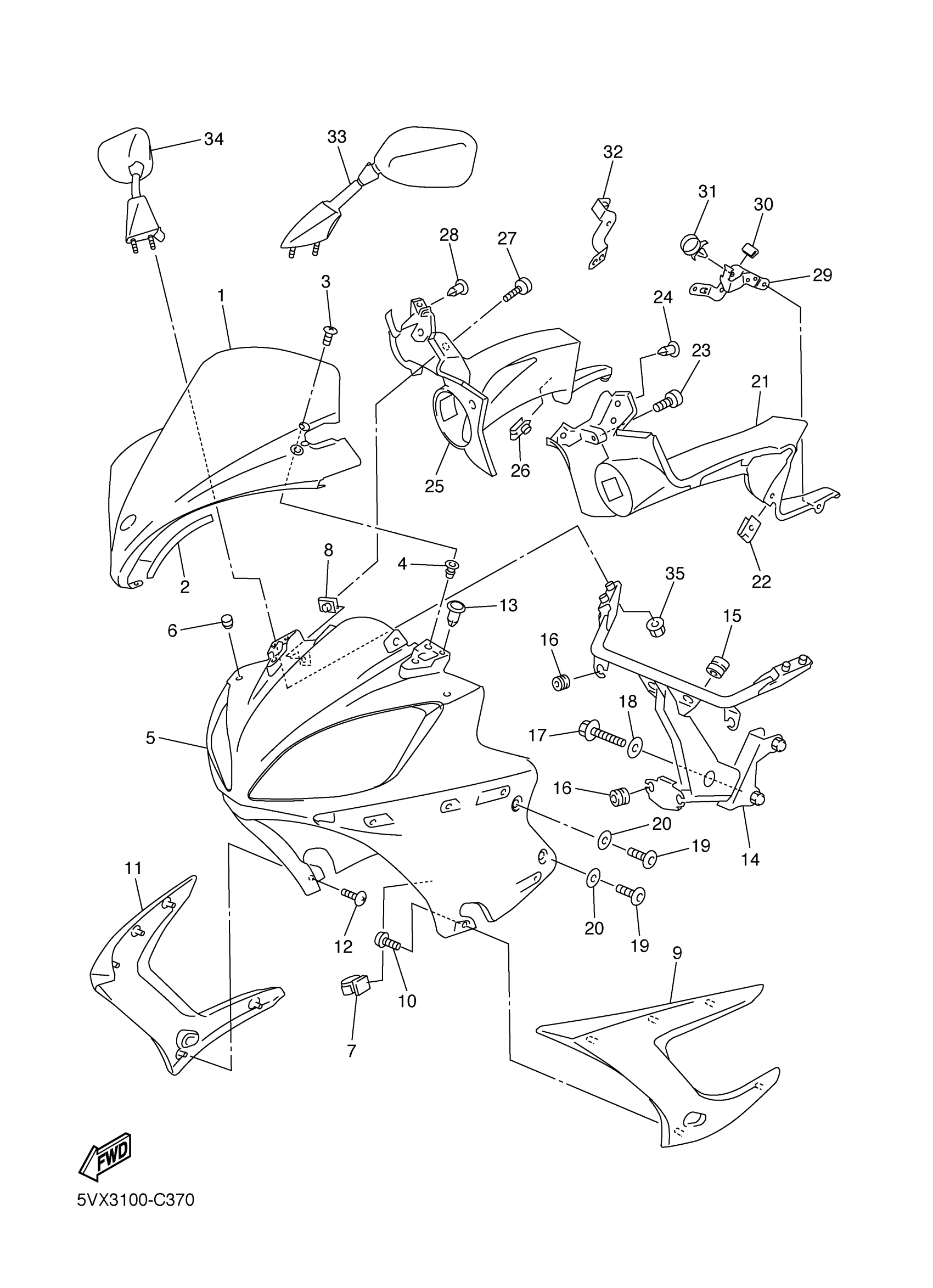

Yamaha FZ600SSC (FZ6 CA) 5VX4 2004 COWLING 1 Diagram
#
1
WINDSHIELD
5VX-28381-31-00
Unavailable
2
TRIM
5VX-28376-00-00
Unavailable
5
BODY, FRONT UPPER 1
5VX-2835G-11-00
Unavailable
8
NUT, SPRING(3YX)
90183-05074-00
Unavailable
9
VISOR, SIDE 1
5VX-2830C-00-P0
Unavailable
11
VISOR SIDE 2
5VX-2830D-01-P0
Unavailable
11
VISOR, SIDE 2
5VX-2830D-01-P1
Unavailable
13
RIVET(52W)
90269-05049-00
Unavailable
14
STAY 1
5VX-28356-00-00
Unavailable
15
GROMMET(3GM)
90480-14585-00
Unavailable
16
GROMET (3X3)
90480-14229-00
Unavailable
17
BOLT, FLANGE
95817-08040-00
Unavailable
18
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
20
WASHER, PLATE
90202-06170-00
Unavailable
21
PANEL, INNER 1
5VX-2836K-01-00
Unavailable
21
PANEL, INNER 1
5VX-2836K-11-00
Unavailable
22
NUT, SPRING(4ES)
90183-06069-00
Unavailable
23
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
24
RIVET(52W)
90269-05049-00
Unavailable
25
PANEL, INNER 2
5VX-2836L-01-00
Unavailable
25
PANEL, INNER 2
5VX-2836L-11-00
Unavailable
26
NUT, SPRING(4ES)
90183-06069-00
Unavailable
27
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
28
RIVET(52W)
90269-05049-00
Unavailable
29
BRACKET 3
5VX-2836F-00-00
Unavailable
30
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
31
CLAMP
90464-16006-00
Unavailable
32
BRACKET 2
5VX-2836E-01-00
Unavailable
33
REAR VIEW MIRROR ASSY (LEFT
5VX-26280-01-00
Unavailable
34
REAR VIEW MIRROR ASSY (RIGHT)
5VX-26290-01-00
Unavailable
35
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
