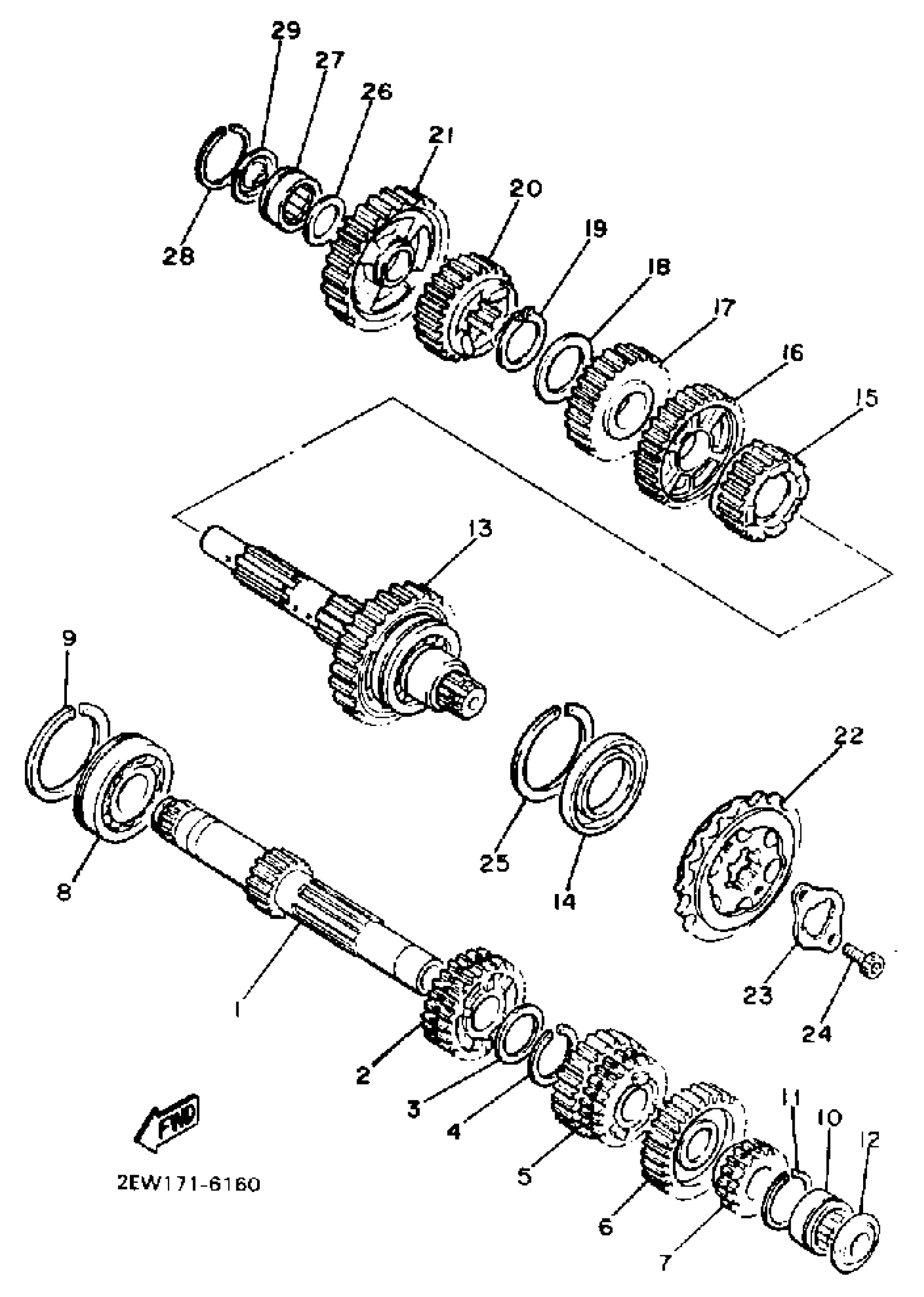

Yamaha FZ600SC (FZ600S CA) 1986 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

4G0-17411-00-00

Unavailable

2

GEAR, 5TH PINION (28T)

4U8-17151-01-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$5.53

4

CIRCLIP (4L0)

93440-25084-00

$4.05

5

GEAR, 3RD PINION (22/25T)

4U8-17131-00-00

Unavailable

6

GEAR, 6TH PINION (30T)

4U8-17161-00-00

Unavailable

7

GEAR, 2ND PINION

4U8-17121-01-00

Unavailable

8

BRG,R-B 6305 62MM 225G NK

93306-30504-00

$54.20

9

CIRCLIP

278-17424-01-00

$17.62

10

BEARING, CYL.#11

93311-42045-00

$27.80

11

CIR CLIP

278-17425-00-00

$7.16

12

NOZZLE

4G0-17433-01-00

Unavailable

13

DRIVE AXLE ASSEMBLY

46X-17402-00-00

Unavailable

14

OIL SEAL (35X62X6-371)

93102-35109-00

$20.85

15

GEAR,6TH WHEEL

4G0-17261-01-00

Unavailable

16

GEAR, 3RD WHEEL

4G0-17231-01-00

Unavailable

17

GEAR, 4TH WHEEL

4G0-17241-01-00

Unavailable

18

WASHER (3J3)

90209-22191-00

$5.53

19

CIRCLIP (4L0)

93440-25084-00

$4.05

20

GEAR, 5TH WHEEL (29T)

12R-17251-00-00

Unavailable

21

GEAR, 1ST WHEEL (41T)

4G0-17211-00-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK (16T) (49A-17461-61)

49A-17460-01-00

Unavailable

23

HOLDER, SPROCKET

3Y1-17456-00-00

Unavailable

24

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

25

CIRCLIP

278-17424-01-00

$17.62

26

WASHER PLATE 328171160000

90201-20276-00

Unavailable

27

BEARING, CYL.#11

93311-42045-00

$27.80

28

CIR CLIP

278-17425-00-00

$7.16

29

NOZZLE

4G0-17433-01-00

Unavailable
