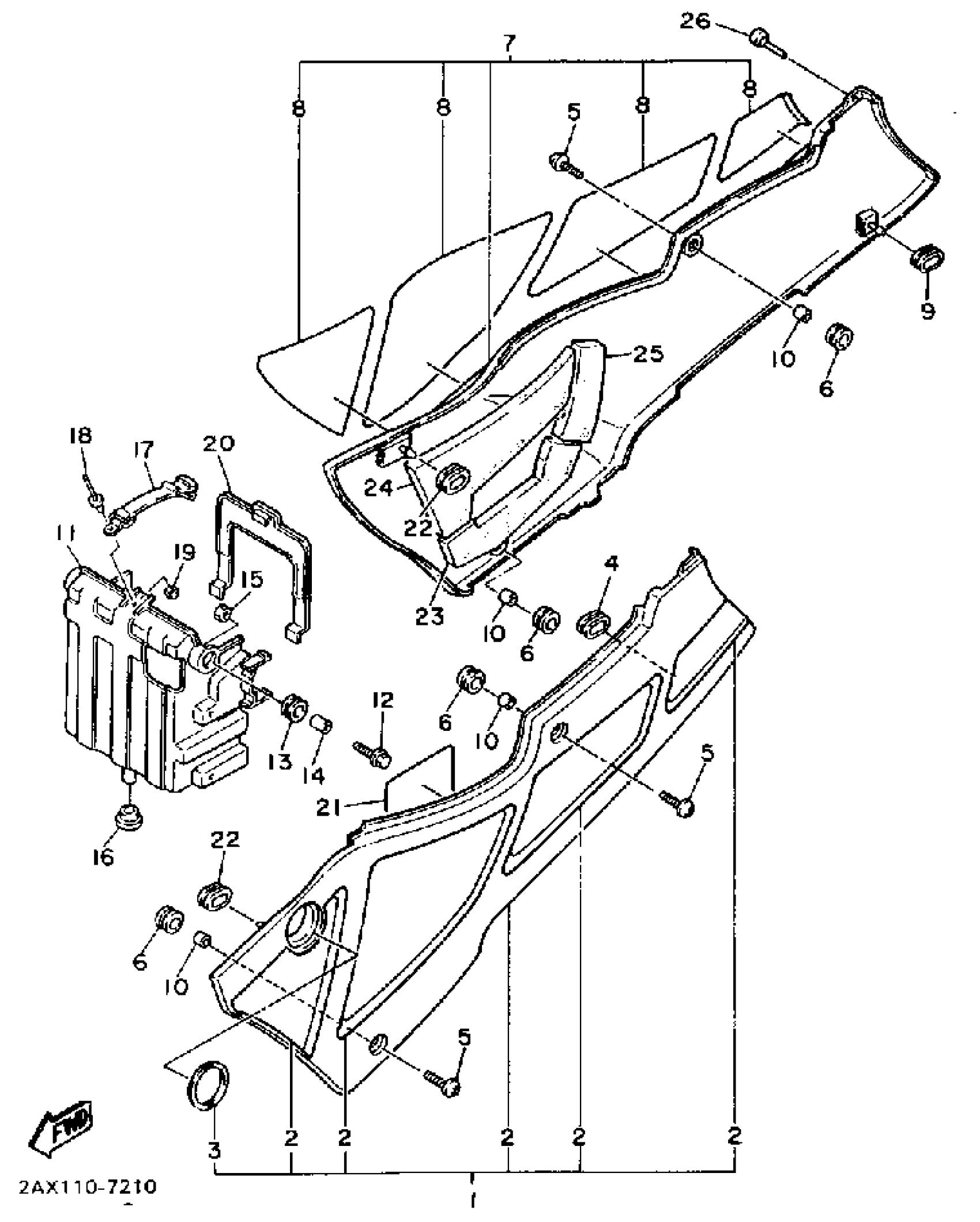

Yamaha FZ600SC (FZ600S CA) 1986 SIDE COVER FZ600T TC Diagram

#

Description
Price

1

COVER SIDE 1

2AX-Y2171-11-GE

Unavailable

2

. GRAPHIC SET 1

2AX-2173L-00-00

Unavailable

3

. GRAPHIC, CHANGE LEV

46X-24591-00-00

Unavailable

4

GROMMET

90480-22084-00

$7.49

5

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

6

GROMMET(3AK)

90480-18495-00

$9.49

7

COVER, SIDE 2

2AX-Y2172-01-GE

Unavailable

8

. GRAPHIC SET 2

2AX-2174L-00-00

Unavailable

9

GROMMET

90480-22084-00

$7.49

10

COLLAR

90387-117L8-00

Unavailable

11

BOX

46X-21170-00-00

Unavailable

12

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

13

GROMMET (2N3)

90480-16233-00

$8.49

14

COLLAR

90387-06113-00

$11.49

15

NUT(650)

95380-06700-00

$8.49

16

GROMMET

90480-23192-00

Unavailable

17

BAND, TOOL

33M-21376-00-00

Unavailable

18

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

19

WASHER(6E1)

92907-04200-00

Unavailable

20

HOOK, BANK

46X-2175R-00-00

Unavailable

21

PLATE, SPECIFICATION

2AX-21683-70-00

Unavailable

21

PLATE, SPECIFICATION

2AY-21687-70-00

Unavailable

22

GROMMET 654427240000

90480-14074-00

Unavailable

23

DAMPER

46X-21746-00-00

Unavailable

24

DAMPER

46X-21747-00-00

Unavailable

25

DAMPER

46X-21717-00-00

Unavailable

26

DAMPER 2

(46X-21639-00-00)

Unavailable
