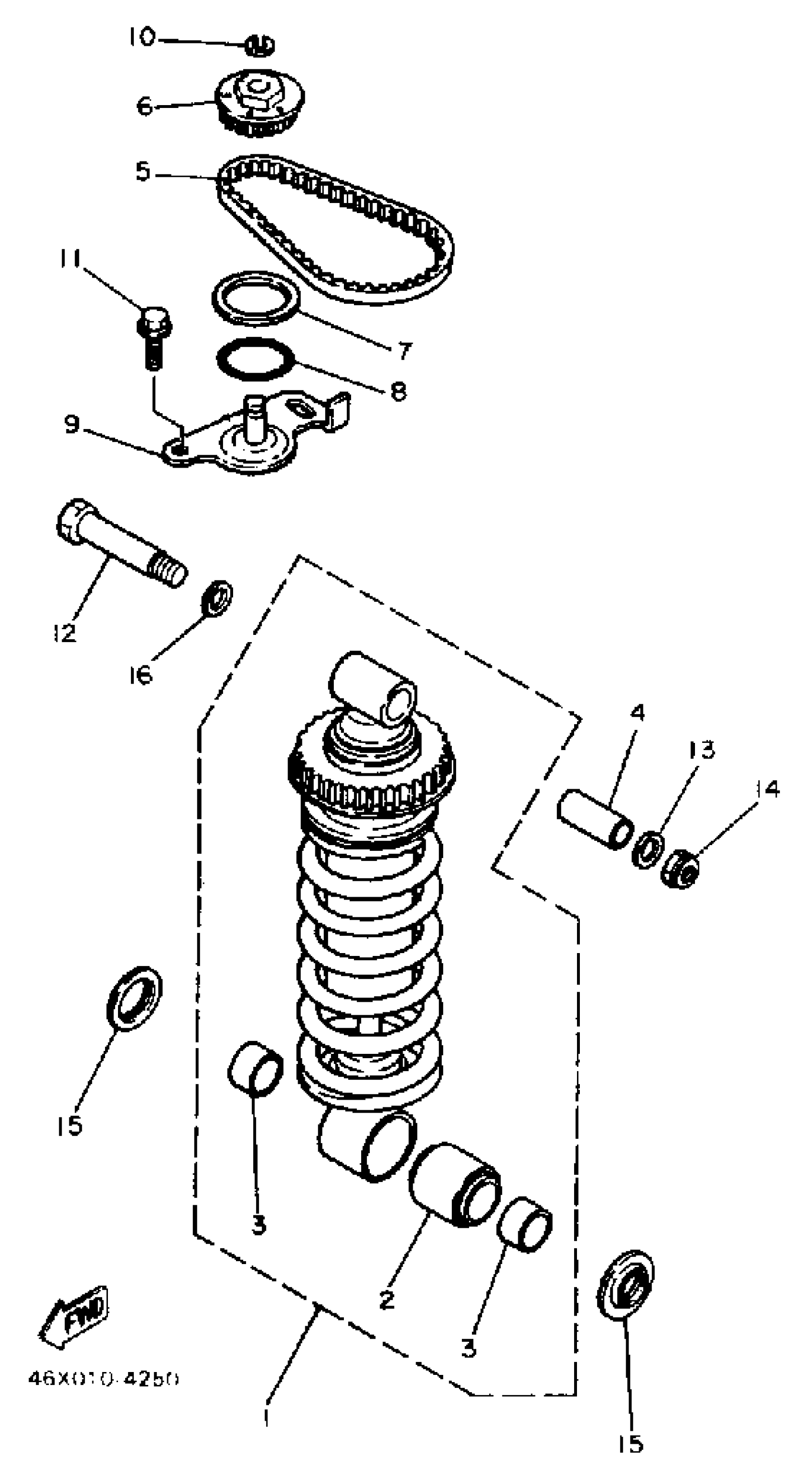

Yamaha FZ600SC (FZ600S CA) 1986 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

51J-22210-00-00

Unavailable

2

. BUSH, RR SHOCK ABS

29L-22216-00-00

Unavailable

3

BUSH, FORMED(1RX)

90383-20033-00

$16.99

4

COLLAR(3FD)

90387-1210W-00

Unavailable

5

BELT, TIMING

29L-22266-01-00

Unavailable

6

PULLEY

29L-22267-00-00

Unavailable

7

WASHER, PLATE

90201-202H3-00

Unavailable

8

O-RING

93210-347A1-00

$7.49

9

BRACKET, PULLEY

46X-22268-00-00

Unavailable

10

CIRCLIP, OUTER

93440-10123-00

Unavailable

11

BOLT, SMALL FLANGE

95027-08020-00

$8.49

12

BOLT (1M1)

90109-10453-00

Unavailable

13

UNAVAILABLE IN PRICE BOOK (90201-10126)

90201-10269-00

Unavailable

14

NUT, U

95617-10100-00

$8.49

15

COVER, DUST

29L-2217H-00-00

Unavailable

16

WASHER, PLATE

90201-12047-00

Unavailable
