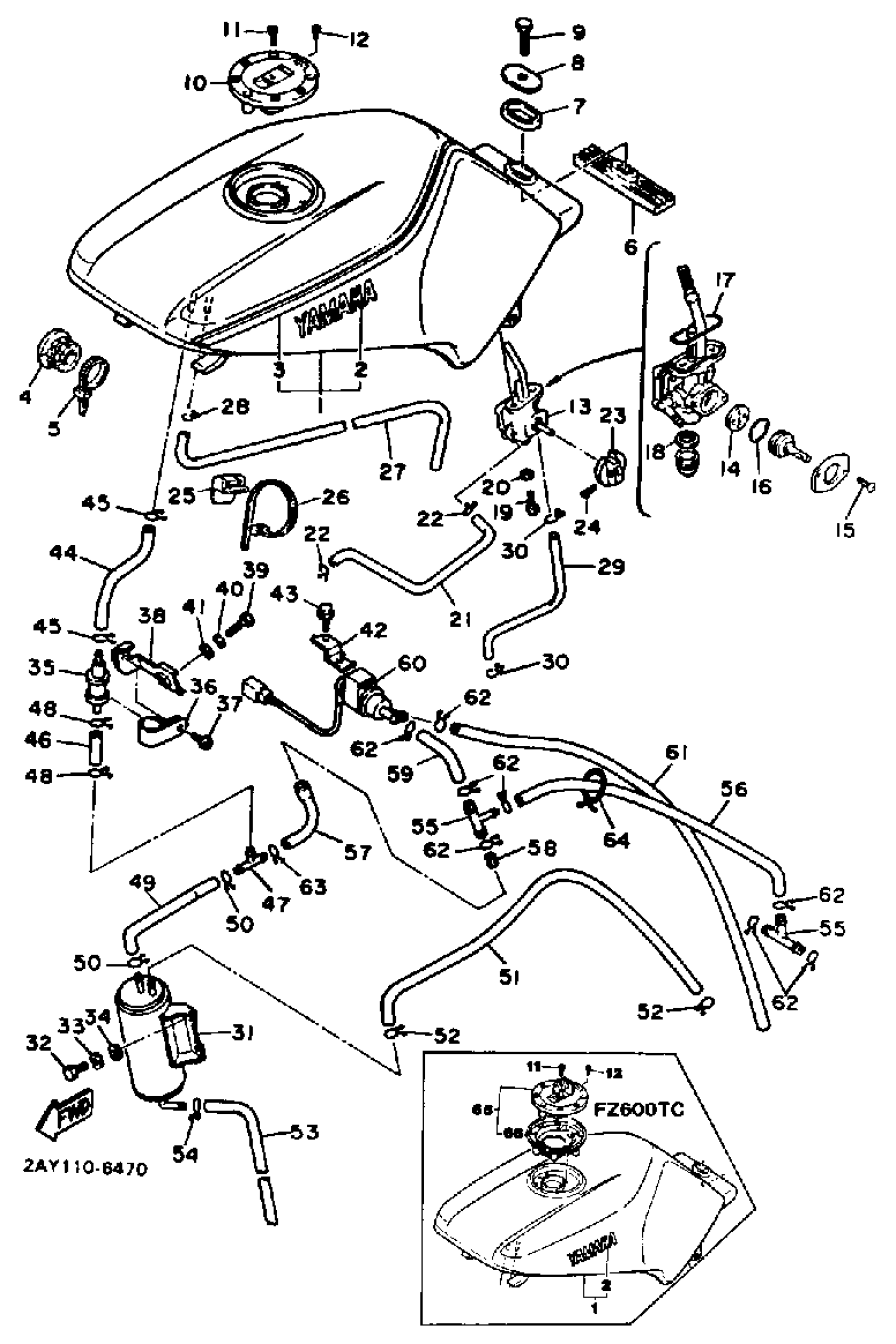

Yamaha FZ600SC (FZ600S CA) 1986 FUEL TANK FZ600SC TC Diagram

#

Description
Price

1

FUEL TANK

2AY-24110-01-01

Unavailable

1

FUEL TANK (2AY-24110-00-01)

2AY-24110-01-02

Unavailable

2

EMBLEM, YAMAHA

99243-00160-00

$12.49

3

. GRAPHIC SET

46X-24240-01-00

Unavailable

4

DAMPER, LOCATING 1

46X-24181-00-00

Unavailable

5

CLAMP

5Y9-12491-00-00

$6.99

6

DAMPER, LOCATING 4

2GH-24184-00-00

Unavailable

7

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

8

WASHER, SPECIAL

12R-24186-00-00

$9.99

9

BOLT, HEXAGON

97013-08030-00

$2.49

10

CAP ASSY

4HM-24602-01-00

$264.99

11

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

12

BOLT, SOCKET

91314-05010-00

$2.55

13

FUEL COCK ASSEMBLY

46X-24500-01-00

Unavailable

14

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

15

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

16

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

17

O-RING

2W6-24512-00-00

Unavailable

18

GASKET

4X8-24565-10-00

Unavailable

19

SCREW 256241430000

90149-06011-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

PIPE, FUEL 1

46X-24311-00-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

LEVER, COCK

1YH-F4524-00-00

Unavailable

24

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

25

DAMPER, LOCATING 2

47X-24182-00-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

PIPE 5

2EL-24315-00-00

Unavailable

28

CLIP

90467-090A2-00

Unavailable

29

HOSE (L770)

90445-090G9-00

Unavailable

30

CLIP (16G)

90467-08021-00

Unavailable

30

CLIP (16G)

90467-08021-00

Unavailable

31

CANISTER ASSEMBLY

2AY-24170-00-00

Unavailable

32

BOLT, HEXAGON

97017-06012-00

Unavailable

33

WASHER, SPRING

92907-06100-00

Unavailable

34

WASHER(6TA)

92907-06600-00

Unavailable

35

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

36

CLAMP

90464-15014-00

Unavailable

37

BOLT, WITH WASHER

90119-05071-00

Unavailable

38

BRACKET, CANISTER

(2AY-2419F-00-00)

Unavailable

39

BOLT, HEXAGON

97017-06025-00

Unavailable

40

WASHER, SPRING

92907-06100-00

Unavailable

41

WASHER(6TA)

92907-06600-00

Unavailable

42

BRACKET

(2AY-2119V-00-00)

Unavailable

43

BOLT, FLANGE

95812-06010-00

Unavailable

44

PIPE 3

(2AY-24313-00-00)

Unavailable

45

CLIP

90467-100A1-00

Unavailable

46

HOSE (L120)

90445-113E8-00

Unavailable

47

PIPE, JOINT

3H3-24376-00-00

Unavailable

48

CLIP

90467-100A1-00

Unavailable

49

PIPE 4

(2AY-24314-00-00)

Unavailable

50

CLIP

90467-100A1-00

Unavailable

51

HOSE

90445-11M71-00

Unavailable

52

CLIP

90467-100A1-00

Unavailable

53

HOSE (L800)

90445-11083-00

Unavailable

53

HOSE (L370)

90445-112E1-00

Unavailable

54

CLIP(1JH)

90467-11106-00

Unavailable

55

WAY 3

90413-11025-00

Unavailable

56

HOSE

(90445-137E4-00)

Unavailable

57

PIPE 1

(2AY-14871-00-00)

Unavailable

58

NOZZLE 1

(1WJ-15138-00-00)

Unavailable

59

PIPE 2

(2AY-14872-00-00)

Unavailable

60

VLV, OUT VENT CON 2

2AY-14896-00-00

Unavailable

61

HOSE

90445-137E5-00

Unavailable

62

CLIP (4X4)

90467-12052-00

Unavailable

63

CLIP

90467-100A1-00

Unavailable

64

CLAMP (8M1)

90464-30040-00

Unavailable

65

CAP ASSY

4HM-24602-01-00

$264.99

66

. COVER, FILLER

1XL-2414A-01-00

Unavailable
