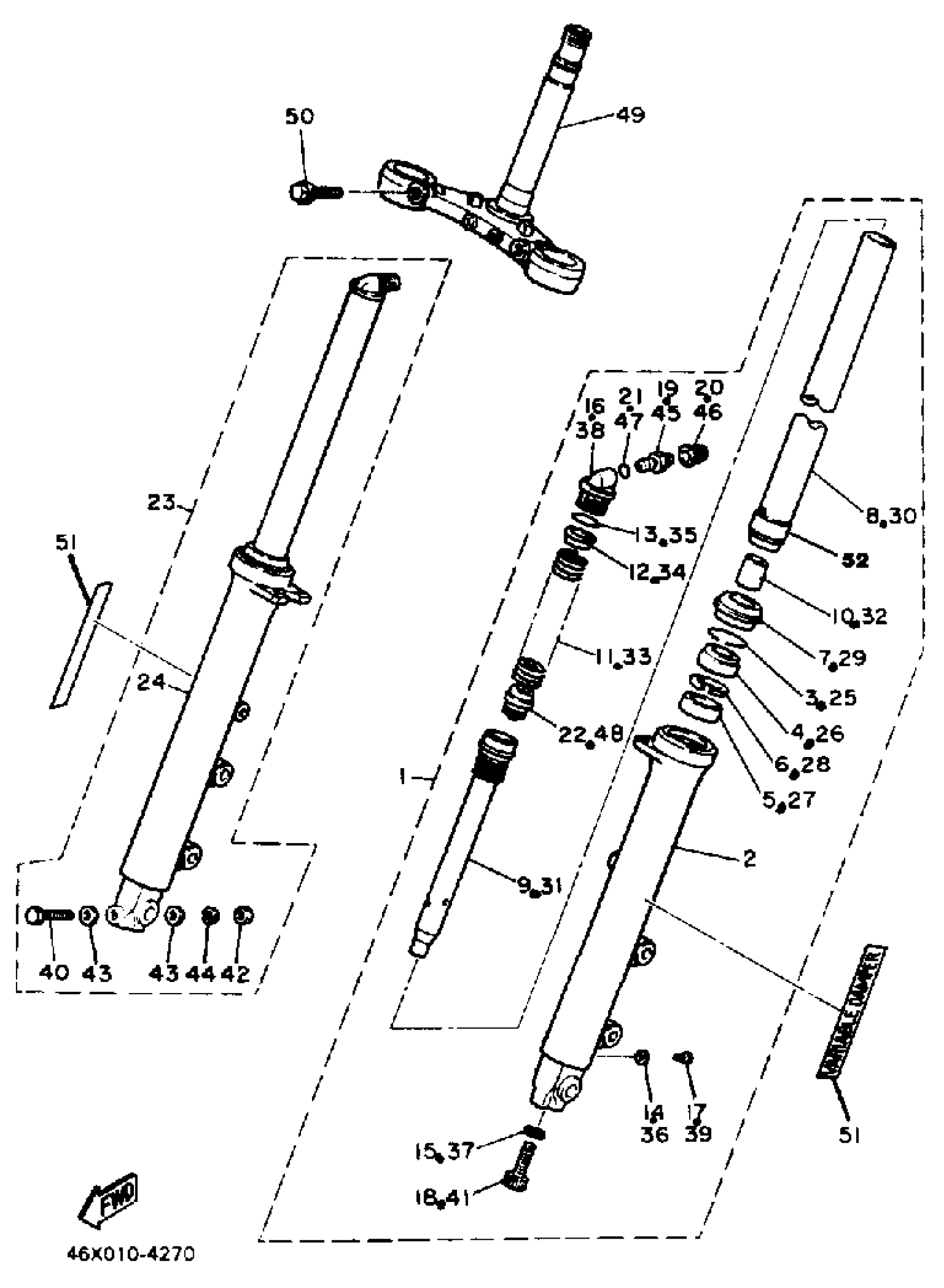

Yamaha FZ600SC (FZ600S CA) 1986 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (L.H.)

2AX-23102-00-00

Unavailable

2

. TUBE, OUTER 1

46X-23126-00-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

OIL SEAL

4ES-23145-00-00

$22.99

5

METAL, SLIDE 1

30X-23125-00-00

$29.99

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

7

SEAL, DUST

33M-23144-00-00

$28.99

8

. INNER TUBE 1

1JK-23110-00-00

Unavailable

9

CYLINDER, FRTFRK

(46X-23170-00-00)

Unavailable

10

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

11

. SPRING, FRONT FORK

46X-23141-00-00

Unavailable

12

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

13

O-RING

1W1-23114-L0-00

$9.99

14

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

15

GASKET

509-23158-L0-00

$16.49

16

. BOLT, CAP

33M-23111-00-00

Unavailable

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

19

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

20

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

21

O-RING

3J2-23147-00-00

Unavailable

22

. TRAVEL CONTROL VLV

46X-23160-00-00

Unavailable

23

FRONT FORK ASSEMBLY R (R.H)

2AX-23103-00-00

Unavailable

24

. TUBE, OUTER 2

46X-23136-00-00

Unavailable

25

RING, SNAP

4A1-23156-00-00

$5.49

26

OIL SEAL

4ES-23145-00-00

$22.99

27

METAL, SLIDE 1

30X-23125-00-00

$29.99

28

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

29

SEAL, DUST

33M-23144-00-00

$28.99

30

. INNER TUBE 1

1JK-23110-00-00

Unavailable

31

CYLINDER, FRTFRK

(46X-23170-00-00)

Unavailable

32

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

33

. SPRING, FRONT FORK

46X-23141-00-00

Unavailable

34

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

35

O-RING

1W1-23114-L0-00

$9.99

36

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

37

GASKET

509-23158-L0-00

$16.49

38

. BOLT, CAP

33M-23111-00-00

Unavailable

39

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

40

BOLT, HEXAGON

97017-08060-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

42

NUT(6TA)

95337-08600-00

Unavailable

43

WASHER(6TA)

92907-08600-00

Unavailable

44

WASHER(JN5)

92907-08100-00

Unavailable

45

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

46

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

47

O-RING

3J2-23147-00-00

Unavailable

48

. TRAVEL CONTROL VLV

46X-23160-00-00

Unavailable

49

UNDER BRACKET

46X-23340-00-00

Unavailable

50

BOLT 2

2NX-23356-00-00

Unavailable

51

EMBLEM

2AY-23108-00-00

Unavailable

51

EMBLEM

46X-23108-00-00

Unavailable

52

PISTON, FRONT FORK

(1JK-BUSHI-NG-00)

Unavailable
