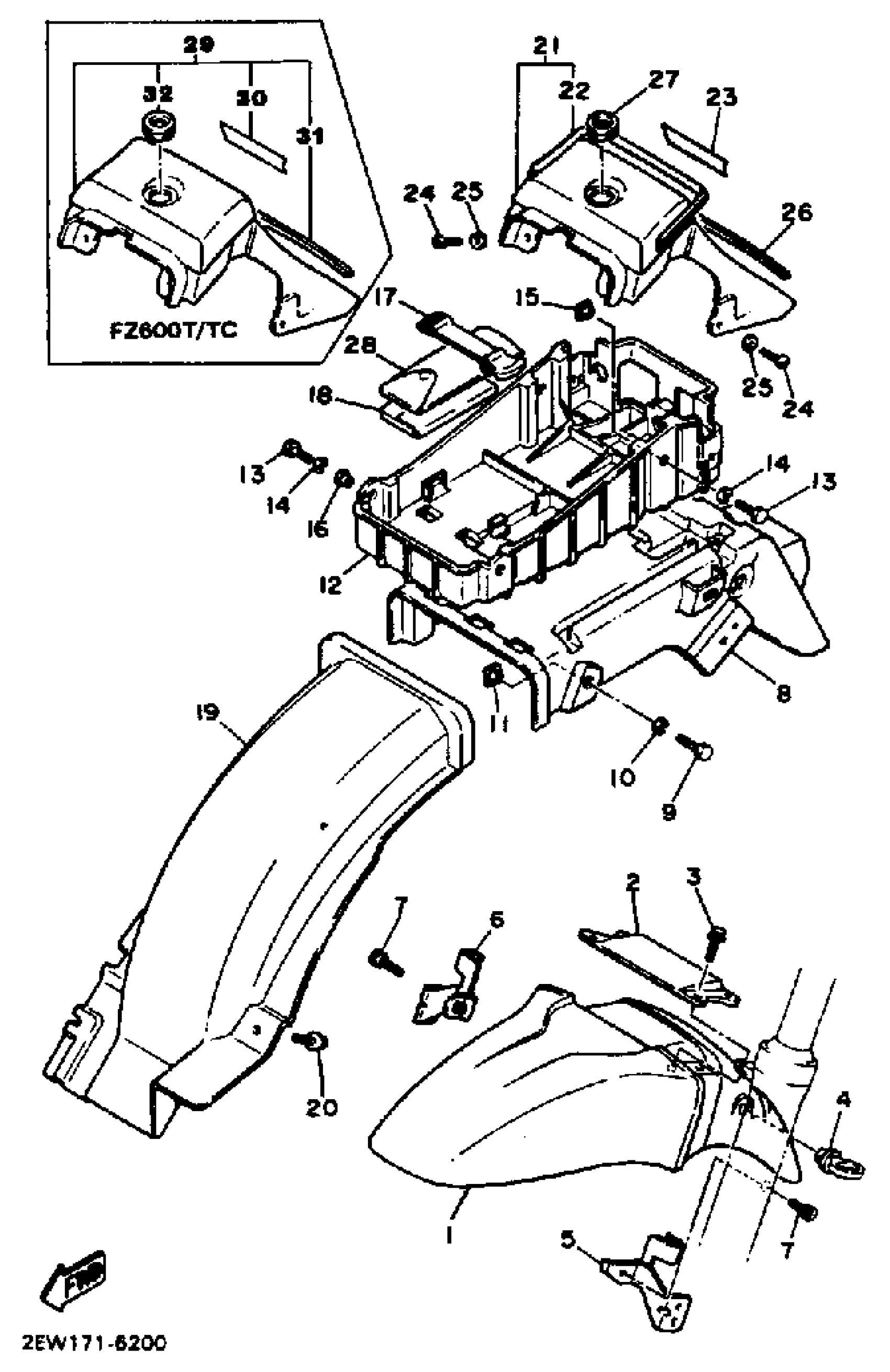

Yamaha FZ600SC (FZ600S CA) 1986 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1UJ-21510-00-E1

Unavailable

1

FENDER, FRONT

1UJ-21510-00-GE

Unavailable

2

BRACE, FORK

46X-2313A-00-00

Unavailable

3

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

4

GUIDE, WIRE

1A8-21518-00-00

$7.99

5

PLATE 1

2AX-21523-00-00

Unavailable

6

PLATE 2

2AX-21524-00-00

Unavailable

7

BOLT,SOCKET

91317-06020-00

Unavailable

8

FENDER, REAR

2AX-21611-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT

(33M-21636-00-00)

Unavailable

12

BOX

2AX-21653-00-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT

(33M-21636-00-00)

Unavailable

16

COLLAR (8G8)

90387-06648-00

Unavailable

17

BAND, TOOL

46X-21376-00-00

Unavailable

18

POUCH

4U7-28186-00-00

Unavailable

19

GUARD, MUD

33M-21629-00-00

Unavailable

20

BOLT, WITH WASHER

(90119-06095-00)

Unavailable

20

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

21

COVER, REAR FENDER

46X-W2165-00-01

Unavailable

22

. GRAPHIC

46X-21660-01-00

Unavailable

23

. EMBLEM 1

46X-2163G-00-00

Unavailable

24

SCREW, BIND(J45)

98980-06012-00

Unavailable

25

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

26

MOLD 2

36Y-28346-00-00

Unavailable

27

. GROMMET

14T-21773-00-00

Unavailable

28

TOOL KIT

46X-W2810-00-00

Unavailable

29

COVER, REAR FENDER

46X-Y2165-00-5X

Unavailable

30

. EMBLEM 1

46X-2163G-00-00

Unavailable

31

MOLD 2

36Y-28346-00-00

Unavailable

32

. GROMMET

14T-21773-00-00

Unavailable
