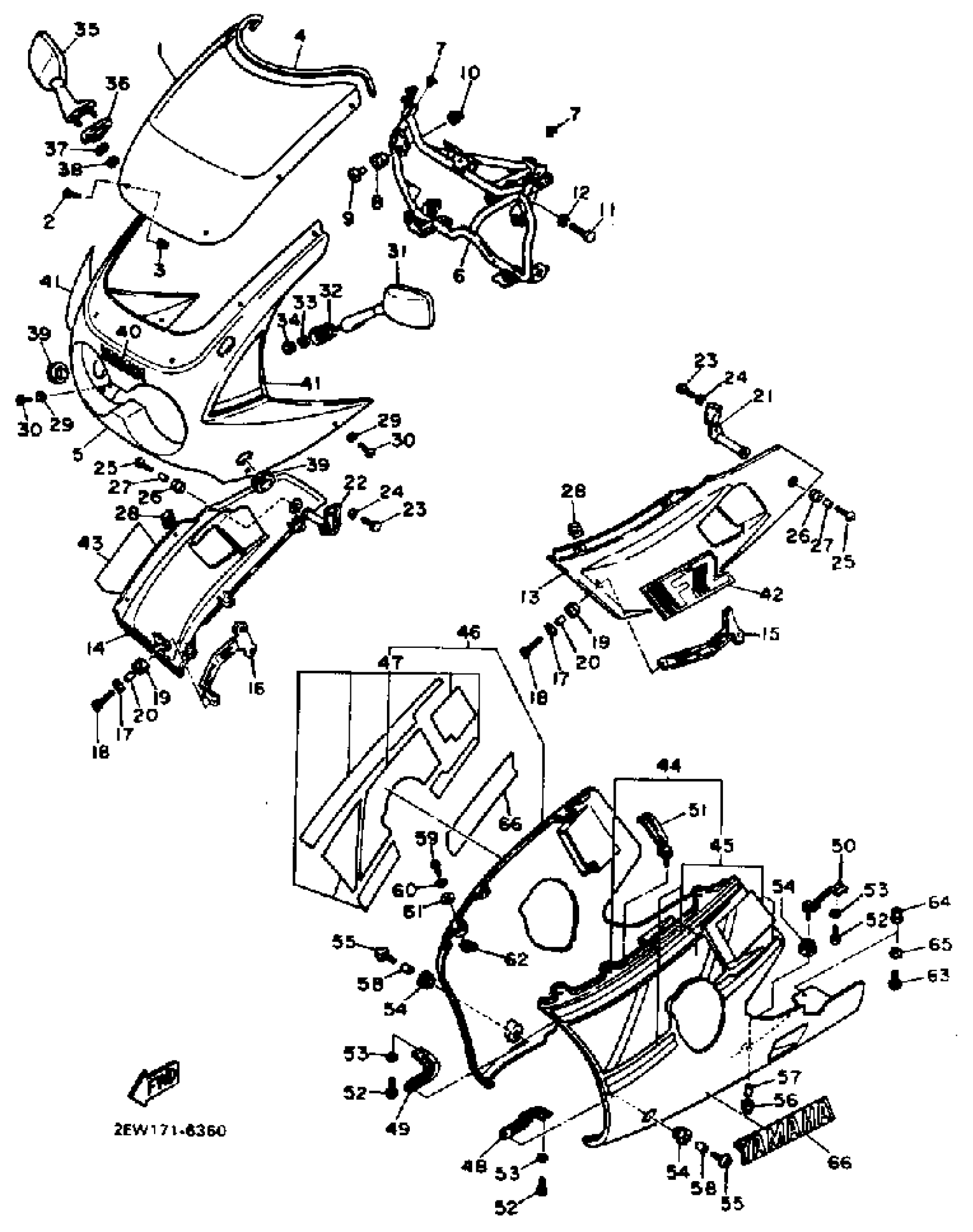

Yamaha FZ600SC (FZ600S CA) 1986 FAIRING COWLING FZ600S SC Diagram

#

Description
Price

1

WINDSHIELD

2AX-28381-00-00

Unavailable

2

SCREW, ROUND HEAD(46X)

90150-05020-00

$9.49

3

NUT, FLANGE(3GM)

95707-05500-00

$8.49

4

TRIM

52E-28376-00-00

Unavailable

5

BODY, FRONT UPPER 1

2AX-2835G-00-5H

Unavailable

6

STAY 1

2EL-28356-00-00

Unavailable

7

PLUG, SPEC''L SHAPE

(90338-09060-00)

Unavailable

8

GROMET (3X3)

90480-14229-00

$8.49

9

COLLAR(46X)

90387-063L7-00

$9.49

10

NUT (1AE)

90179-06500-00

$7.49

11

BOLT(3HN)

97017-08045-00

$7.49

12

WASHER(JN5)

92907-08100-00

$8.49

13

PANEL 1

46X-2835U-00-GE

Unavailable

14

PANEL 2

46X-2835V-00-GE

Unavailable

15

STAY, SIDE 1

46X-2831U-01-00

Unavailable

16

STAY, SIDE 1

46X-2832U-01-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

GROMMET 839774310000

90480-14023-00

Unavailable

20

COLLAR (1T2)

90387-07598-00

Unavailable

21

STAY 2

46X-28357-00-00

Unavailable

22

STAY 3

2AX-28358-00-00

Unavailable

23

BOLT, HEXAGON

97017-06012-00

Unavailable

24

WASHER, SPRING

92907-06100-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

26

GROMMET

90480-13014-00

Unavailable

27

COLLAR(51L)

90387-067K6-00

Unavailable

28

NUT, SPRING

90183-051A0-00

Unavailable

29

WASHER PLATE 626441880000

90202-06007-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

31

MIRROR ASSEMBLY

2EL-26280-00-00

Unavailable

32

BOOT 1

2EL-2629T-00-00

Unavailable

33

WASHER, SPRING

92907-06100-00

Unavailable

34

NUT(6TA)

95317-06600-00

Unavailable

35

MIRROR ASSEMBLY

2EL-26290-00-00

Unavailable

36

BOOT 2

2EL-2629U-00-00

Unavailable

37

WASHER, SPRING

92907-06100-00

Unavailable

38

NUT(6TA)

95317-06600-00

Unavailable

39

GROMMET(3GM)

90480-35526-00

Unavailable

40

EMBLEM, YAMAHA

99241-00100-00

Unavailable

41

GRPHC SET, COWLING

46X-28390-00-00

Unavailable

42

EMBLEM

2AX-28328-00-00

Unavailable

43

EMBLEM

2AX-28338-00-00

Unavailable

44

BODY, FRONT LOWER 1

2AX-W283E-00-GE

Unavailable

45

GRPHC SET 3, COWL

(46X-2836V-50-00)

Unavailable

46

BODY, FRONT LOWER 2

2AX-W283F-00-GE

Unavailable

47

. GRPHC SET 4, COWL

2AX-2836W-50-00

Unavailable

48

BRACKET 1

2AX-2836A-00-00

Unavailable

49

BRACKET 2

2AX-2836E-00-00

Unavailable

50

BRACKET 2

54J-2836F-01-00

Unavailable

51

BRACKET 4

2AX-2836G-00-00

Unavailable

52

BOLT(3JP)

97017-06010-00

Unavailable

53

WASHER, SPRING

92907-06100-00

Unavailable

54

GROMMET

90480-13014-00

Unavailable

55

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

Unavailable

56

NUT (J17)

95380-06800-00

Unavailable

57

COLLAR(1LJ)

90387-067N5-00

Unavailable

58

COLLAR(51L)

90387-067K6-00

Unavailable

59

SCREW, PAN HEAD

90157-05M19-00

Unavailable

60

WASHER(3SX)

92907-05100-00

Unavailable

61

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

62

NUT, T

90180-05008-00

Unavailable

63

SCREW(3YF)

90149-05299-00

Unavailable

64

NUT(1KT)

90179-05523-00

Unavailable

65

WASHER PLATE 626441880000

90202-06007-00

Unavailable

66

EMBLEM

46X-28315-50-00

Unavailable
