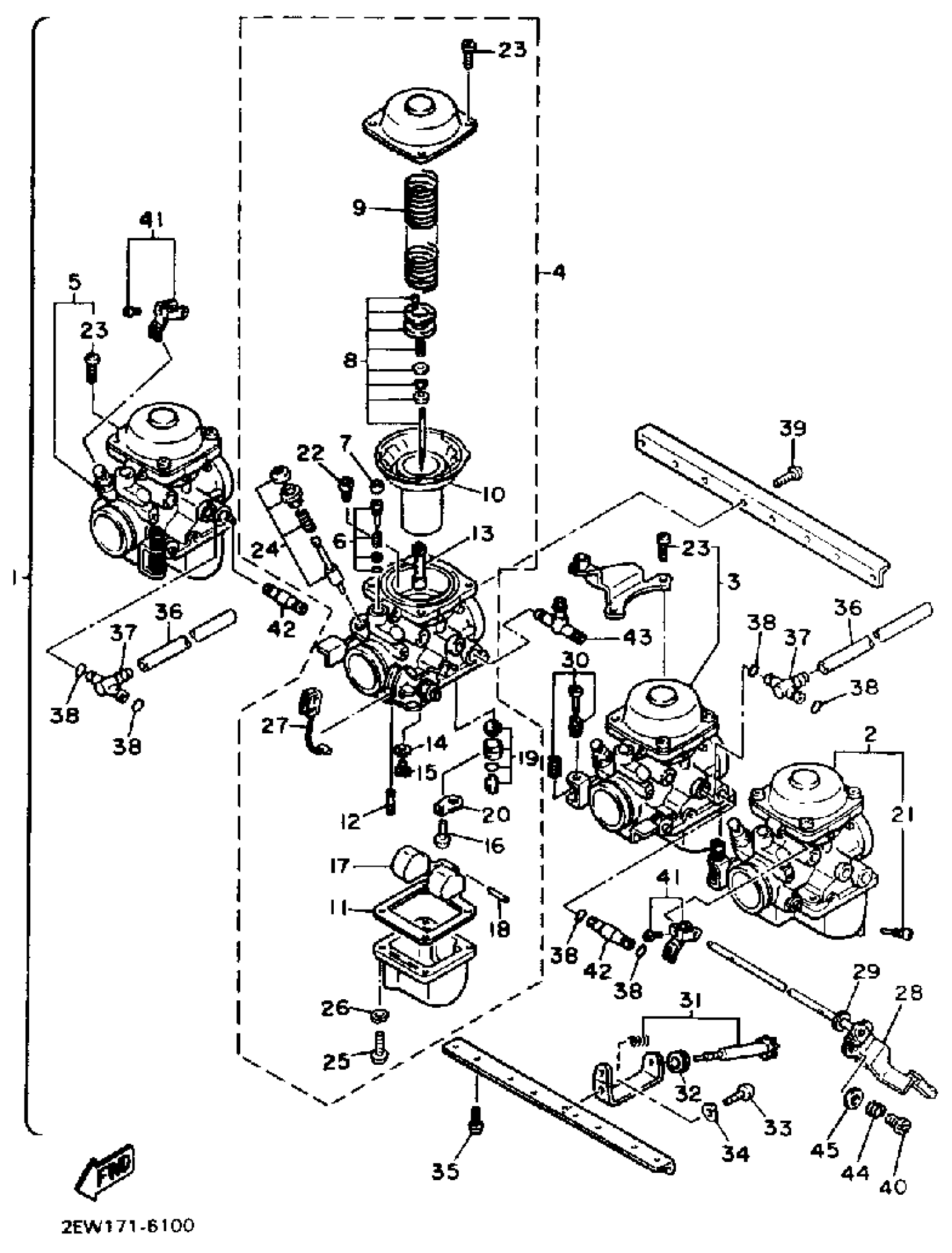

Yamaha FZ600SC (FZ600S CA) 1986 CARBURETOR FZ600S SC Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[2A-X1490-00-0]

Unavailable

1

UNAVAILABLE IN PRICE BOOK

[2A-Y1490-00-0]

Unavailable

2

. CARBURETOR ASSEMBLY 1

2AY-14901-01-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

2AY-14901-01-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

2AX-14902-00-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

2AY-14902-01-00

Unavailable

4

. CARBURETOR ASSEMBLY 3

2AY-14903-01-00

Unavailable

4

. CARBURETOR ASSEMBLY 3

2AY-14903-01-00

Unavailable

5

. CARBURETOR ASSEMBLY 4

2AY-14904-01-00

Unavailable

5

. CARBURETOR ASSEMBLY 4

2AY-14904-01-00

Unavailable

6

PILOT SCREW SET

12R-14105-00-00

$17.49

7

CAP

3F9-14118-00-00

Unavailable

8

.. NEEDLE SET

1UJ-1490J-00-00

Unavailable

9

.. SPRING, DIAPHRAGM

4U8-14933-00-00

Unavailable

10

.. DIAPHRAGM ASSEMBLY

33M-14940-00-00

Unavailable

11

GASKET, FLOAT CHAMBER

46X-14984-00-00

Unavailable

12

JET, PILOT (# 30)

4G0-14142-30-00

Unavailable

13

.. NOZZLE MAIN

1UJ-14141-36-00

Unavailable

14

WASHER,MAIN JET

137-14153-00-00

Unavailable

15

.. JET, MAIN#1075

620-1423A-72-A0

Unavailable

16

SCREW,PAN HEAD

98501-04006-00

Unavailable

17

FLOAT

4G0-14985-00-00

Unavailable

18

PIN, FLOAT

537-14186-00-00

Unavailable

19

NEEDLE VALVE SET

25G-14107-23-00

Unavailable

20

. PLATE

2H0-14146-00-00

Unavailable

21

PLUG, DRAIN

12R-14191-00-00

Unavailable

22

JET, MAIN (#135)

3G2-14231-27-00

Unavailable

23

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

24

.. STARTER SET

33M-1410A-00-00

Unavailable

25

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

26

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

27

. CABLE

4G0-14130-00-00

Unavailable

28

. SHAFT, STARTER LEVR

46X-14977-00-00

Unavailable

29

WASHER

(46X-14952-00-00)

Unavailable

30

. STOP SCREW SET

1UJ-1490K-01-00

Unavailable

31

. THROTTLE SCREW SET

31A-14103-00-00

Unavailable

32

. BUSH

4G0-14998-00-00

Unavailable

33

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

34

. UNAVAILABLE IN PRICE BOOK

92990-05100-

Unavailable

35

SCREW, PAN

98507-06014-00

Unavailable

36

HOSE

50H-14987-00-00

Unavailable

37

. PIPE, STARTER CON

4V7-14988-00-00

Unavailable

38

O-RING

36Y-14147-00-00

Unavailable

39

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

40

. PLUG, SCREW

22F-14115-00-00

Unavailable

41

. STARTER LEVER SET2

46X-1490M-00-00

Unavailable

42

. PIPE, STARTER CON

4G0-14988-00-00

Unavailable

43

PIPE, STARTER CONNECTING

4U8-14988-00-00

Unavailable

44

. SPRING

46X-14938-00-00

Unavailable

45

WASHER

3FV-14953-00-00

Unavailable
