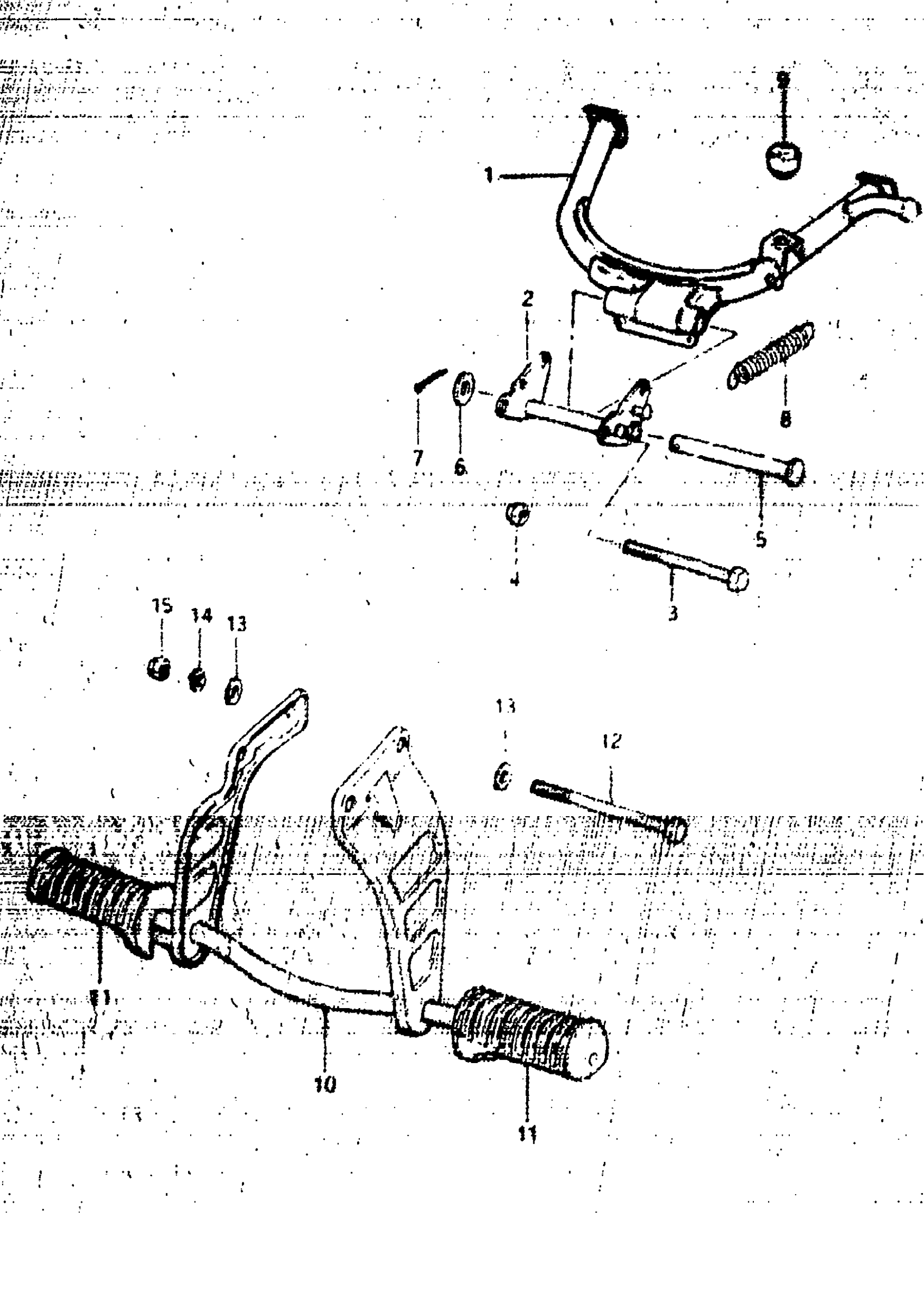

Suzuki FZ50 (1983) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, CENTER

42100-02401

Unavailable

2

BRACKET

42270-02400

Unavailable

3

BOLT This part replaces 09100-06057.

01500-0685B

$3.85

4

NUT This part replaces 08319-31066.

08319-31067

$2.03

5

SHAFT

42211-02400

Unavailable

6

WASHER This part replaces 08322-11128.

08322-01127

$1.84

7

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

8

SPRING

09443-14017

$3.04

9

CUSHION

09321-10002

$2.22

10

BAR, FOOTREST (MAROON) | MODEL Z

43510-02400-10S

Unavailable

10

BAR, FOOTREST (RED) | MODEL O

43510-02400-14C

Unavailable

11

RUBBER

43551-03001

$7.22

12

BOLT (8X105) This part replaces 09103-08023.

09103-08097

$3.44

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

NUT This part replaces 08313-11088.

08313-10087

$2.28
