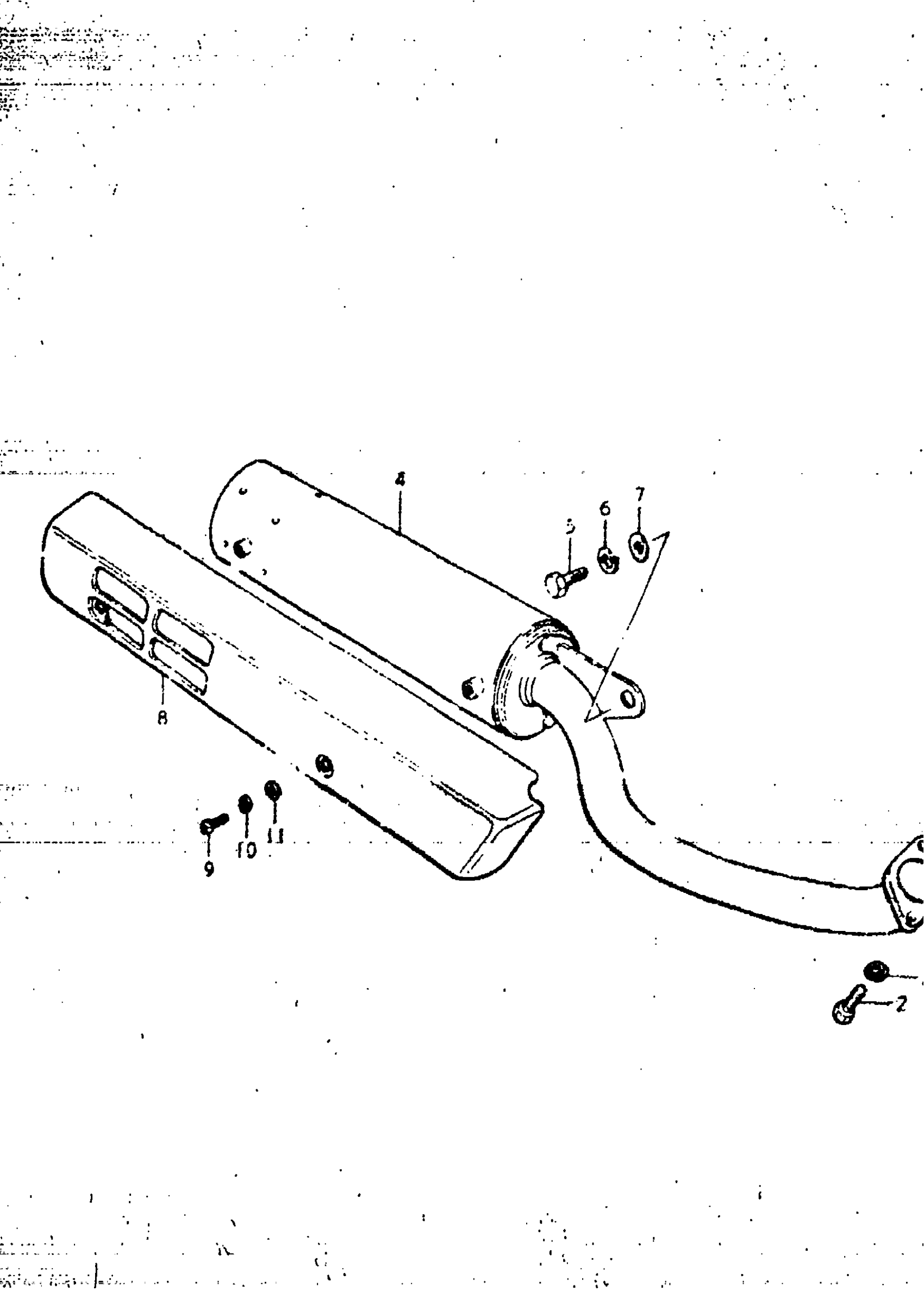

Suzuki FZ50 (1983) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.56

2

BOLT

09100-06064

$1.61

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

MUFFLER ASSY This part replaces 14310-02401.

14310-02201-H01

Unavailable

5

BOLT This part replaces 01107-08258.

01500-08257

$2.50

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER This part replaces 08322-21088.

08322-01087

$2.13

8

COVER,MUFFLER This part replaces 14780-02401-126.

14780-02401-13L

Unavailable

9

SCREW This part replaces 02112-05108.

02112-05107

$1.49

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13
