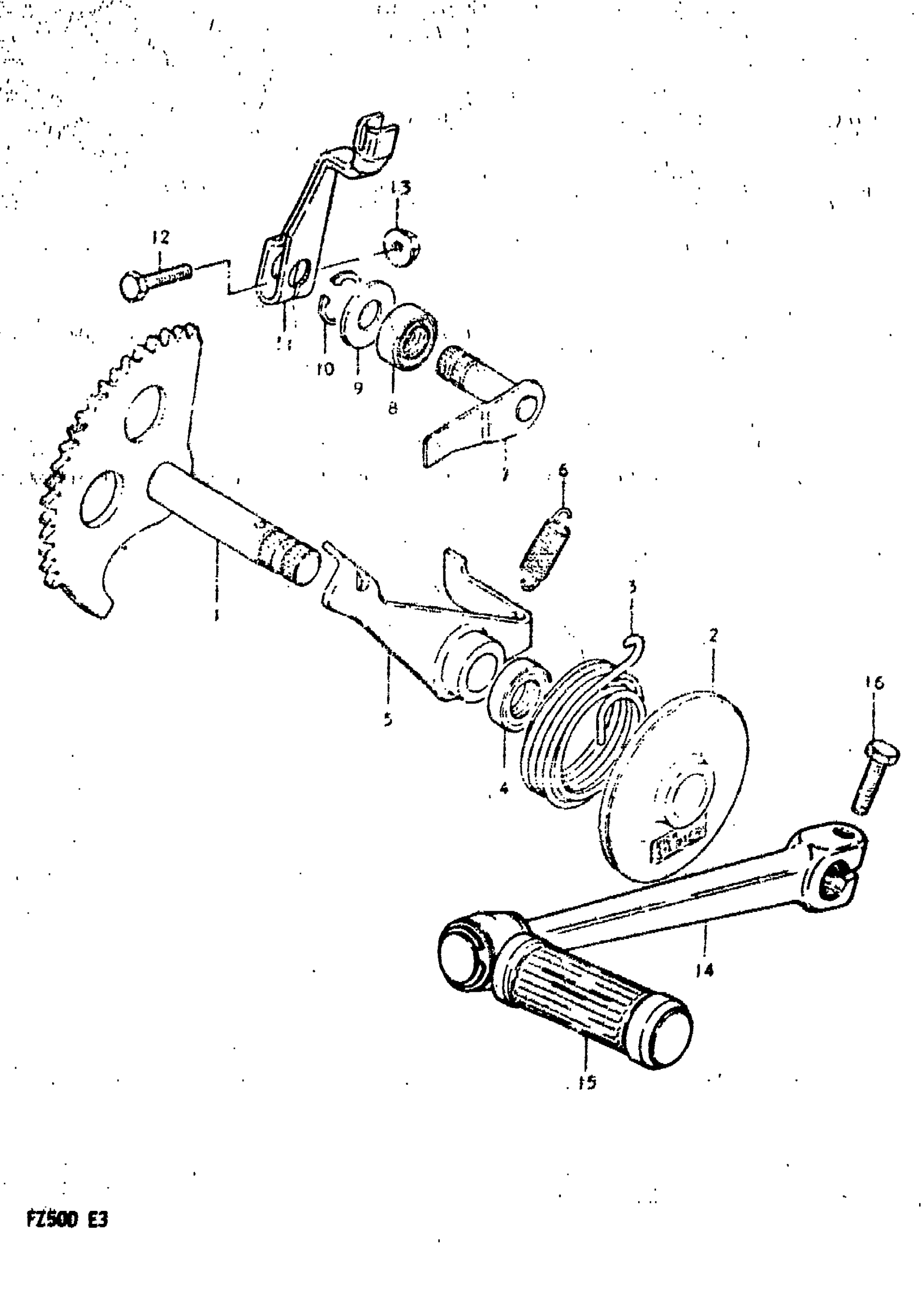

Suzuki FZ50 (1983) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26210-02410

Unavailable

2

GUIDE, SPRING

26221-02410

Unavailable

3

SPRING This part replaces 09448-56001.

09448-56001-XC0

Unavailable

4

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

5

GUIDE

26232-02301

Unavailable

6

SPRING

09443-08018

Unavailable

7

LIFTER

26233-02300

Unavailable

8

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

9

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

10

E RING

26236-02400

Unavailable

11

LEVER, LIFTER

26236-02400

Unavailable

12

BOLT This part replaces 01107-06258.

01500-06257

$1.97

13

NUT This part replaces 08316-16068.

08319-31067

$2.03

14

LEVER ASSY, KICK STARTER | Includes Item(s) 15

26300-02302

Unavailable

15

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

16

BOLT This part replaces 01107-06208.

01500-06207

$2.28
