Partiron

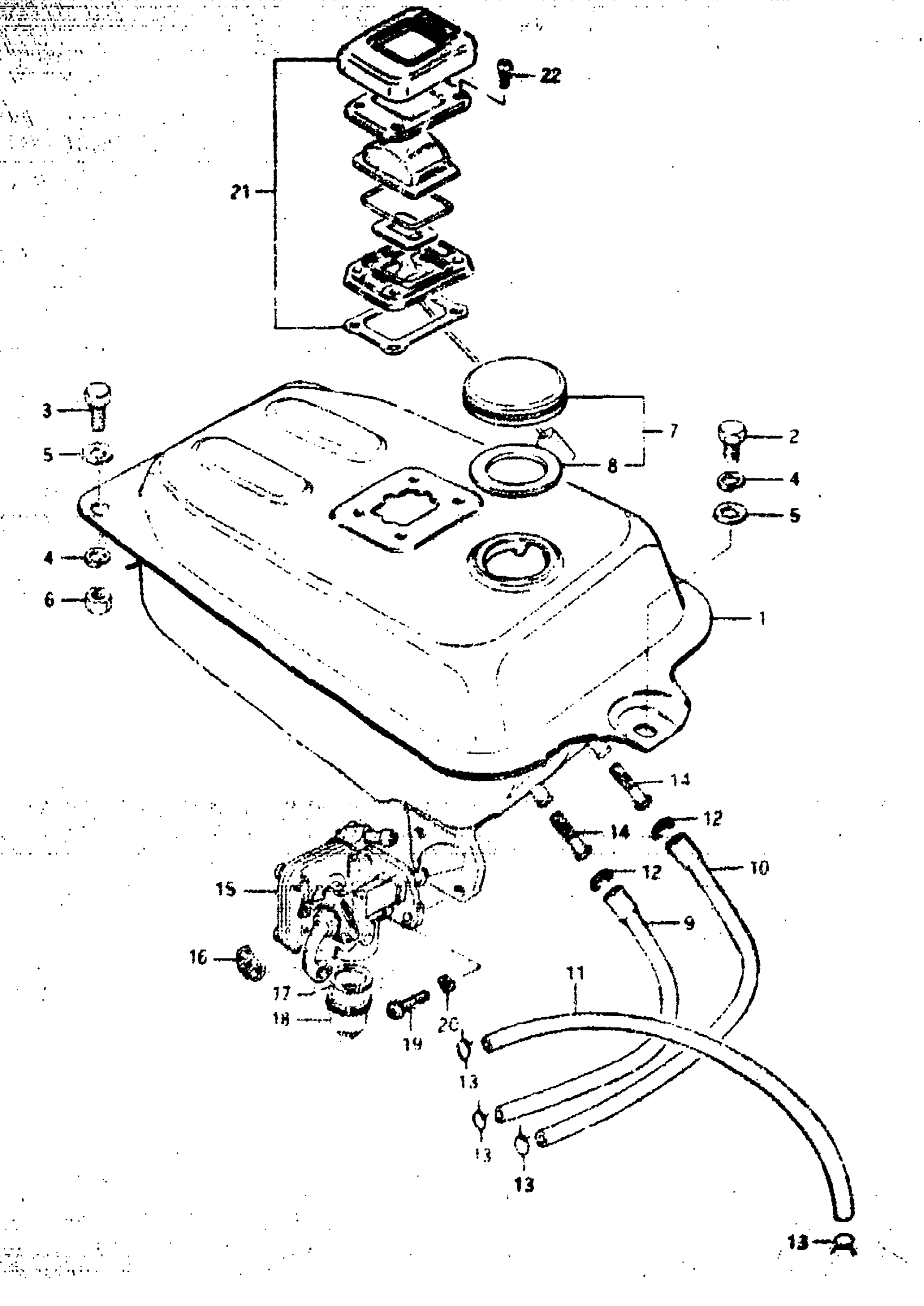

Suzuki FZ50 (1983) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 44110-02411-10S.

44110-02411-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL O This part replaces 44110-02411-14C.

44110-02411-13L

Unavailable

2

BOLT This part replaces 01107-06128.

01500-06127

$1.97

3

BOLT This part replaces 01517-06208.

01550-06207

$2.30

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

6

.NUT This part replaces 08310-11068.

08310-00067

$2.13

7

CAP,FUEL FILLER | MODEL Z This part replaces 44200-35820.

44200-24D11

$11.97

7

CAP,FUEL FILLER | MODEL O; Includes Item(s) 8 This part replaces 44200-35822.

44200-24D11

$11.97

8

GASKET,CAP This part replaces 44248-35000.

44248-35001

$3.31

9

HOSE(5X8.2X600) This part replaces 09343-05096.

09359-50824-600

$7.98

10

HOSE(5X8.2X600) This part replaces 09343-05156.

09359-50824-600

$7.98

11

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

12

CLIP(1)

09401-10401

$1.49

13

CLIP(2)

09401-08401

$1.54

14

FILTER, FUEL

44322-27001

$5.05

15

COCK ASSY, FUEL | Includes Item(s) 16 - 18

44300-02461

Unavailable

16

GASKET,LEVER This part replaces 44341-19050.

44341-19051

$2.60

17

GASKET,CUP

44346-20050

$4.83

18

CUP

44347-20050

$6.93

19

SCREW This part replaces 02112-06168.

02112-06167

$1.49

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

GAUGE ASSY,FUEL | MODEL Z This part replaces 44580-02402.

44580-02404

Unavailable

21

GAUGE ASSY,FUEL | MODEL O This part replaces 44580-02403.

44580-02404

Unavailable

22

SCREW This part replaces 02112-05168.

02112-05167

$1.97
