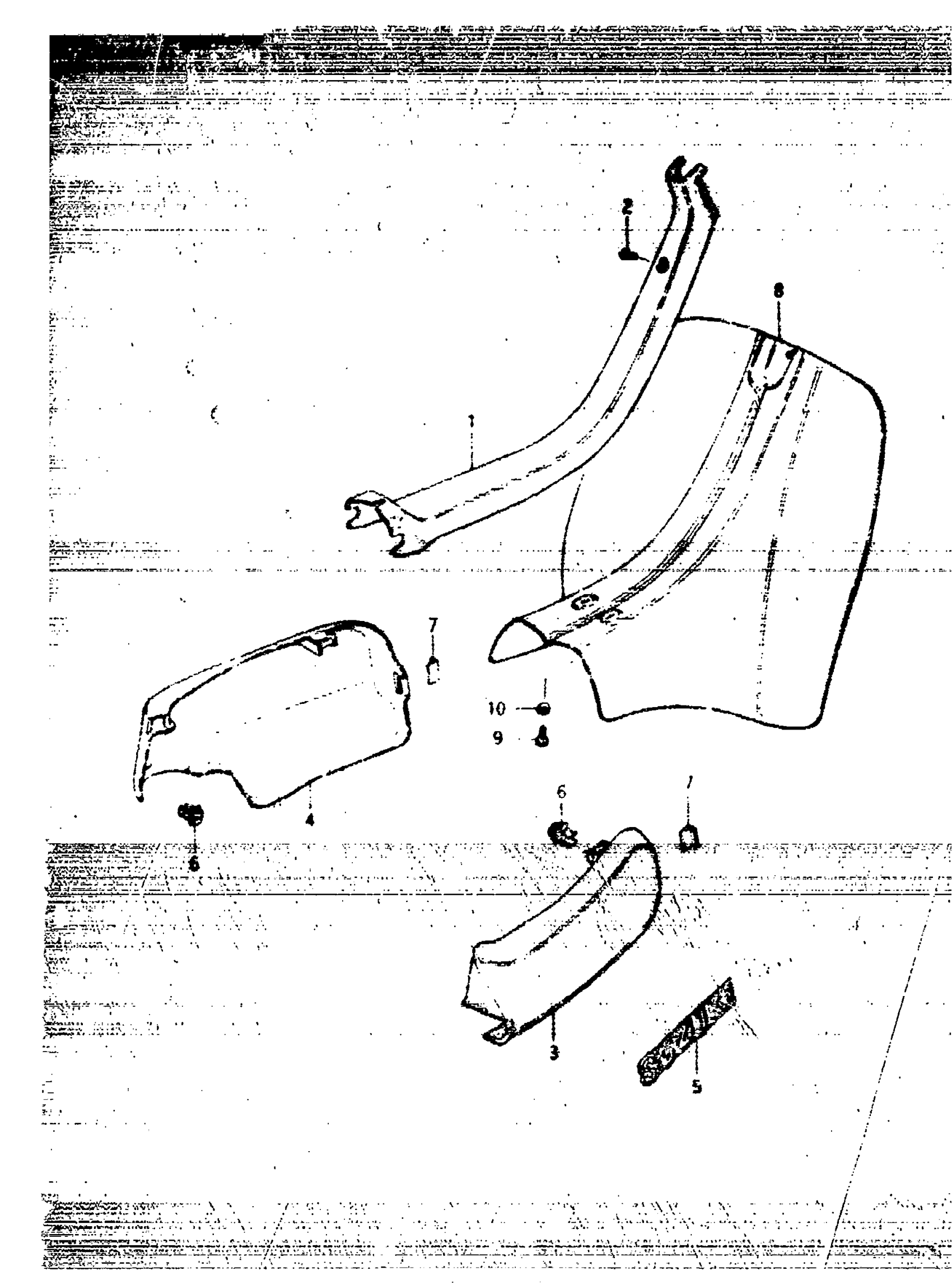

Suzuki FZ50 (1983) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME FRONT(WHITE)

47181-02401-189

Unavailable

2

SCREW

02142-05087

$1.49

3

COVER,FRAME,RH | MODEL Z This part replaces 47111-02401-10S.

47111-02401

Unavailable

3

COVER,FRAME,RH | MODEL D This part replaces 47111-02401-14C.

47111-02401

Unavailable

4

COVER,FRAME LH | MODEL Z This part replaces 47211-02401-10S.

47211-02401

Unavailable

4

COVER,FRAME LH | MOCEL D This part replaces 47211-02401-14C.

47211-02401

Unavailable

5

EMBLEM, FRAME COVER

68111-46600-62R

Unavailable

6

CLAMP

09403-07306

$2.75

7

CUSHION

47117-02400

$2.37

8

LEG SHIELD (WHITE)

48111-02400-189

$79.22

9

SCREW This part replaces 09128-06002.

02162-0616B

$2.03

10

WASHER This part replaces 09160-06007.

09160-06084

$1.78
