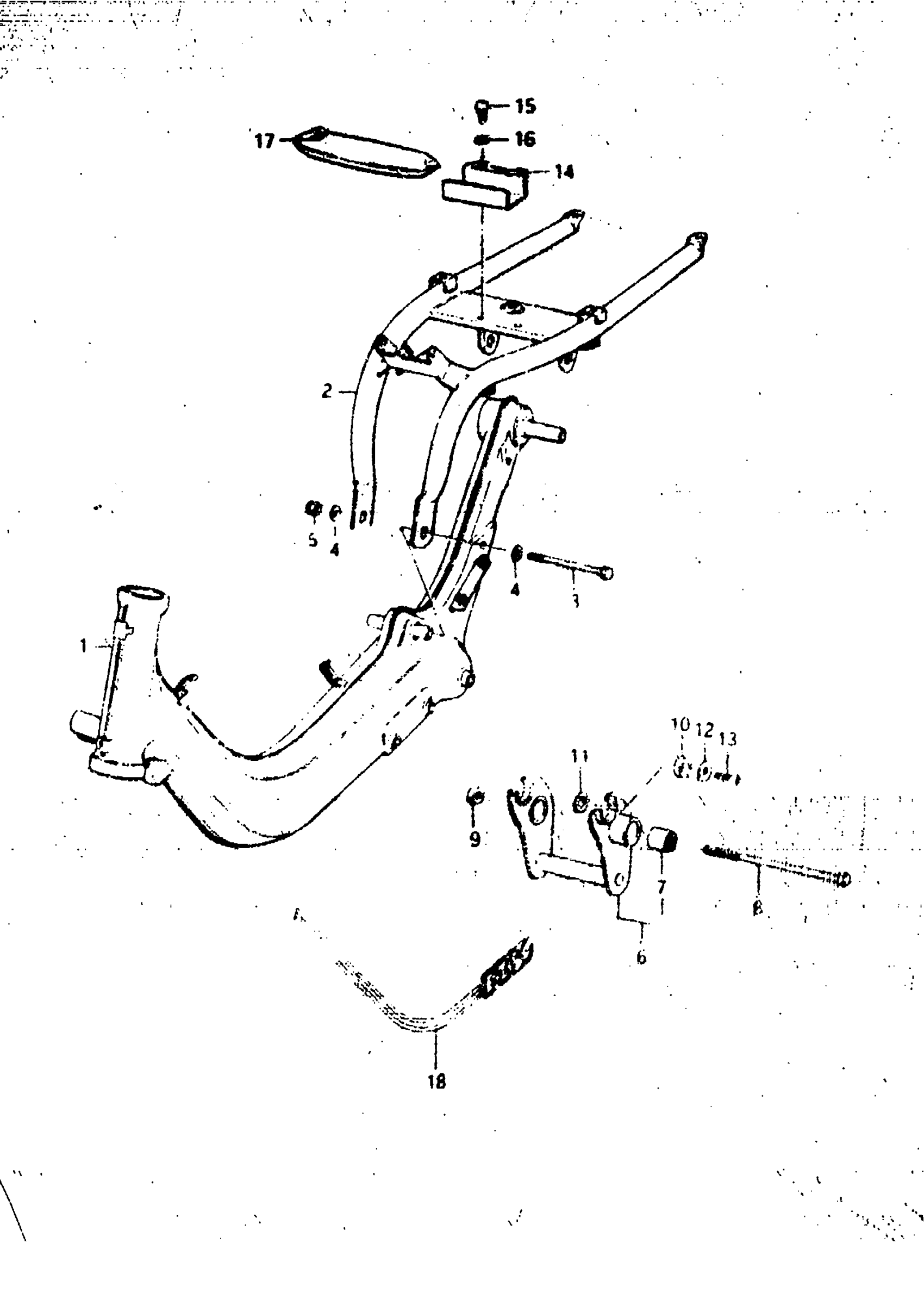

Suzuki FZ50 (1983) FRAME Diagram

#

Description
Price

1

FRAME (MAROON) | MODEL Z

41100-02420-10S

Unavailable

1

FRAME (RED) | MODEL D

41100-02420-14C

Unavailable

2

TUBE, FRAME (MAROON) | MODEL Z

41260-02410-10S

Unavailable

2

TUBE, FRAME (RED) | MODEL D

41260-02410-14C

Unavailable

3

BOLT This part replaces 01517-08908.

01550-08907

$5.18

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

NUT This part replaces 08313-11088.

08313-10087

$2.28

6

BRACKET SET, CRANKCASE | Includes Item(s) 7

41100-02820

Unavailable

7

BUSH

09319-10008

$7.40

8

BOLT

09100-10049

Unavailable

9

NUT This part replaces 08319-31108.

08319-31107

$2.73

10

CUSHION

09320-10017

$3.68

11

WASHER This part replaces 09160-10026.

09160-10121

$2.03

12

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

$1.93

13

SCREW This part replaces 02142-04088.

02142-0408B

$1.70

14

HOLDER, TOOL

41550-02400

Unavailable

15

SCREW This part replaces 02112-06128.

02112-06127

$1.84

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

TOOL ASSY This part replaces 09800-03800.

09800-21080

$36.42

18

TAPE SET, FRAME SIDE

68180-02400-62C

Unavailable
