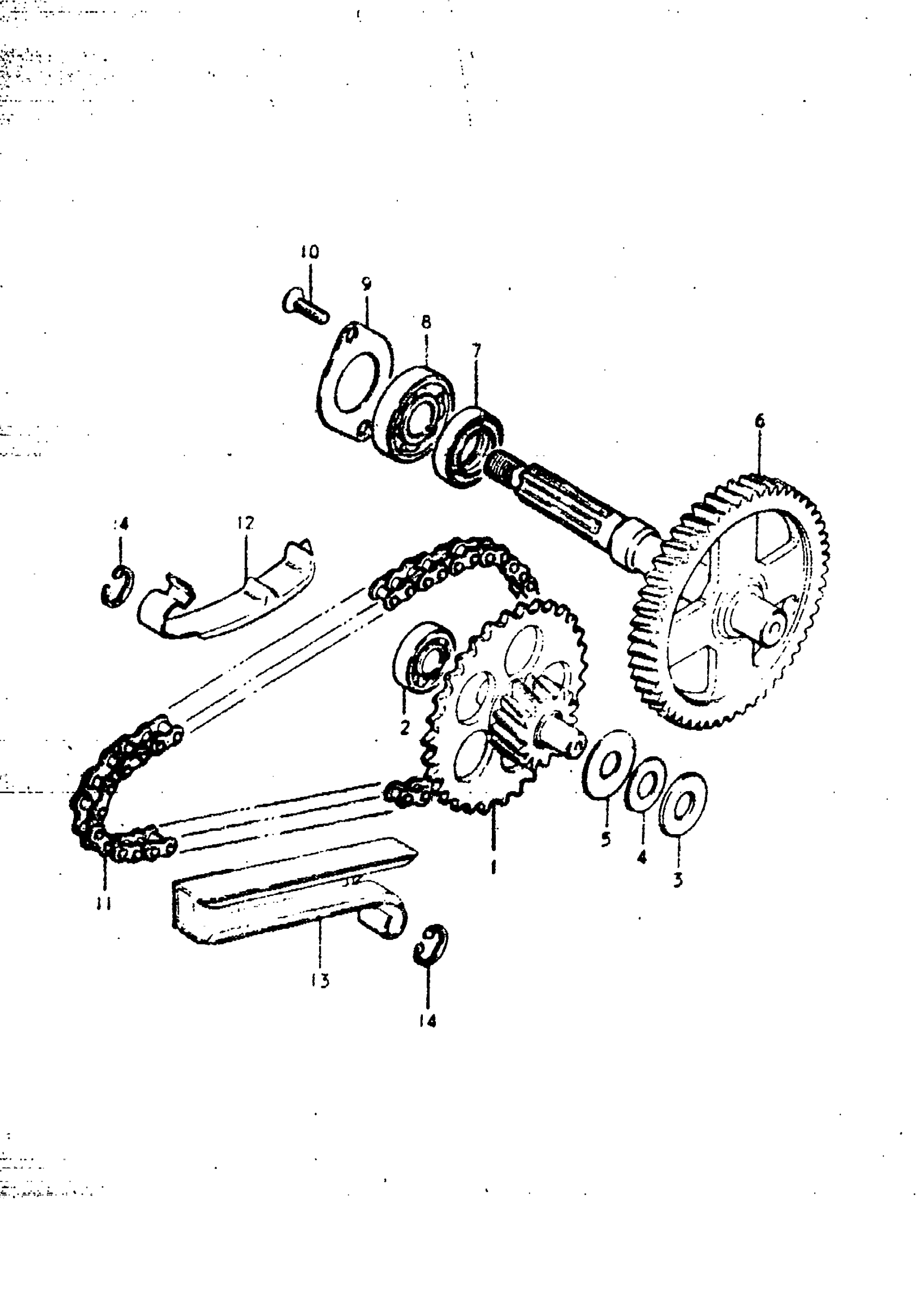

Suzuki FZ50 (1983) FINAL DRIVE - CHAIN Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 24210-02400.

24210-02401

Unavailable

2

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

$18.47

3

WASHER

08211-12204

$4.32

4

SHIM (T:0.2)

08221-12204

$2.38

5

SHIM (T:0.3)

09181-12006

Unavailable

6

DRIVESHAFT (NT:62)

24130-02400

Unavailable

7

OIL SEAL

09283-20024

$5.11

8

BEARING

08130-63027

$31.48

9

RETAINER

24751-02400

Unavailable

10

SCREW This part replaces 02112-06168.

02112-06167

$1.49

11

NO DESCRIPTION AVAILABLE This part replaces 27600-02311.

27600-06430-064

Unavailable

12

TENSIONER, CHAIN

27631-02300

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 27631-02450.

27631-02451

Unavailable

14

.E-RING This part replaces 08332-11088.

08332-1108A

$1.78
