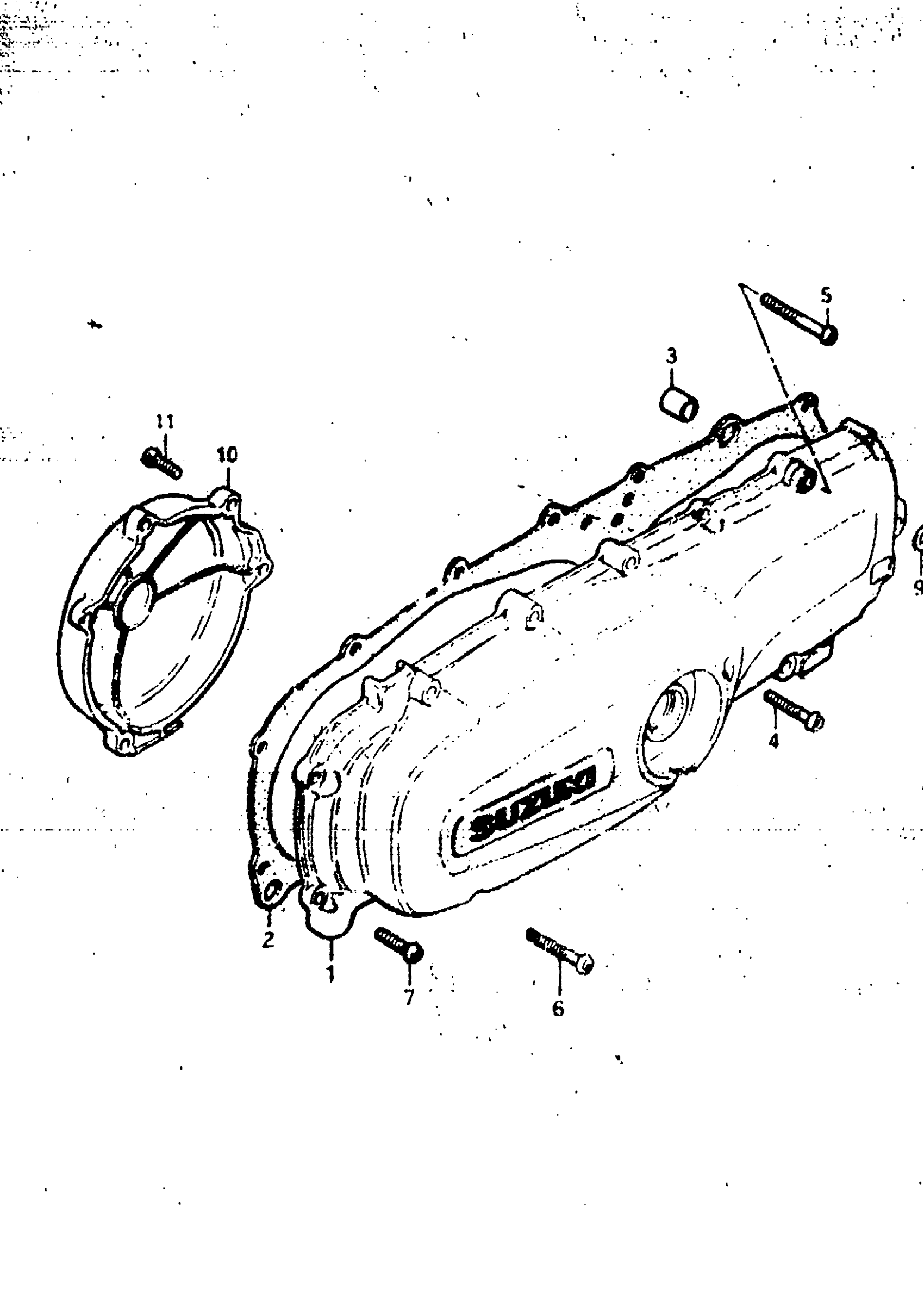

Suzuki FZ50 (1983) CRANKCASE COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11341-02413.

11341-02414

Unavailable

2

GASKET,CL COVER This part replaces 11482-02303.

11482-02310

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

9

GASKET

09168-06004

$1.49

10

NO DESCRIPTION AVAILABLE This part replaces 11351-02302.

11351-02303

Unavailable

11

SCREW This part replaces 02112-06208.

02112-06207

$1.78
