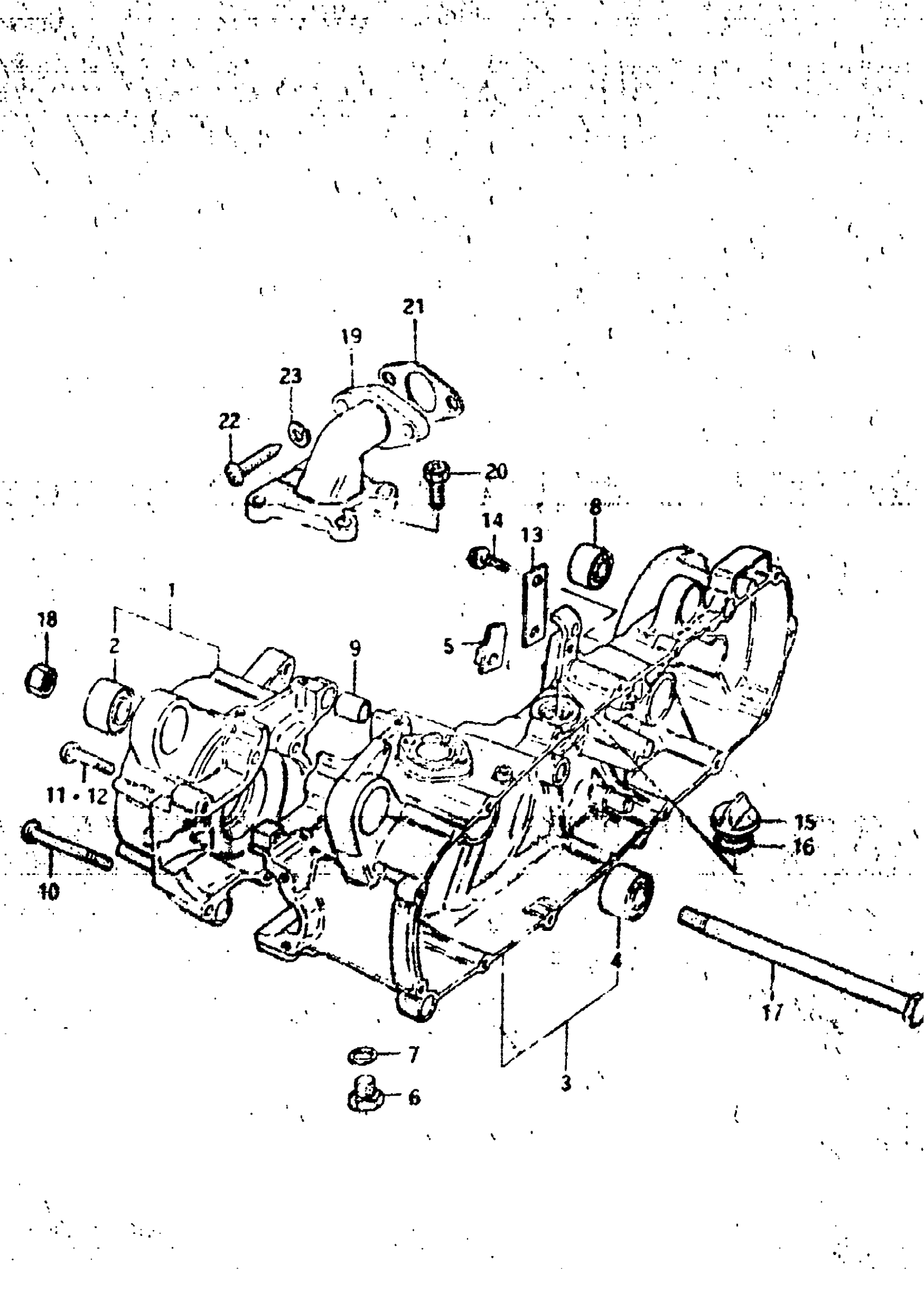

Suzuki FZ50 (1983) CRANKCASE Diagram

#

Description
Price

1

RH CRANKCASE SET | Includes Item(s) 2

11302-02820

Unavailable

2

BUSH,ENGINE MTG This part replaces 09319-10027.

09319-10050

$16.89

3

LH CRANKCASE SET | Includes Item(s) 4 - 7

11303-02820

Unavailable

4

BUSH,ENGINE MTG This part replaces 09319-10027.

09319-10050

$16.89

5

PLATE

58570-02501

Unavailable

6

PLUG, OIL DRAIN

09247-10001

$2.20

7

GASKET

09168-10002

$2.13

8

BUSH,REAR SHOCK ABSORBER

09319-10032

$9.27

9

PIN This part replaces 09206-13001.

04211-13189

$2.19

10

SCREW This part replaces 02112-06808.

02112-06807

$2.57

11

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

12

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

13

PLATE,BREATHER

11329-02300

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 09360-06011.

09360-06012

Unavailable

15

PLUG SET This part replaces 09259-20006.

09200-20811

$4.02

16

O RING

09280-22003

$1.72

17

BOLT, ENGINE MOUNTING

09100-10161

Unavailable

18

NUT This part replaces 08310-11108.

08310-00107

$2.19

19

NO DESCRIPTION AVAILABLE This part replaces 13150-02420.

13150-02441

Unavailable

20

SCREW This part replaces 09128-06002.

02162-0616B

$2.03

21

GASKET,CARBURET This part replaces 13125-46100.

13125-46110

$3.65

22

SCREW This part replaces 09139-06007.

02112-0625A

$1.80

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
