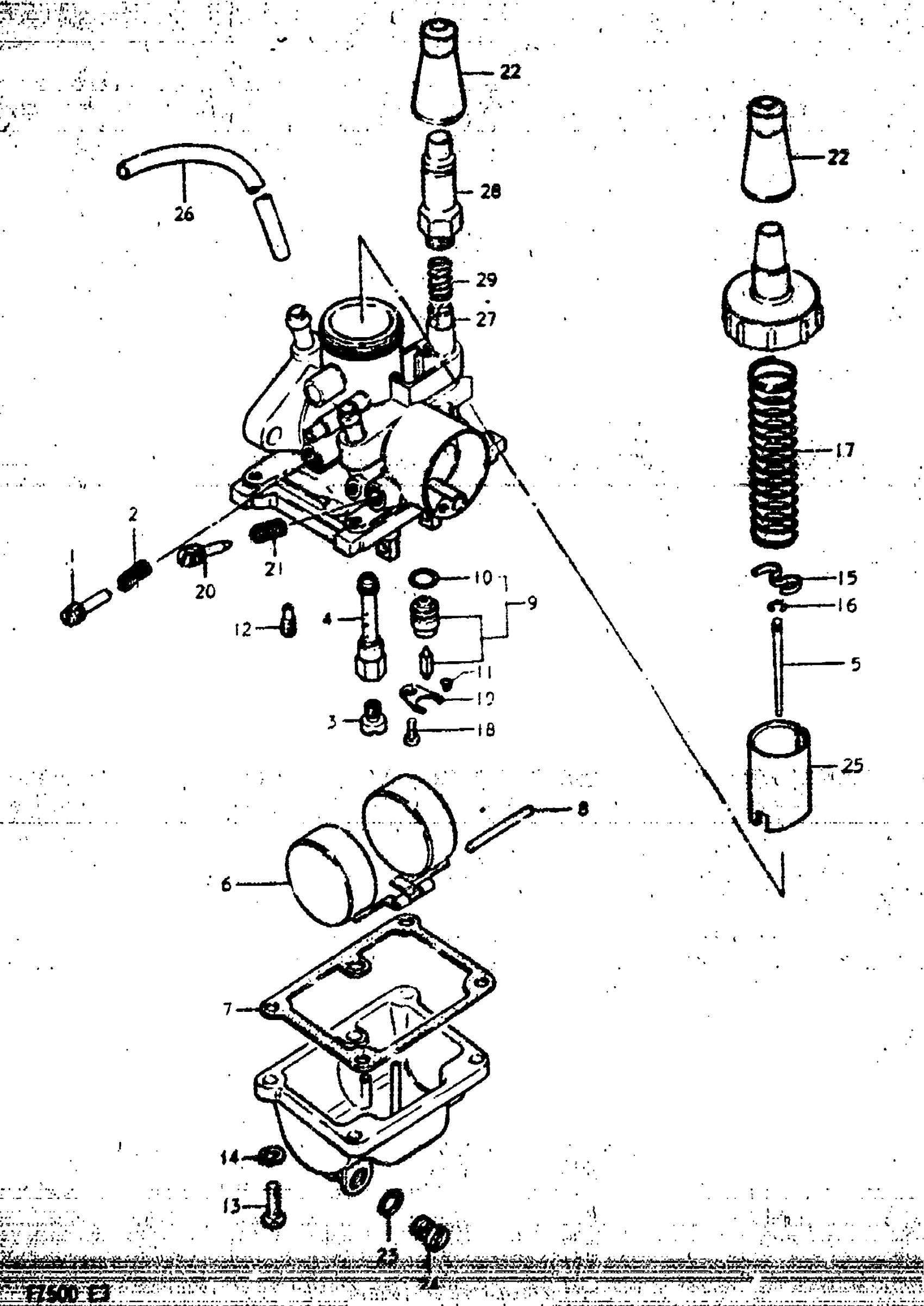

Suzuki FZ50 (1983) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 29 This part replaces 13200-02421.

13200-02424

Unavailable

1

SCREW, THROTTLE STOP

13267-01010

$7.73

2

SPRING

13268-01010

$5.28

3

JET, MAIN (7.5)

09491-57003

$11.38

4

JET, NEEDLE (E-2)

09494-00234

Unavailable

5

NEEDLE, JET (3D13-3)

13383-02400

Unavailable

6

FLOAT This part replaces 13252-02410.

13250-02500

$26.91

7

GASKET

13251-02410

$5.36

8

PIN

13254-20010

$4.28

9

VALVE ASSY, NEEDLE

13370-02421

Unavailable

10

.O RING

13374-46710

$4.48

11

CLIP

13377-02410

$7.37

12

JET, PILOT NO.1 (15) This part replaces 09492-15002.

09492-15015

$16.78

13

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

14

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

15

PLATE This part replaces 13581-01010.

13581-07910

Unavailable

16

E RING This part replaces 13394-12110.

13394-40D00

$5.43

17

SPRING, THROTTLE VALVE

13573-46710

Unavailable

18

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

19

PLATE

13373-46710

$6.17

20

SCREW, AIR

13269-04010

$13.67

21

SPRING

13268-01010

$5.28

22

BOOT

13681-16601

$8.26

23

GASKET

13249-05010

$1.98

24

PLUG, DRAIN

13247-05010

$5.11

25

VALVE, THROTTLE (CA: 2.0)

13551-02400

Unavailable

26

HOSE(4.5X8.5X60 This part replaces 13683-45050.

09355-45001-600

$9.48

27

VALVE, STARTER

13411-01010

$18.43

28

CAP

13418-02420

Unavailable

29

SPRING

13417-01010
