Partiron

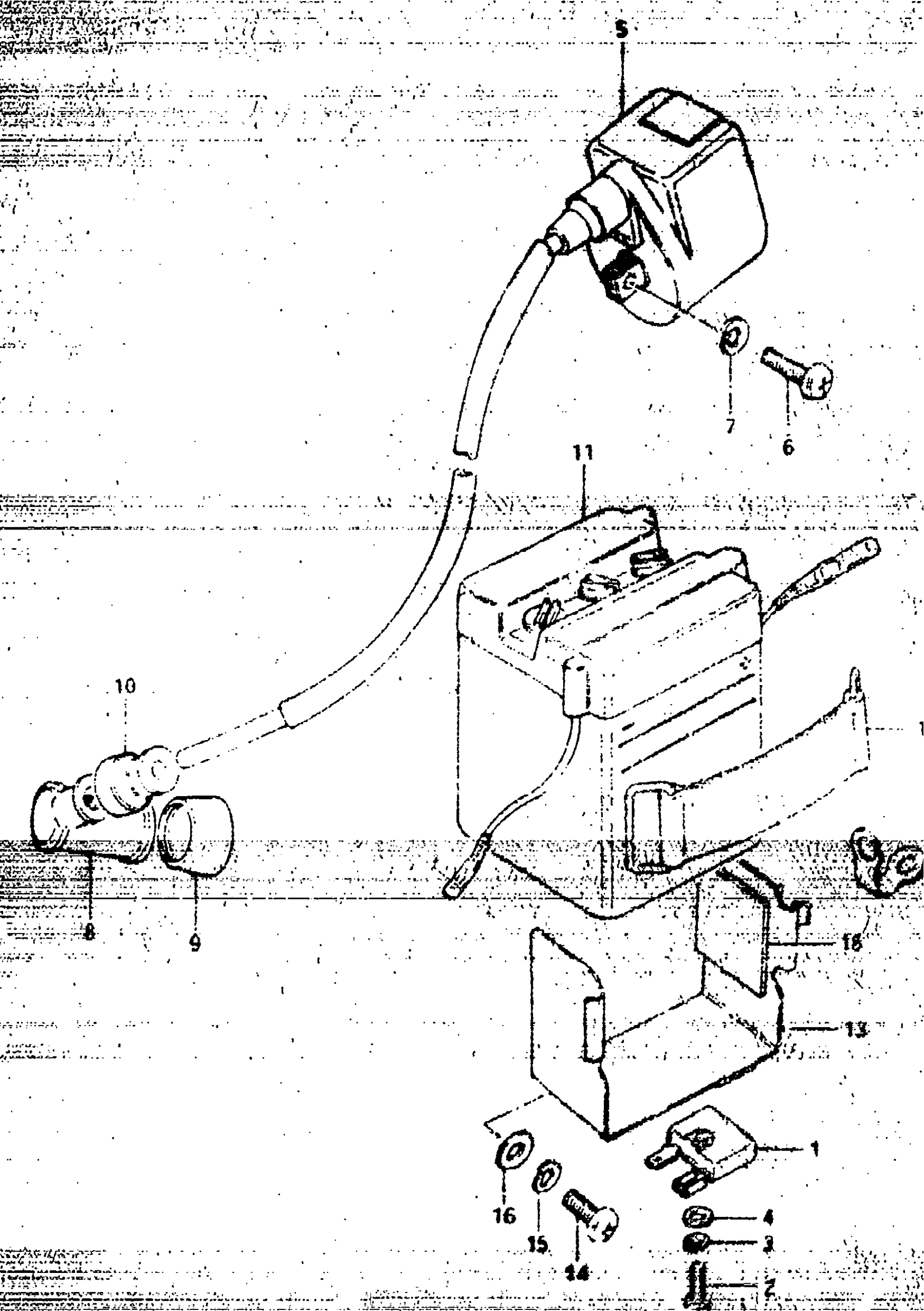

Suzuki FZ50 (1983) BATTERY Diagram

#

Description
Price

1

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

2

SCREW This part replaces 02112-05208.

02112-05207

$1.97

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

4

WASHER This part replaces 08322-21058.

08322-01057

$2.13

5

NO DESCRIPTION AVAILABLE This part replaces 33410-02450.

33410-02460

Unavailable

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

9

SEAL, SPARK PLUG

33541-69010

$4.37

10

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

11

BATTERY (6N4-2A)

33610-03010

Unavailable

12

BAND

09462-00008

$4.77

13

HOLDER, BATTERY

41540-02400

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

CLAMP, BATTERY ECHAUST PIPE

09404-07704

Unavailable

18

CUSHION, BATTERY

33651-37000

$4.48
