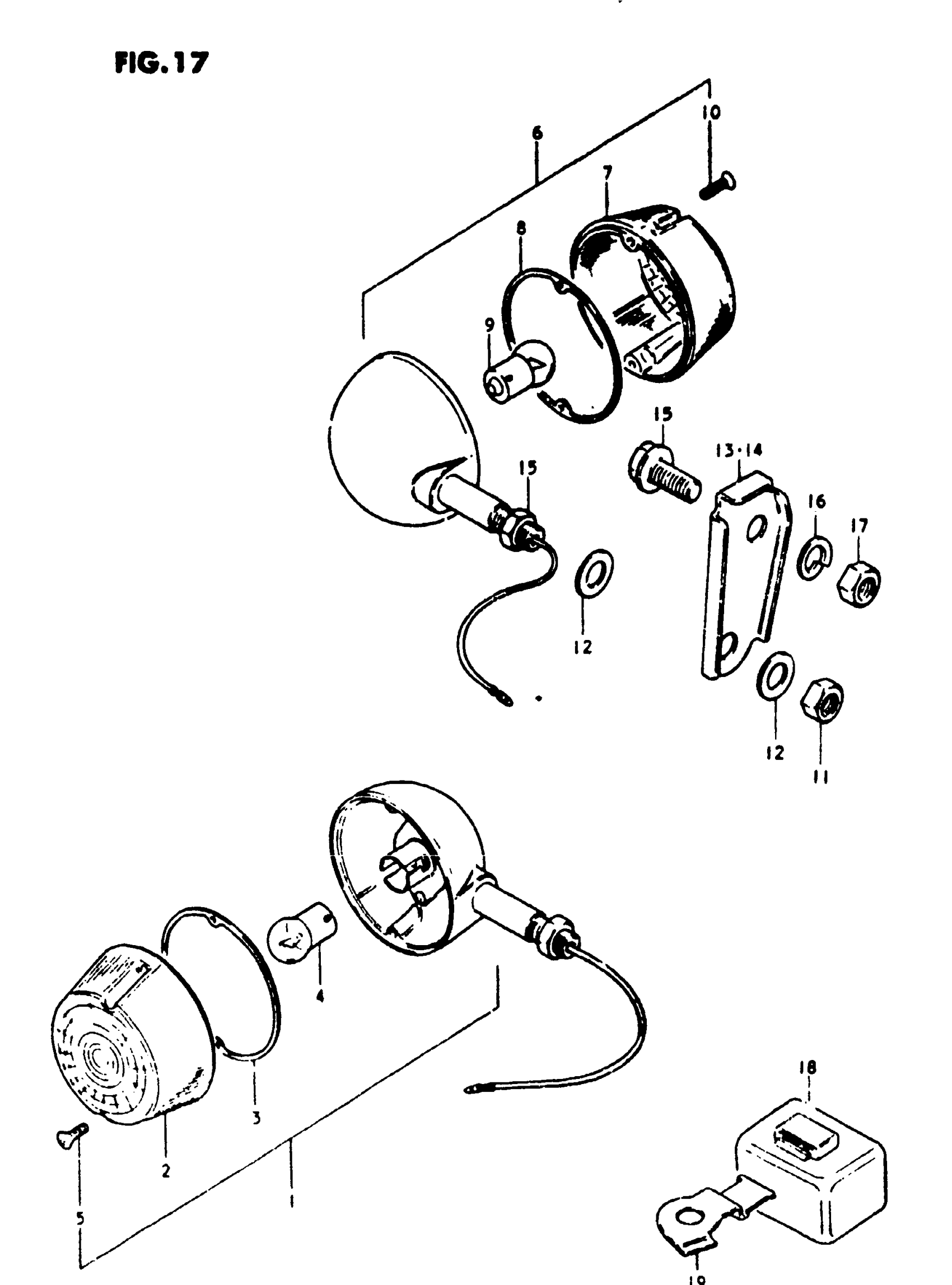

Suzuki FZ50 (1981) TURN SIGNAL LAMP (FZ50X) Diagram

#

Description
Price

1

LAMP, REAR TURN SIGNAL | Includes Item(s) 2 - 5 This part replaces 35601-02450.

35603-02450

Unavailable

2

LENS

35612-12611

$12.50

3

GASKET

35613-03610

$13.34

4

BULB (6V,21CP)

09471-06011

Unavailable

5

SCREW This part replaces 02133-03167.

02132-03167

$1.49

6

LAMP, REAR TURN SIGNAL | Includes Item(s) 7 - 10

35603-02450

Unavailable

7

LENS

35612-12611

$12.50

8

GASKET

35613-03610

$13.34

9

BULB (6V,21CP)

09471-06011

Unavailable

10

SCREW This part replaces 02133-03167.

02132-03167

$1.49

11

NUT This part replaces 08310-12108.

08310-00107

$2.19

12

WASHER This part replaces 08322-21108.

08322-01107

$2.15

13

BRACKET, REAR RH

35621-02430

Unavailable

14

BRACKET, REAR LH

35641-02430

Unavailable

15

PLUG, OIL GALLERY This part replaces 01517-10168.

01550-1016A

$3.10

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

NUT This part replaces 08310-12108.

08310-00107

$2.19

18

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

Unavailable

19

BRACKET, RELAY

38621-02400

Unavailable
