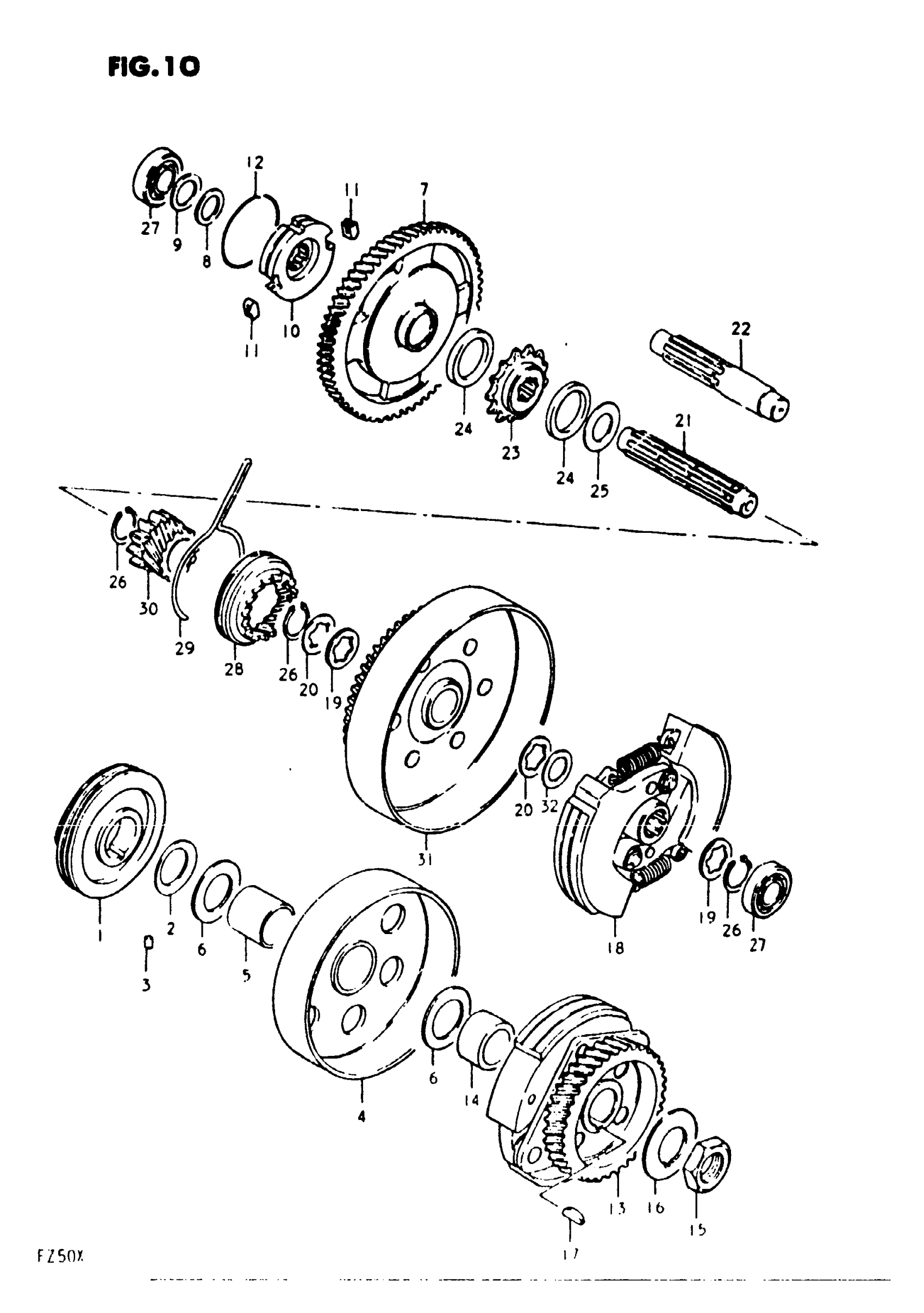

Suzuki FZ50 (1981) TRANSMISSION Diagram

#

Description
Price

1

GEAR, OIL PUMP DRIVE (NT:2)

16321-02302

Unavailable

2

WAVE WASHER

09164-20004

$4.77

3

PIN This part replaces 06211-04063.

04221-04069

$2.12

4

GEAR, PRIMARY DRIVE (NT:29)

21110-02410

Unavailable

5

SPACER

09180-16016

Unavailable

6

WASHER

08211-16302

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 21200-02403.

21200-02404

Unavailable

8

WASHER

09160-12037

$3.83

9

SHIM

08221-12225

Unavailable

10

INNER, ONE WAY | MODEL N This part replaces 21262-02402.

21262-02403

Unavailable

10

INNER, ONE WAY | MODEL T, X

21262-02403

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 21263-02401.

21263-02402

Unavailable

12

SPRING

09380-36001

Unavailable

13

CLUTCH ASSY This part replaces 21500-02411.

21500-02412

Unavailable

14

SPACER | MODEL N

09180-16014

Unavailable

14

SPACER | MODEL T, X

09180-16021

Unavailable

15

NUT This part replaces 09140-16014.

09140-16005

$3.75

16

LOCK WASHER

09166-16010

Unavailable

17

KEY

08341-31039

$1.89

18

CLUTCH, NO. 2

21500-02402

Unavailable

19

RING, RUBBER

09161-15002

Unavailable

20

WASHER

09167-15001

Unavailable

21

COUNTERSHAFT | MODEL N

24121-02404

Unavailable

22

COUNTERSHAFT | MODEL T, X

24121-02405

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 24171-02401.

24171-02402

Unavailable

24

DAMPER, CHAIN

09161-22003

Unavailable

25

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.57

26

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

27

BEARING

09262-12001

$18.47

28

STARTER,KICK This part replaces 26231-02301.

26231-02302

Unavailable

29

RETAINER SPRING

26234-02300

Unavailable

30

GEAR, KICK IDLE (NT:12) | MODEL N

26261-02302

Unavailable

30

GEAR, KICK IDLE (NT:12) | MODEL T,X

26261-02400

Unavailable

31

GEAR, KICK DRIVEN | MODEL N This part replaces 26280-02404.

26280-02406

Unavailable

31

GEAR, KICK DRIVEN | MODEL T,X

26280-02406

Unavailable

32

SHIM | 0~3)

08221-15204

Unavailable
