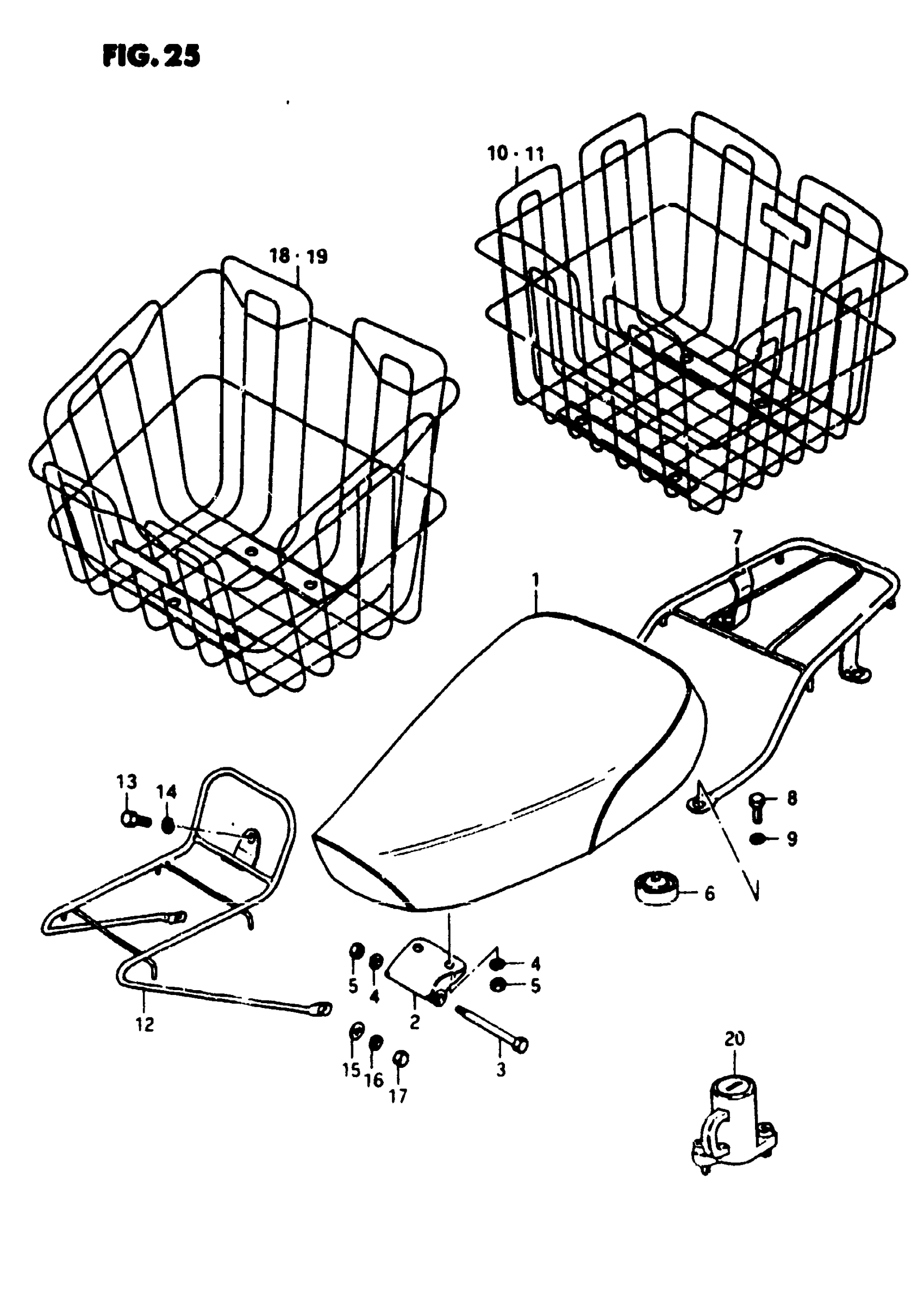

Suzuki FZ50 (1981) SEAT (FZ50X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45100-02403-866.

45100-02410-43N

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 45210-02400.

45210-02401

Unavailable

3

BOLT

09111-06001

Unavailable

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

.NUT This part replaces 08310-11068.

08310-00067

$2.13

6

CUSHION

09321-14003

Unavailable

7

CARRIER, REAR

46310-02402

Unavailable

8

BOLT This part replaces 01107-06108.

01500-06107

$2.06

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 11 This part replaces 46600-02820.

99000-99047-601

Unavailable

11

NO DESCRIPTION AVAILABLE | OPT This part replaces 46600-02820.

99000-99047-601

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 46410-02401.

46410-02402

Unavailable

13

BOLT This part replaces 01107-06108.

01500-06107

$2.06

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

18

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 19 This part replaces 46500-43811.

99000-99047-F00

Unavailable

19

FITTING SET | OPT

46580-02810

Unavailable

20

LOCK ASSY, HELMET

95700-02410

Unavailable
