Partiron

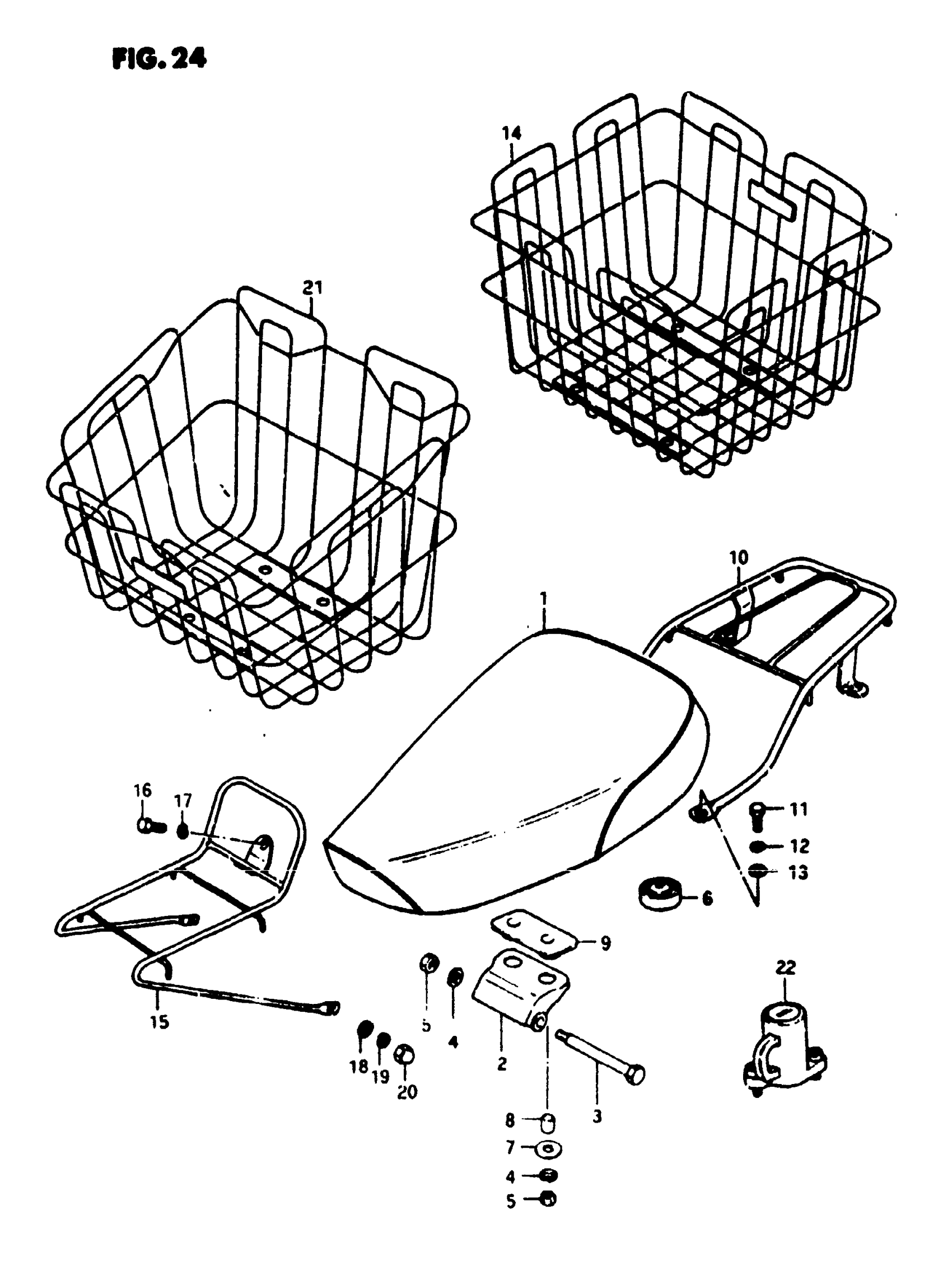

Suzuki FZ50 (1981) SEAT (FZ50N Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 45100-02402-40J.

45100-02410-43N

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 45100-02402-866.

45100-02410-43N

Unavailable

2

BRACKET, SUPPORT

45210-43000

Unavailable

3

BOLT

09111-06001

Unavailable

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

.NUT This part replaces 08310-11068.

08310-00067

$2.13

6

CUSHION

09321-14004

Unavailable

7

.WASHER (6.5X16X1.6) This part replaces 09160-06042.

09160-06130

$1.91

8

SPACER (6.1X8X15.5) This part replaces 09180-06040.

09180-06251

$2.44

9

CUSHION

09329-08001

Unavailable

10

CARRIER, REAR This part replaces 46310-02410.

46310-02402

Unavailable

11

BOLT This part replaces 01107-06128.

01500-06127

$1.97

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

14

NO DESCRIPTION AVAILABLE | OPT This part replaces 46600-02820.

99000-99047-601

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 46410-02400.

46410-02402

Unavailable

16

BOLT This part replaces 01107-06108.

01500-06107

$2.06

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

21

NO DESCRIPTION AVAILABLE | OPT This part replaces 46500-43810.

99000-99047-F00

Unavailable

22

LOCK ASSY, HELMET

95700-02410

Unavailable
