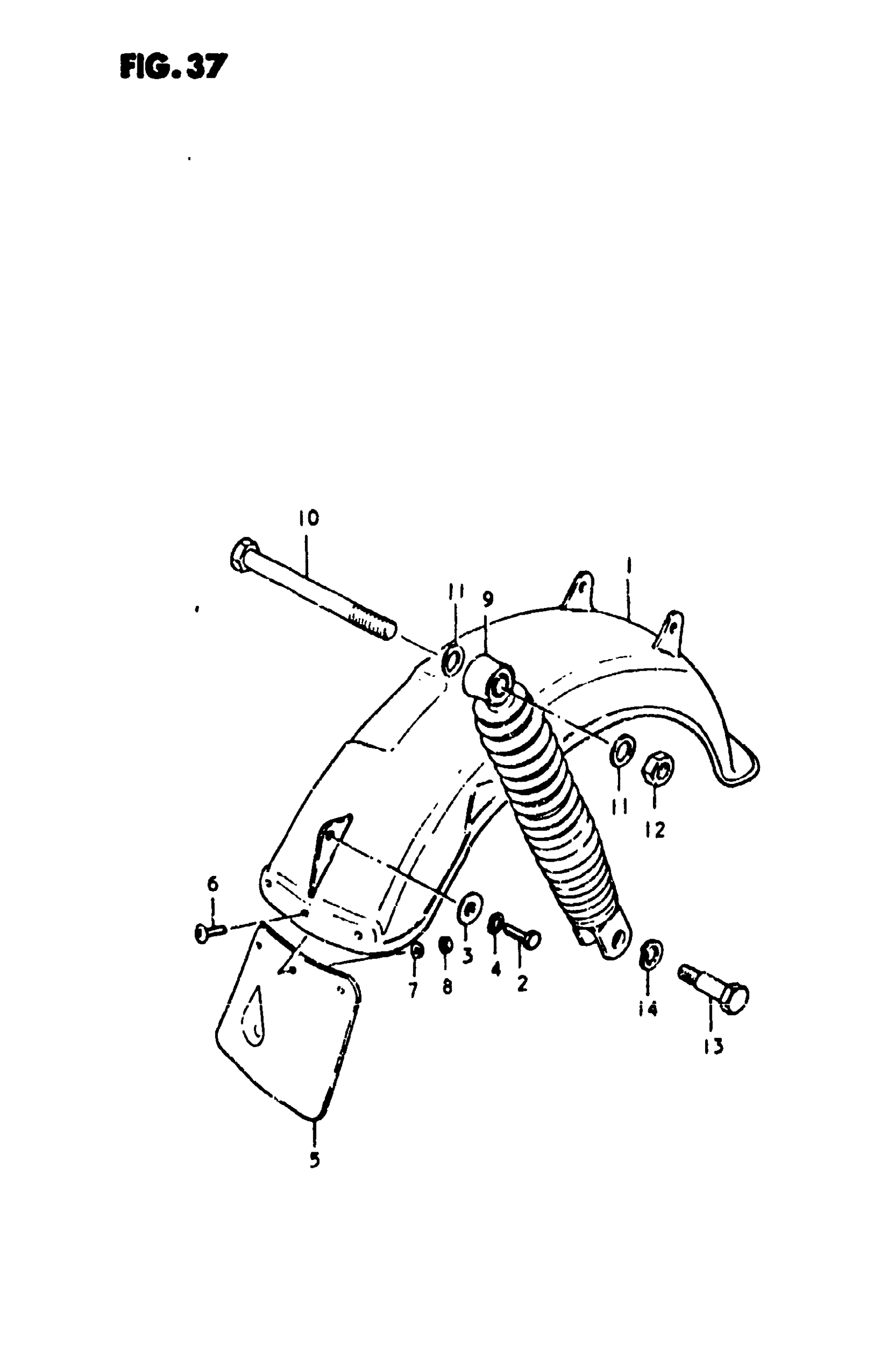

Suzuki FZ50 (1981) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (WHITE) | MODEL N

63111-02401-189

Unavailable

1

FENDER, REAR (WHITE) | MODEL T, X

63111-02410-189

Unavailable

2

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

3

WASHER

09169-06016

$1.65

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

MUD FLAP

63411-02400

Unavailable

6

SCREW

02142-05107

$1.49

7

WASHER This part replaces 08322-21058.

08322-01057

$2.13

8

NUT This part replaces 08310-11058.

08310-00057

$1.84

9

ABSORBER ASSY, REAR SHOCK | MODEL N, T This part replaces 62100-02401.

62100-02410

Unavailable

9

ABSORBER ASSY, REAR SHOCK | MODEL X

62100-02410

Unavailable

10

BOLT, UPPER

09100-12113

Unavailable

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

$3.05

13

BOLT LOWER | MODEL N,T

09111-10002

Unavailable

13

BOLT, LOWER | MODEL X This part replaces 09100-10107.

09117-10017

$3.27

14

LOCK WASHER | MODEL N,T This part replaces 08321-21128.

08321-01127

$2.06

14

LOCK WASHER | MODEL X This part replaces 08321-21108.

08321-01107

$1.84
