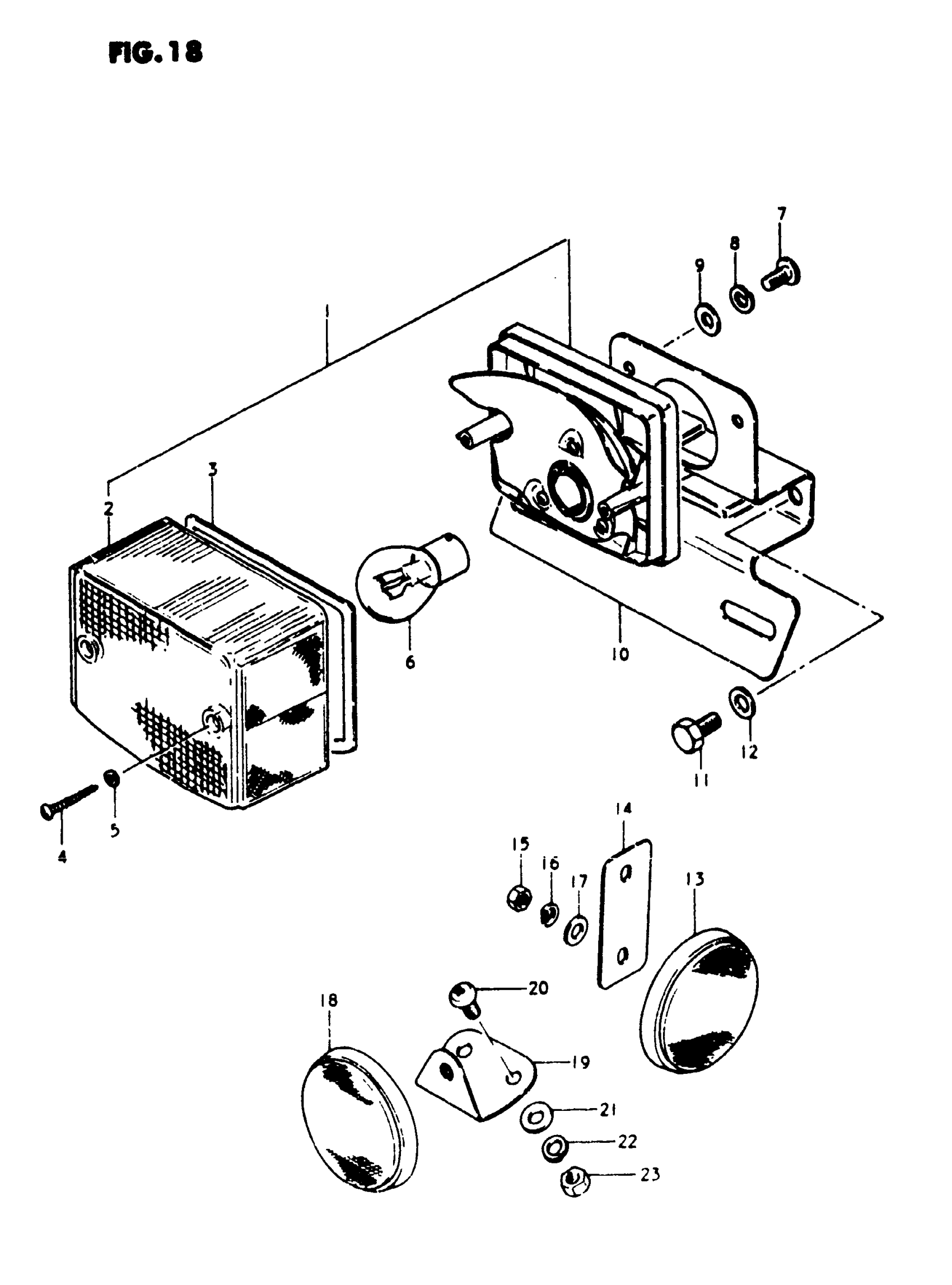

Suzuki FZ50 (1981) REAR COMBINATION LAMP Diagram

#

Description
Price

LAMP UNIT,RR CO | Includes Item(s) 1 - 10 This part replaces 35710-02410.

35720-37430-999

Unavailable

1

LAMP UNIT,RR CO This part replaces 35720-02410.

35720-37430-999

Unavailable

2

LENS

35712-48510

$65.02

3

GASKET

35713-48510

$6.17

4

SCREW This part replaces 35625-49030.

03211-04306

$1.78

5

GASKET

35627-43010

$2.28

6

BULB (6V,21/3CP)

09471-06009

$3.99

7

SCREW This part replaces 02112-05128.

02112-05127

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

BRACKET This part replaces 35726-02410.

35726-02411

Unavailable

11

BOLT This part replaces 01107-06108.

01500-06107

$2.06

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

14

BRACKET

45217-45001

Unavailable

15

NUT This part replaces 08310-11058.

08310-00057

$1.84

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

WASHER This part replaces 08322-21058.

08322-01057

$2.13

18

REFLECTOR ASSY, RR SIDE This part replaces 35970-45611.

35970-30910

$44.56

19

BRACKET | MODEL N This part replaces 35974-02400.

35974-02401

Unavailable

19

BRACKET | MODEL T,N

35974-02401

Unavailable

20

SCREW This part replaces 02112-06128.

02112-06127

$1.84

21

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

.NUT This part replaces 08310-11068.

08310-00067

$2.13
