Description

Price

1

GRIP, LH

57211-46111

$11.44

2

SWITCH ASSY, LH HANDLE | Includes Item(s) 3 - 17

57500-02220

Unavailable

3

LEVER, BRAKE

57621-27500

$27.53

4

SCREW This part replaces 57431-01011.

57431-01012

$4.93

5

SCREW This part replaces 57633-27500.

08319-21057

$2.25

6

KNOB, DIMMER

57320-27500

$9.17

7

SCREW This part replaces 02132-03068.

02122-03067

$1.81

8

KNOB, TURN SIGNAL

57651-27500

Unavailable

9

BUTTON, HORN

57371-45000

$5.10

10

CONTACT

57372-45000

$5.02

11

SPRING

57382-45000

$3.80

12

LEVER, STARTER This part replaces 58721-27502.

58721-27503

$9.97

13

BODY

58711-27500

$7.98

14

WASHER

58722-03010

$3.50

15

WASHER This part replaces 08322-21058.

08322-01057

$1.86

16

SCREW This part replaces 02112-05088.

02112-05087

$1.45

17

SCREW This part replaces 02112-05208.

02112-05207

$1.97

18

BAND (L:120) This part replaces 09407-12403.

09407-12402

$2.80

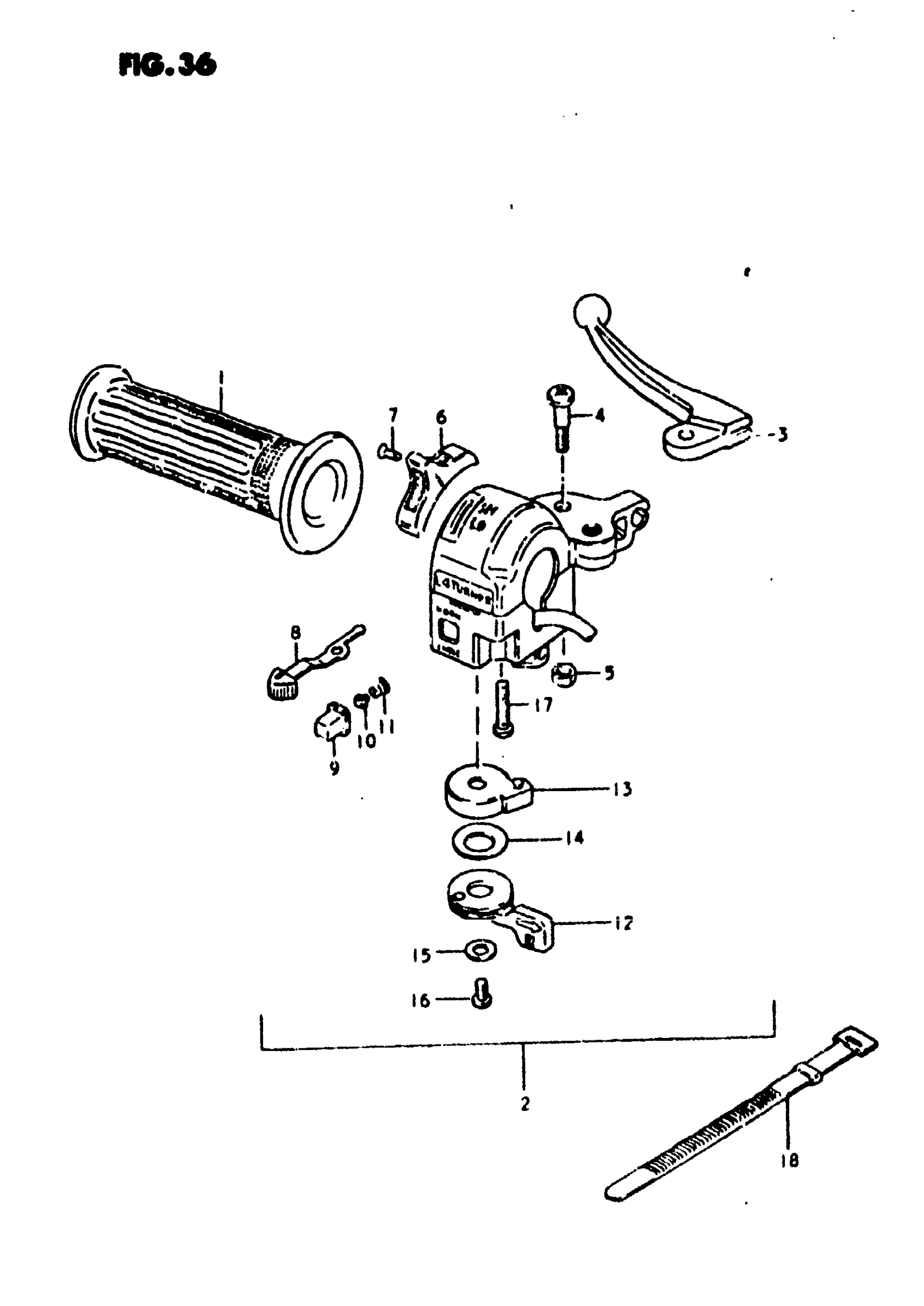

Suzuki FZ50 (1981) REAR BRAKE - HANDLE SWITCH (FZ50X) Diagram
