Description

Price

1

GRIP, LH | MODEL N This part replaces 57211-46110.

57211-46111

$12.15

1

GRIP, LH | MODEL T

57211-46111

$12.15

2

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 57500-02410.

57500-02412

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL T; Includes Item(s) 3 - 16 This part replaces 57500-02411.

57500-02412

Unavailable

3

LEVER, BRAKE

57621-27500

$25.27

4

SCREW This part replaces 57431-01011.

57431-01012

$5.24

5

SCREW This part replaces 57633-27500.

08319-21057

$2.07

6

KNOB, DIMMER SWITCH

57320-27500

$8.12

7

SCREW This part replaces 02132-03068.

02122-03067

$1.80

8

BUTTON, HORN

57371-45000

$4.52

9

CONTACT

57372-45000

$4.45

10

SPRING

57382-45000

$3.37

11

LEVER, STARTER This part replaces 58721-27502.

58721-27503

$7.51

12

BODY, LEVER

58711-27500

$6.03

13

WASHER, WAVE

58722-03010

$3.71

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

SCREW This part replaces 02112-05088.

02112-05087

$1.49

16

SCREW This part replaces 02112-05208.

02112-05207

$1.97

17

BAND (L:120) This part replaces 09407-12403.

09407-12402

$3.04

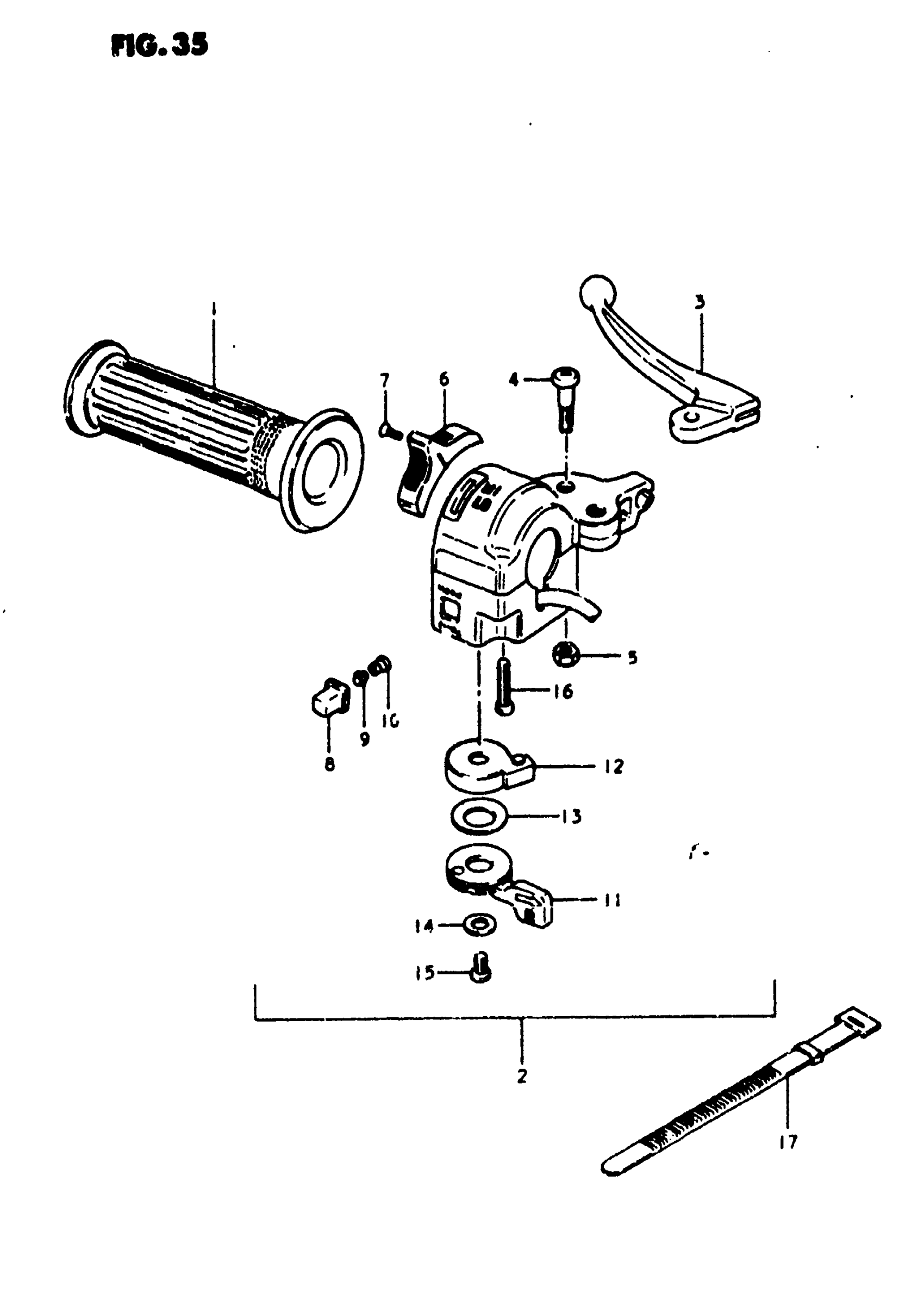

Suzuki FZ50 (1981) REAR BRAKE - HANDLE SWITCH (FZ50N Diagram
