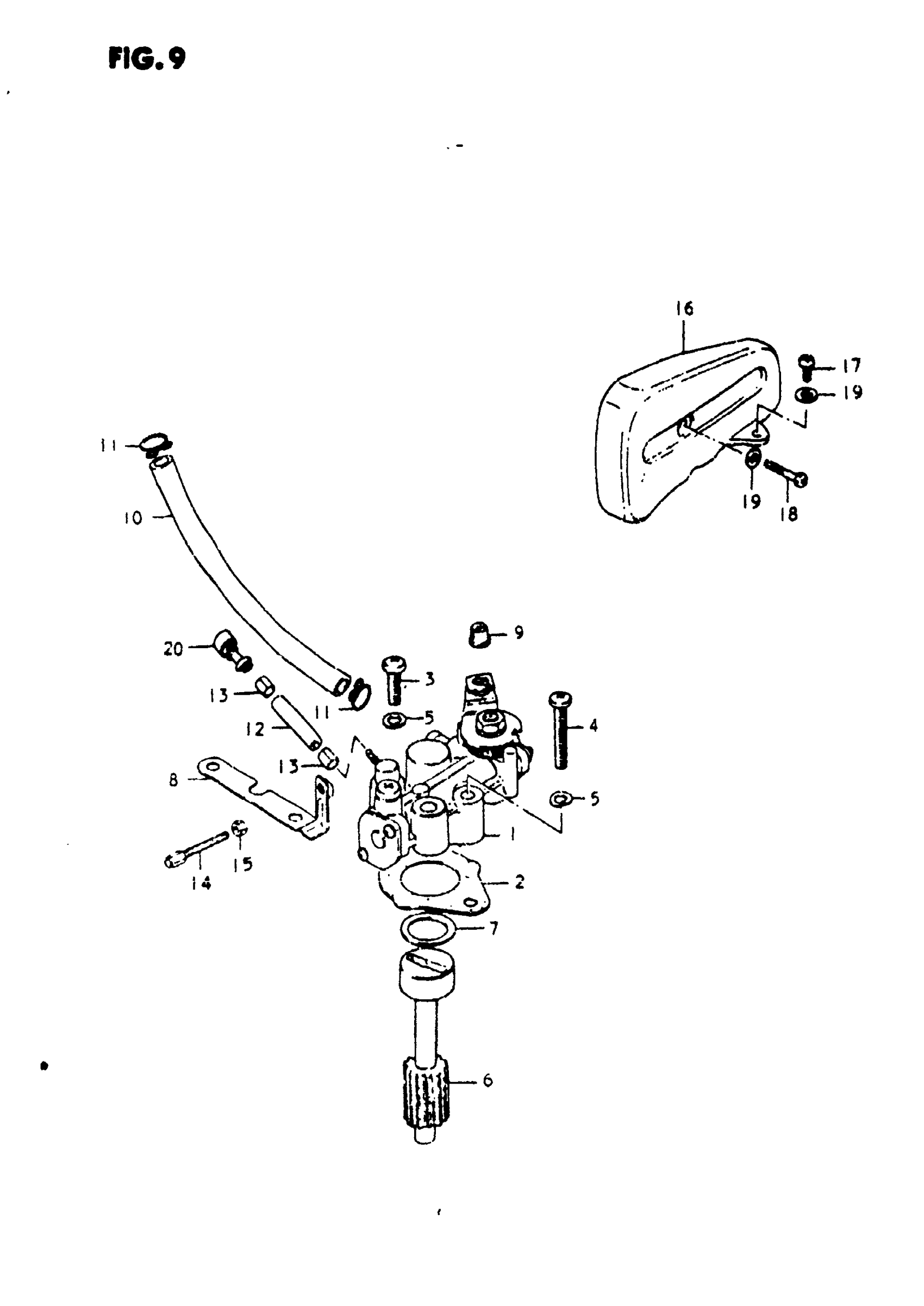

Suzuki FZ50 (1981) OIL PUMP Diagram

#

Description
Price

1

PUMP, OIL

16100-02410

Unavailable

2

GASKET

16731-03101

$2.81

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

GEAR, DRIVEN (NT:14) This part replaces 16331-02302.

16331-02303

Unavailable

7

WASHER

08212-16202

Unavailable

8

BRACKET, CABLE | MODEL N This part replaces 16290-02401.

16290-02402

Unavailable

8

BRACKET, CABLE | MODEL T, X

16290-02402

Unavailable

9

TERMINAL, CABLE This part replaces 16292-03111.

16292-03112

$5.05

10

HOSE(4.5X8.5X60 This part replaces 09343-04033.

09355-45001-600

$9.48

11

CLAMP

09401-08401

$1.54

12

HOSE(2X5X600) This part replaces 09343-02028.

09352-20504-600

$6.70

13

CLAMP

09401-04401

$2.06

14

ADJUSTER, CABLE

09119-08014

$3.55

15

NUT This part replaces 08310-12088.

08310-00087

$2.13

16

COVER, OIL PUMP

11411-02402

$11.30

17

SCREW This part replaces 02112-05128.

02112-05127

$1.97

18

SCREW This part replaces 02112-05358.

02112-05357

$1.49

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13

20

UNION, OIL HOSE | MODEL X This part replaces 16910-31000.

16910-31010

$6.64
