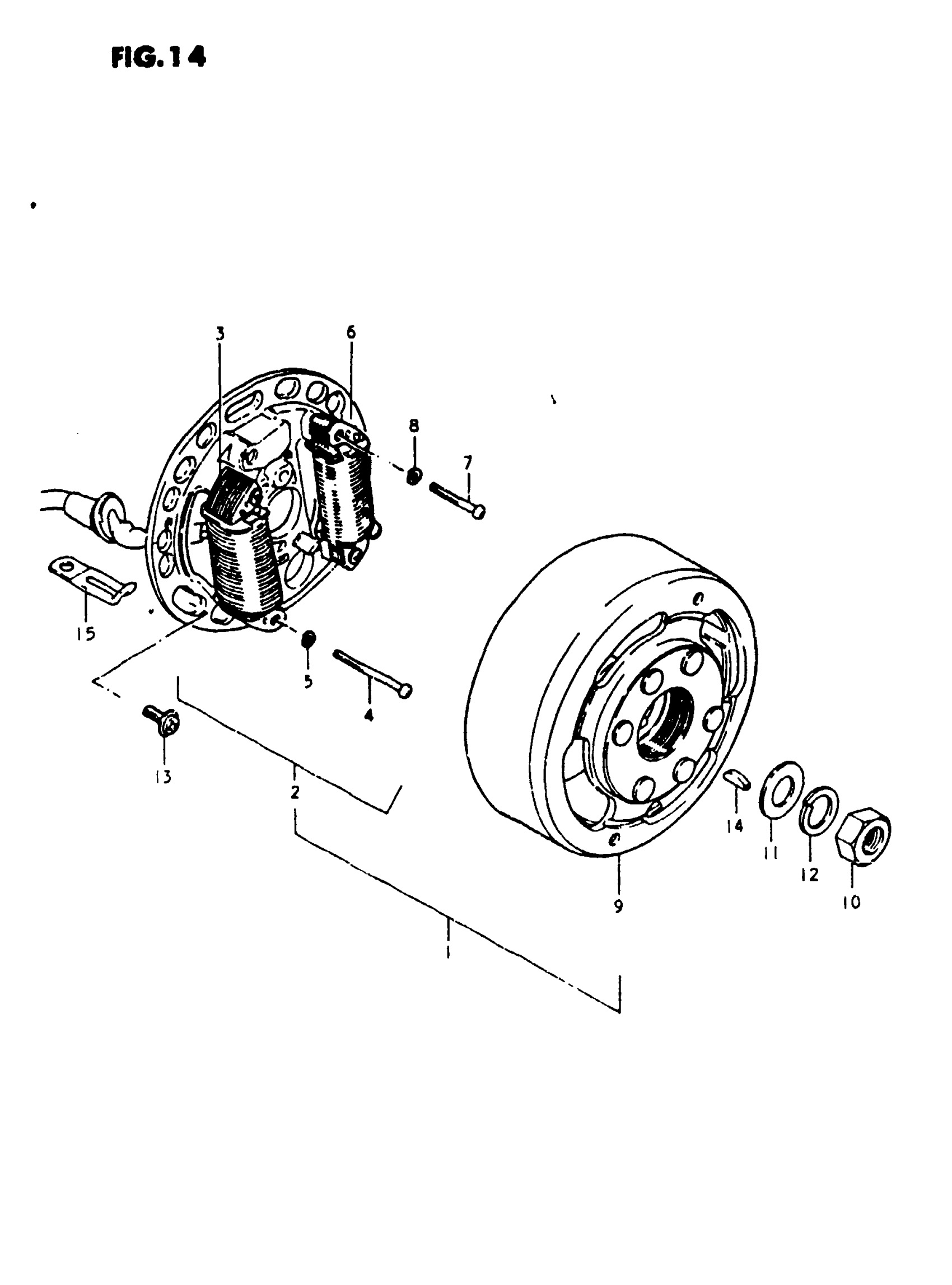

Suzuki FZ50 (1981) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL N

32100-02420

Unavailable

1

MAGNETO ASSY | MODEL T

32100-02421

Unavailable

1

MAGNETO ASSY | MODEL X; Includes Item(s) 2 - 9

32100-02422

Unavailable

2

STATOR ASSY | MODEL N This part replaces 32101-02420.

32101-02422

Unavailable

2

STATOR ASSY | MODEL T

32101-02421

Unavailable

2

STATOR ASSY | MODEL X

32101-02422

Unavailable

3

COIL, LIGHTING

32120-02420

Unavailable

4

SCREW (4X30) This part replaces 02112-04308.

09125-04023

$2.30

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

COIL, PRIMARY This part replaces 32140-02420.

32140-22A00

Unavailable

7

SCREW This part replaces 02112-04208.

02112-0420A

$1.49

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

ROTCR | MODEL N This part replaces 32102-02420.

32102-02423

Unavailable

9

ROTCR | MODEL T This part replaces 32102-02421.

32102-02423

Unavailable

9

ROTCR | MODEL X This part replaces 32102-02422.

32102-02423

Unavailable

10

NUT This part replaces 09140-10003.

09140-10041

$2.38

11

WASHER This part replaces 08322-21108.

08322-01107

$2.15

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

13

SCREW

09139-05011

$2.38

14

KEY

08341-31039

$1.89

15

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
