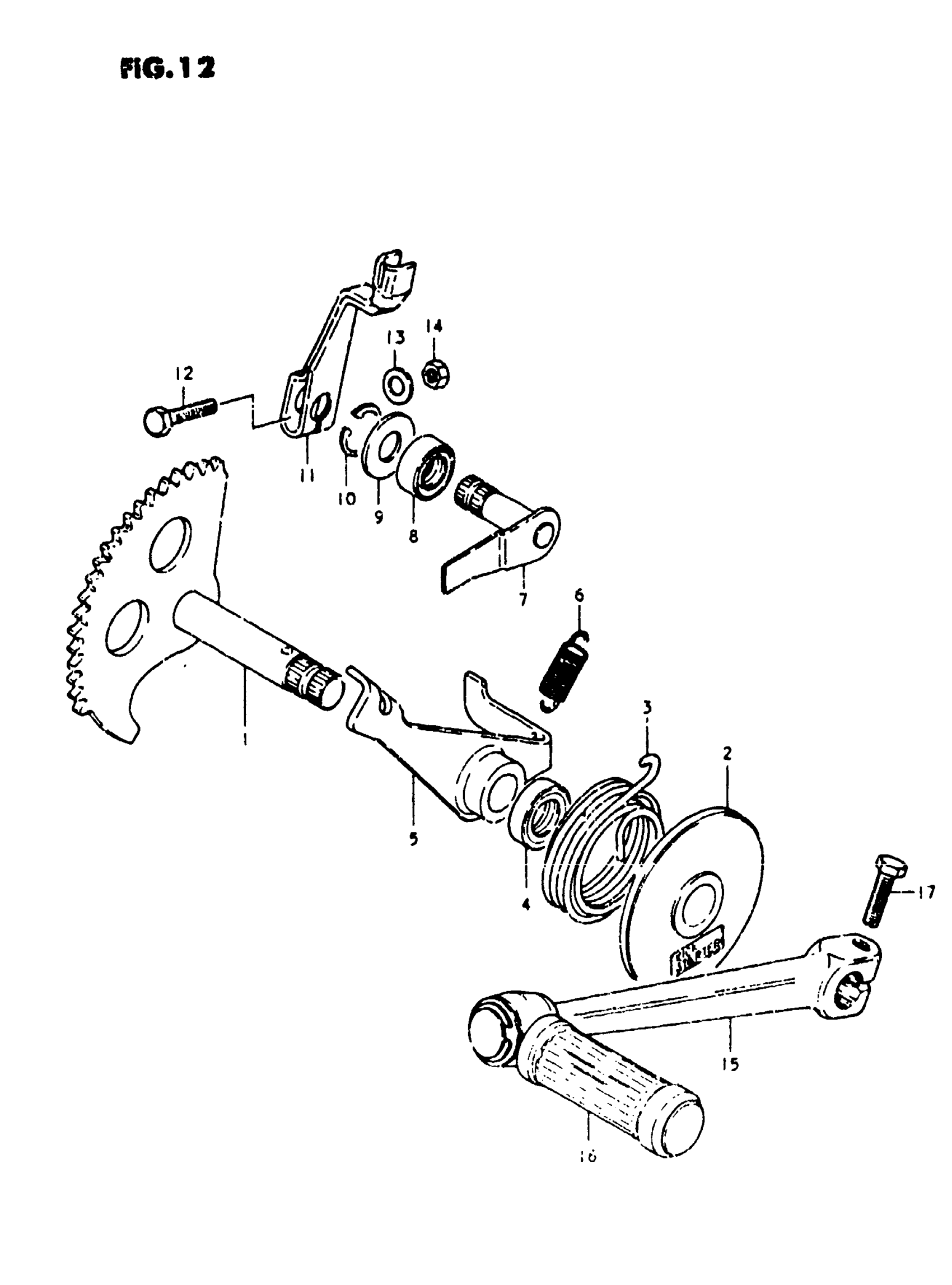

Suzuki FZ50 (1981) KICK STARTER (FZ50N) Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26210-02402

Unavailable

2

GUIDE, SPRING

26221-02301

Unavailable

3

SPRING

09448-48002

Unavailable

4

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

5

GUIDE, KICK STARTER This part replaces 26232-02300.

26232-02301

Unavailable

6

SPRING

09443-10018

Unavailable

7

LIFTER

26233-02300

Unavailable

8

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

9

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

10

E RING This part replaces 08332-11108.

08332-1110A

$1.80

11

LEVER, KICK STARTER LIFTER This part replaces 26236-02301.

26236-02400

Unavailable

12

BOLT This part replaces 01107-06258.

01500-06257

$1.97

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

.NUT This part replaces 08310-11068.

08310-00067

$2.13

15

LEVER ASSY, KICK STARTER | Includes Item(s) 16 This part replaces 26300-02301.

26300-02302

Unavailable

16

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

17

BOLT This part replaces 09100-06091.

01500-06207

$2.28
