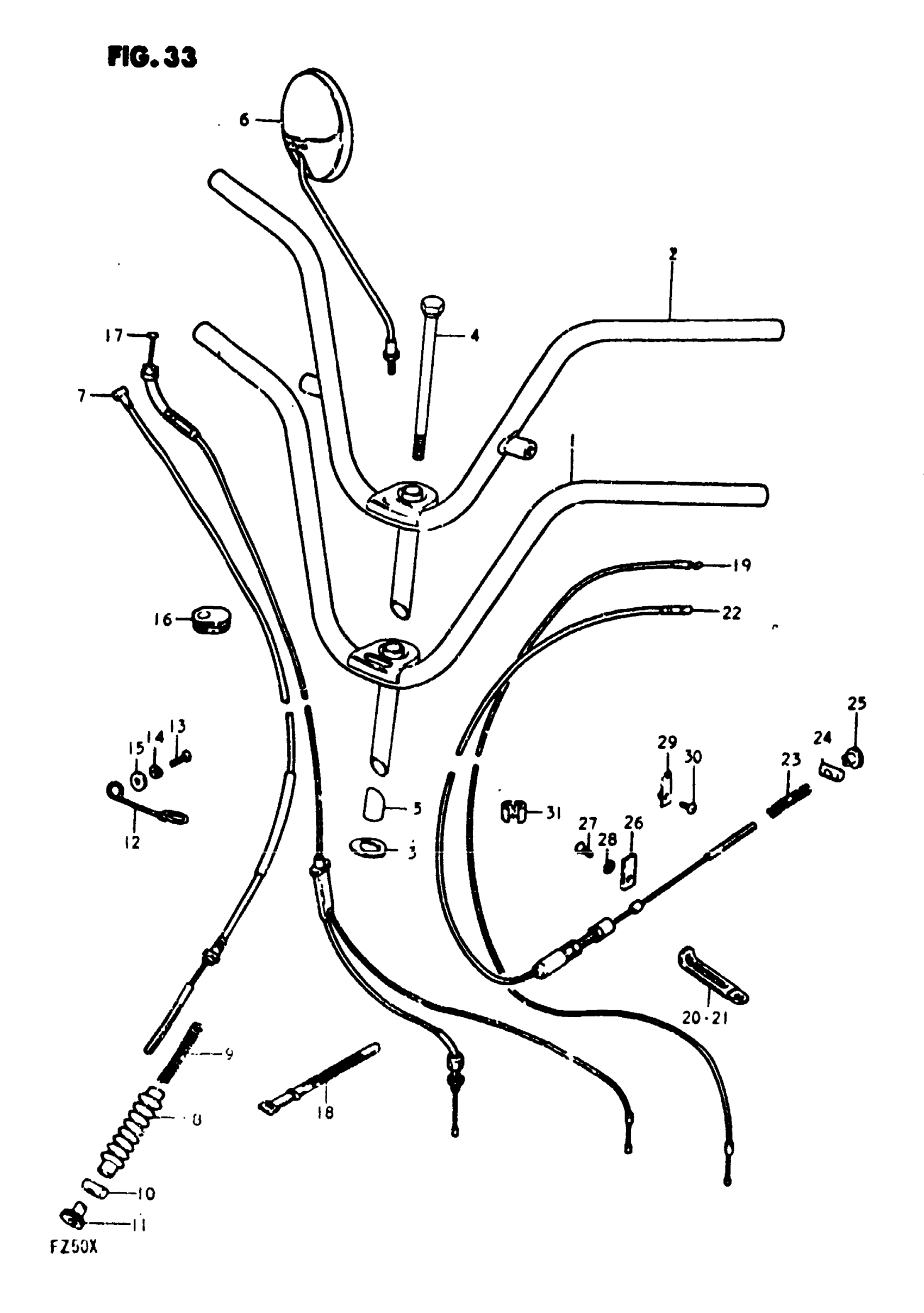

Suzuki FZ50 (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL N,T

56110-02410

Unavailable

2

HANDLEBAR | MODEL X

56110-02402

Unavailable

3

STOP, HANDLEBAR BRACKET | MODEL T,X

56134-17200

Unavailable

4

BOLT

09111-12003

Unavailable

5

STOP, HANDLE EXPANDER | MODEL N This part replaces 56251-02400.

56251-02401

Unavailable

5

STOP | MODEL T,X

56251-02401

Unavailable

6

MIRROR ASSY,REA This part replaces 56500-35011.

56500-35611

$189.20

7

CABLE,FR BRAKE | Includes Item(s) 8 - 11 This part replaces 58100-02400.

58100-23441

Unavailable

8

DUST SEAL

09287-07001

$2.00

9

SPRING

09440-06003

$2.44

10

PIN

09209-10001

$1.49

11

NUT This part replaces 09150-05004.

09150-05101

$3.04

12

CLAMP

58626-02401

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

GROMMET

09308-06007

Unavailable

17

CABLE, THROTTLE | MODEL N This part replaces 58300-02410.

58300-02413

Unavailable

17

CABLE, THROTTLE | MODEL T, X This part replaces 58300-02411.

58300-02413

Unavailable

18

BAND (L:120) This part replaces 09407-12403.

09407-12402

$3.04

19

CABLE,STARTER This part replaces 58410-02402.

58410-02403

$16.93

20

CLAMP(L:80) | MODEL N, T This part replaces 09404-06404.

09404-06036

$1.74

21

CLAMP | MODEL X This part replaces 09404-06403.

09404-06039

$1.74

22

CABLE,REAR BRAK | MODEL N This part replaces 58510-02410.

58510-02423

Unavailable

22

CABLE,REAR BRAK | MODEL T This part replaces 58510-02420.

58510-02423

Unavailable

22

CABLE,REAR BRAK | MODEL X This part replaces 58510-02421.

58510-02423

Unavailable

23

SPRING This part replaces 09440-06019.

09440-06019-XC0

$2.75

24

PIN

09209-10001

$1.49

25

NUT This part replaces 09150-05004.

09150-05101

$3.04

26

PLATE, CABLE ADJUSTER

58574-02401

Unavailable

27

SCREW | MODEL N This part replaces 02122-06108.

02122-0610A

$1.68

28

LOCK WASHER | MODEL T ~F.NO. 162628

08323-31068

Unavailable

29

PLATE | MODEL T ~F.NO. 162629 This part replaces 58570-02500.

58570-02501

Unavailable

30

SCREW | MODEL X This part replaces 02112-06208.

02112-06207

$1.78

31

CLIP, CABLE

09408-00002

$2.30
