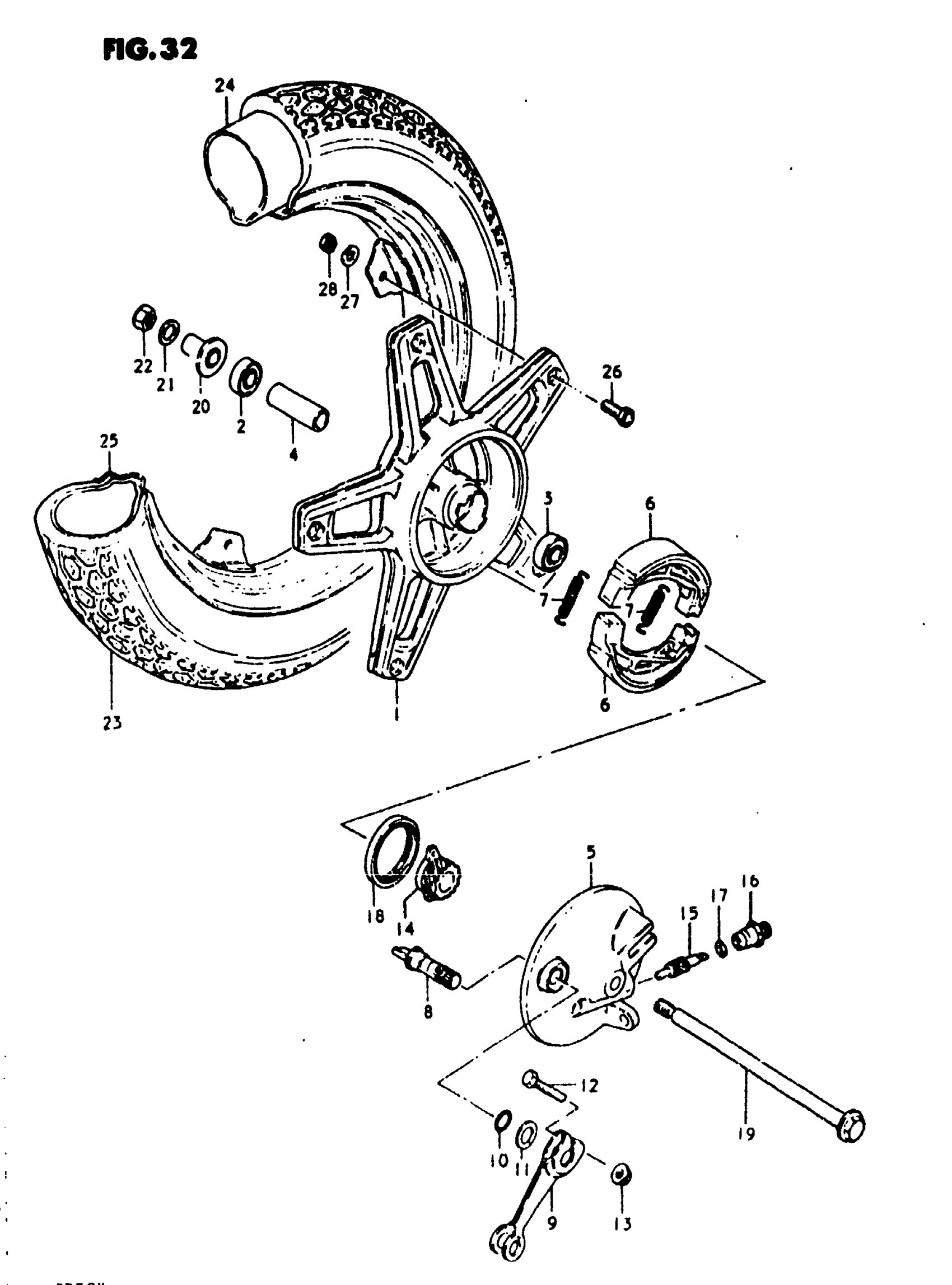

Suzuki FZ50 (1981) FRONT WHEEL (FZ50T F.NO.170667-)(FZ50X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54110-02400-126.

54110-02401

Unavailable

2

BEARING This part replaces 08123-62007.

08123-6200B

$9.71

3

BEARING, LH

08143-60007

$16.83

4

SPACER

54731-02400

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 54210-02402.

54210-02403

Unavailable

6

SHOE SET,BRAKE This part replaces 54410-02410.

54400-02860

Unavailable

7

SPRING This part replaces 09443-07001.

09443-07025

$2.08

8

CAM, BRAKE

54441-02400

Unavailable

9

LEVER, CAM

54451-02002

Unavailable

10

O RING

09280-12001

$2.90

11

WASHER

09160-12011

$1.54

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

NUT This part replaces 08316-16068.

08319-31067

$2.03

14

GEAR, SPEEDOMETER (NT:16)

54611-02201

Unavailable

15

PINION,SPEEDOME This part replaces 54621-02201.

54621-02400

Unavailable

16

BUSH This part replaces 54632-02200.

54632-02201

$11.83

17

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

18

OIL SEAL

09285-34002

$4.86

19

AXLE, FRONT

54711-02410

Unavailable

20

SPACER, RH

54740-02400

Unavailable

21

WASHER This part replaces 08322-11108.

08322-01107

$2.15

22

NUT This part replaces 08319-21108.

09159-10027

$3.10

23

TIRE, FRONT | IRC This part replaces 55100-02410.

55100-02401

Unavailable

24

TUBE, INNER

65200-46410

$27.63

25

RIM, WHEEL This part replaces 55310-02410-126.

55310-02410-13L

$131.82

26

BOLT

09100-08091

Unavailable

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

NUT This part replaces 08310-12088.

08310-00087

$2.13
