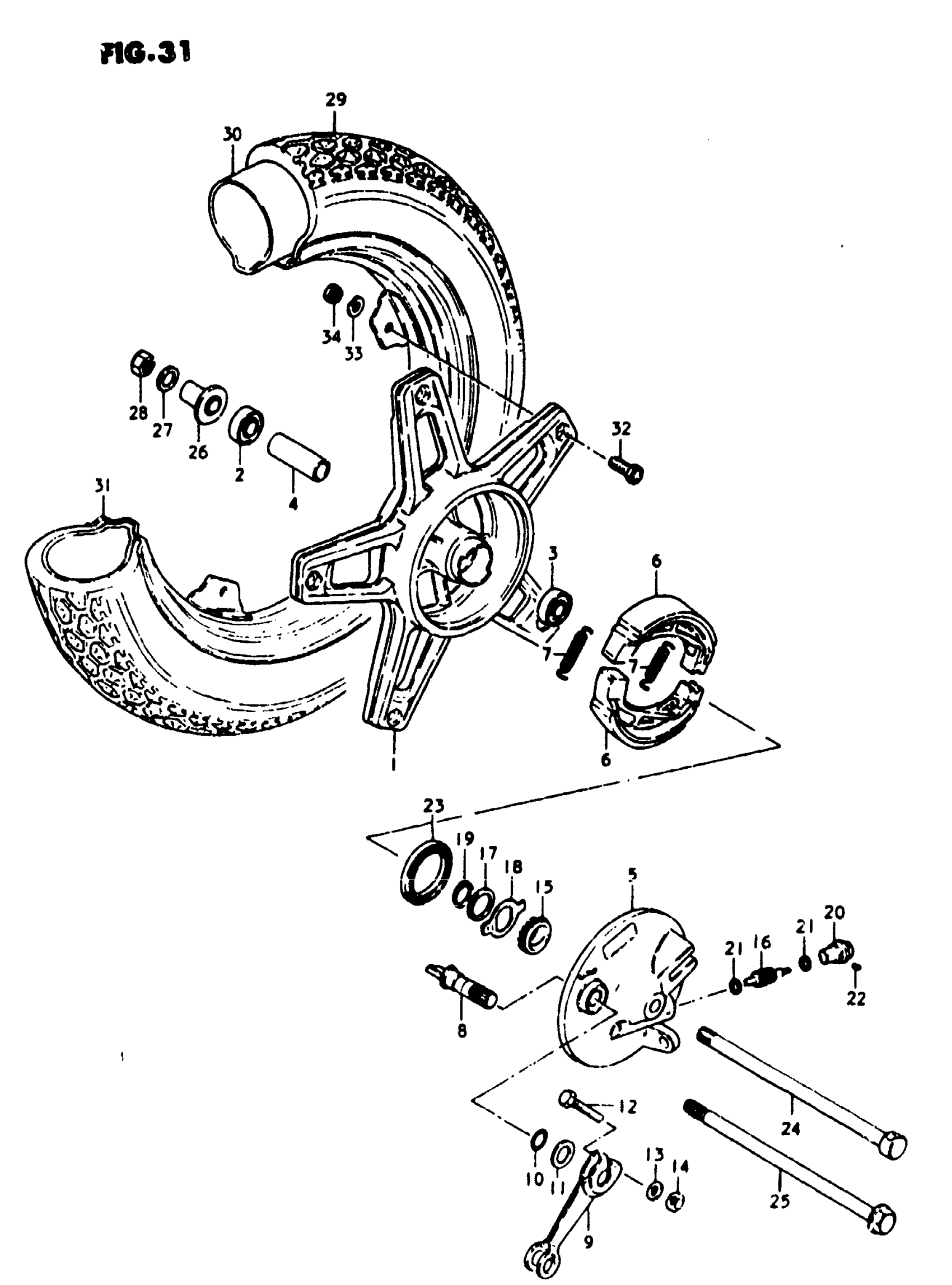

Suzuki FZ50 (1981) FRONT WHEEL (FZ50N)(FZ50T -F.NO.170666) Diagram

NO DESCRIPTION AVAILABLE This part replaces 54110-02400-126.

54110-02401

Unavailable

BEARING This part replaces 08123-62007.

08123-6200B

$9.71

BEARING, LH

08143-60007

$16.83

SPACER

54731-02400

Unavailable

PANEL, ANCHOR

54210-02401-126

Unavailable

SHOE SET,BRAKE This part replaces 54410-02410.

54400-02860

Unavailable

SPRING This part replaces 09443-07001.

09443-07025

$2.08

CAM, BRAKE

54441-02400

Unavailable

LEVER, CAM

54451-02002

Unavailable

O RING

09280-12001

$2.90

WASHER

09160-12011

$1.54

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

WASHER This part replaces 08322-21068.

08322-01067

$2.13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

GEAR, DRIVE (NT : 20)

54611-02400

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 54621-24900.

54621-27601

Unavailable

THRUST WASHER

09160-16005

Unavailable

DRIVER

54664-02400

Unavailable

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

BUSH

54632-01001

$12.80

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

OIL SEAL

09285-34002

$4.86

AXLE, FRONT | MODEL N This part replaces 54711-02400.

54711-02410

Unavailable

AXLE, FRONT | MODEL T

54711-02410

Unavailable

SPACER, RH

54740-02400

Unavailable

WASHER This part replaces 08322-11108.

08322-01107

$2.15

NUT This part replaces 08319-21108.

09159-10027

$3.10

TIRE, FRONT | IRC This part replaces 55100-02410.

55100-02401

Unavailable

TUBE, INNER

65200-46410

$27.63

RIM, WHEEL This part replaces 55310-02410-126.

55310-02410-13L

$131.82

BOLT

09100-08091

Unavailable

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

NUT This part replaces 08310-12088.

08310-00087

$2.13
