Partiron

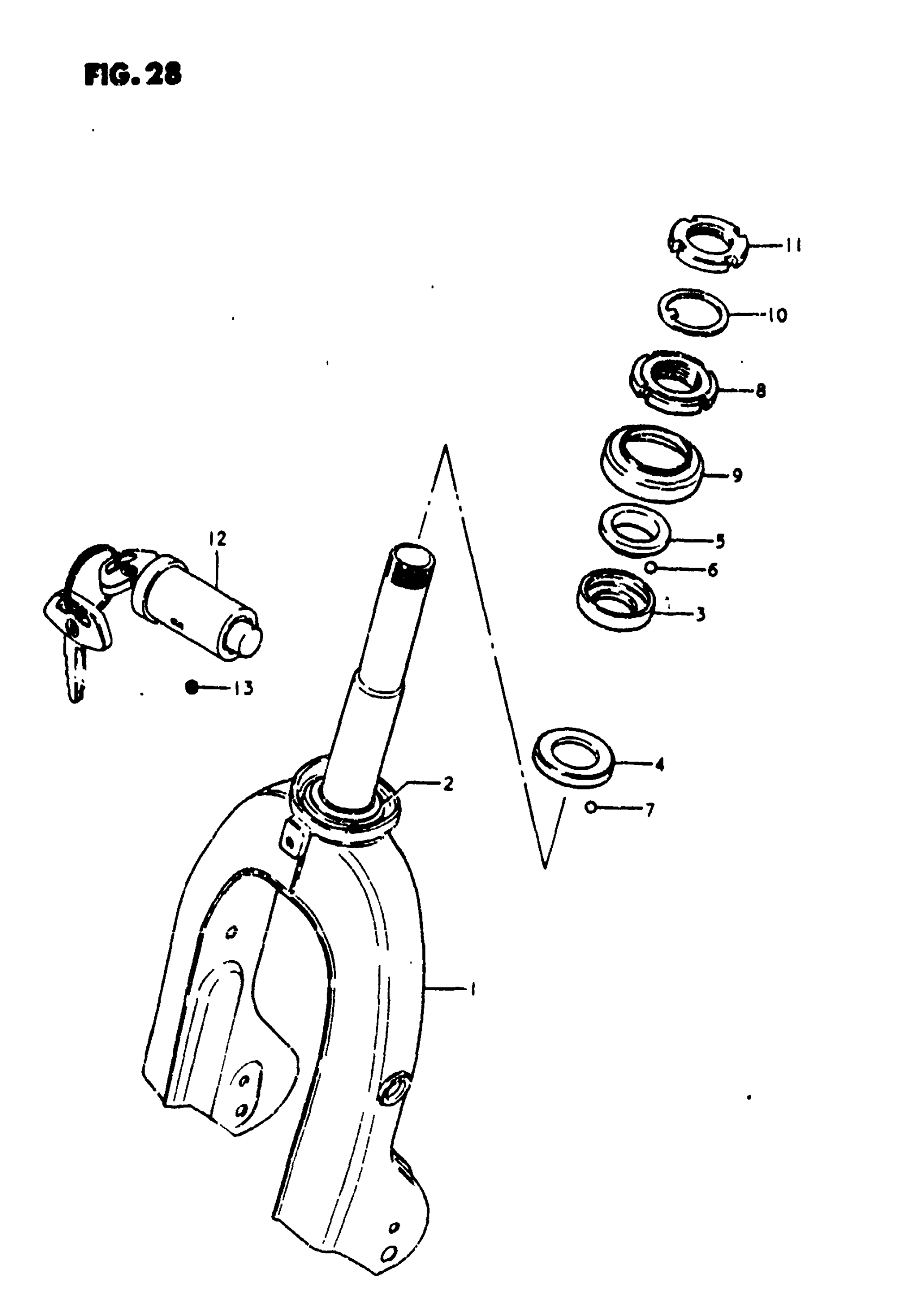

Suzuki FZ50 (1981) FRONT FORK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 51200-02820-00B.

51200-02821-799

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 51200-02821-07P.

51200-02821-799

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 2 This part replaces 51200-02821-07S.

51200-02821-799

Unavailable

2

RACE, OUTER LOWER

51622-04000

Unavailable

3

RACE,STEERING INNER UPPER

51611-20002

$11.95

4

RACE, INNER LOWER

51612-04000

Unavailable

5

RACE,STEERING OUTER UPPER

51621-28000

$11.95

6

STEEL BALL

06111-06003

$1.49

7

STEEL BALL

06111-06003

$1.49

8

NUT, STEM

51631-28000

$17.37

9

DUST SEAL,STEERING UPPER

51643-25001

$4.43

10

WASHER

09166-26001

$2.07

11

NUT

51632-02400

$16.87

12

LO ASSY, STEERING This part replaces 51900-02410.

51900-02411

Unavailable

13

SCREW

09134-06009

$2.38
