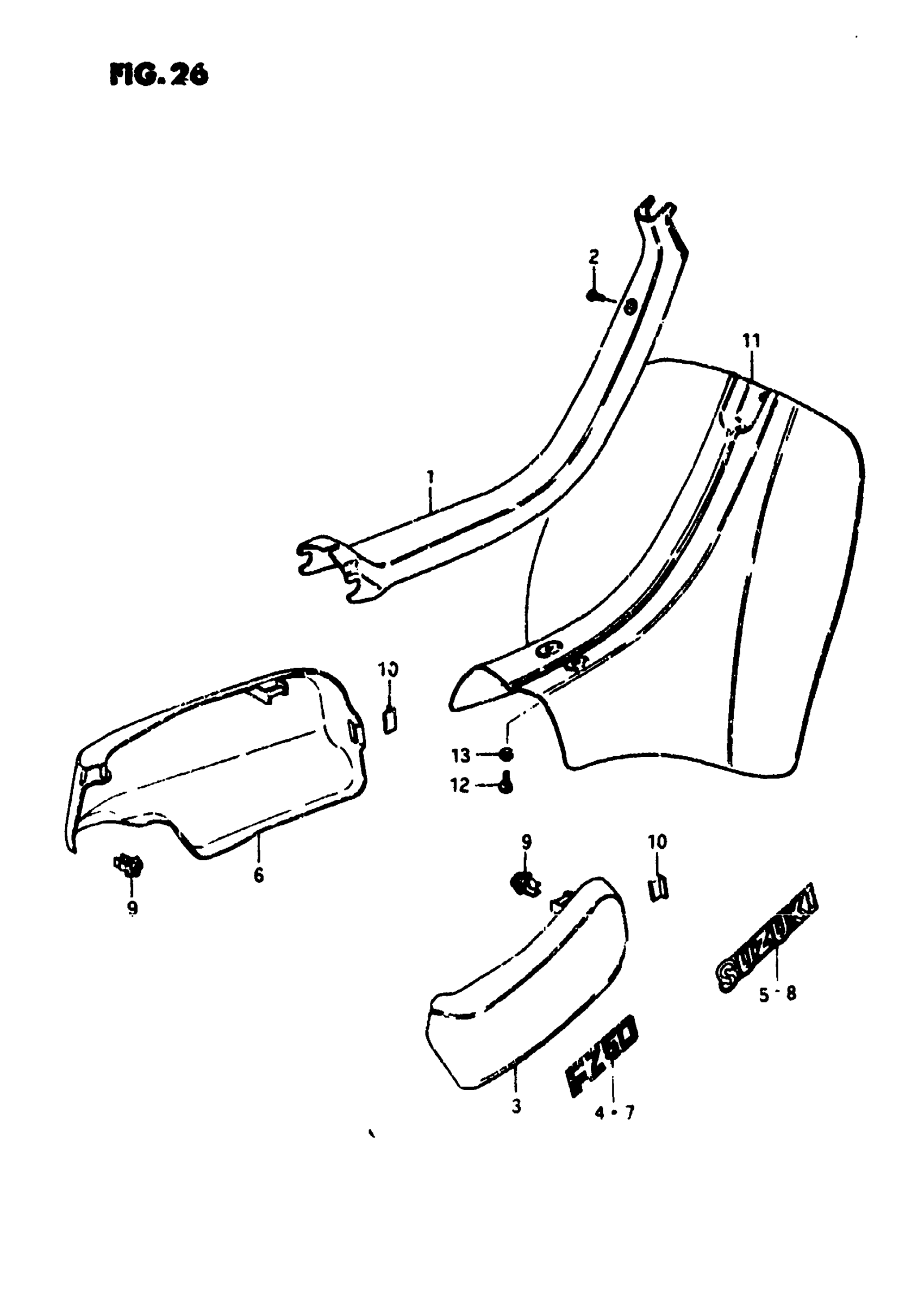

Suzuki FZ50 (1981) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME FRONT (WHITE)

47181-02401-189

Unavailable

2

SCREW

02142-05087

$1.49

3

COVER,FRAME,RH | MODEL N This part replaces 47111-02401-00B.

47111-02401

Unavailable

3

COVER,FRAME,RH | MODEL T This part replaces 47111-02401-07P.

47111-02401

Unavailable

3

COVER,FRAME,RH | MODEL X This part replaces 47111-02401-07S.

47111-02401

Unavailable

4

EMBLEM, FRAME COVER | MODEL N

68131-02410

Unavailable

5

EMBLEM, FRAME COVER | MODEL T, X

68131-02420

Unavailable

6

COVER,FRAME LH | MODEL N This part replaces 47211-02401-00B.

47211-02401

Unavailable

6

COVER,FRAME LH | MODEL T This part replaces 47211-02401-07P.

47211-02401

Unavailable

6

COVER,FRAME LH | MODEL X This part replaces 47211-02401-07S.

47211-02401

Unavailable

7

EMBLEM, FRAME COVER | MODEL N

68131-02410

Unavailable

8

EMBLEM, FRAME COVER | MODEL T, X

68131-02420

Unavailable

9

CLAMP

09403-07306

$2.75

10

CUSHION

47117-02400

$2.37

11

LEG SHIELD (WHITE)

48111-02400-189

$79.22

12

SCREW This part replaces 09128-06002.

02162-0616B

$2.03

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78
