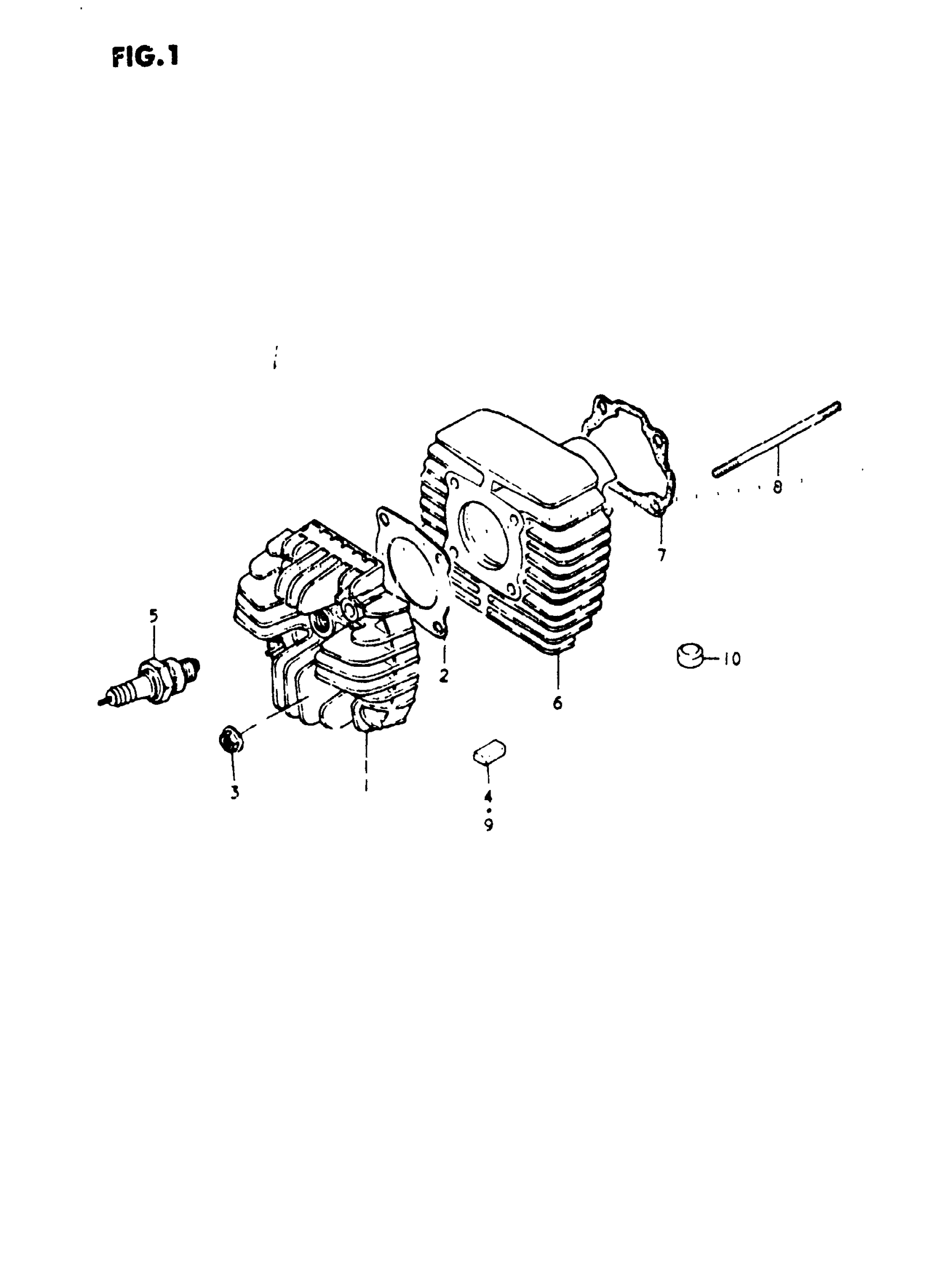

Suzuki FZ50 (1981) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-02302

Unavailable

2

GASKET

11141-06110

$5.05

3

NUT This part replaces 08316-16068.

08319-31067

$2.03

4

RUBBER PAD | MODEL N, T

11252-02300

Unavailable

5

SPARK PLUG BP4H This part replaces 09482-00170.

09482-00291

$3.11

5

SPARK PLUG (ND, W14FP-UL)

09482-00171

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 11211-02402.

11211-02440

Unavailable

7

GASKET,CYLINDER This part replaces 11241-02300.

11241-02310

$4.37

8

STUD BOLT (L:90) This part replaces 01421-06908.

09108-06108

$3.76

9

RUBBER PAD

11252-02300

Unavailable

10

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.25
