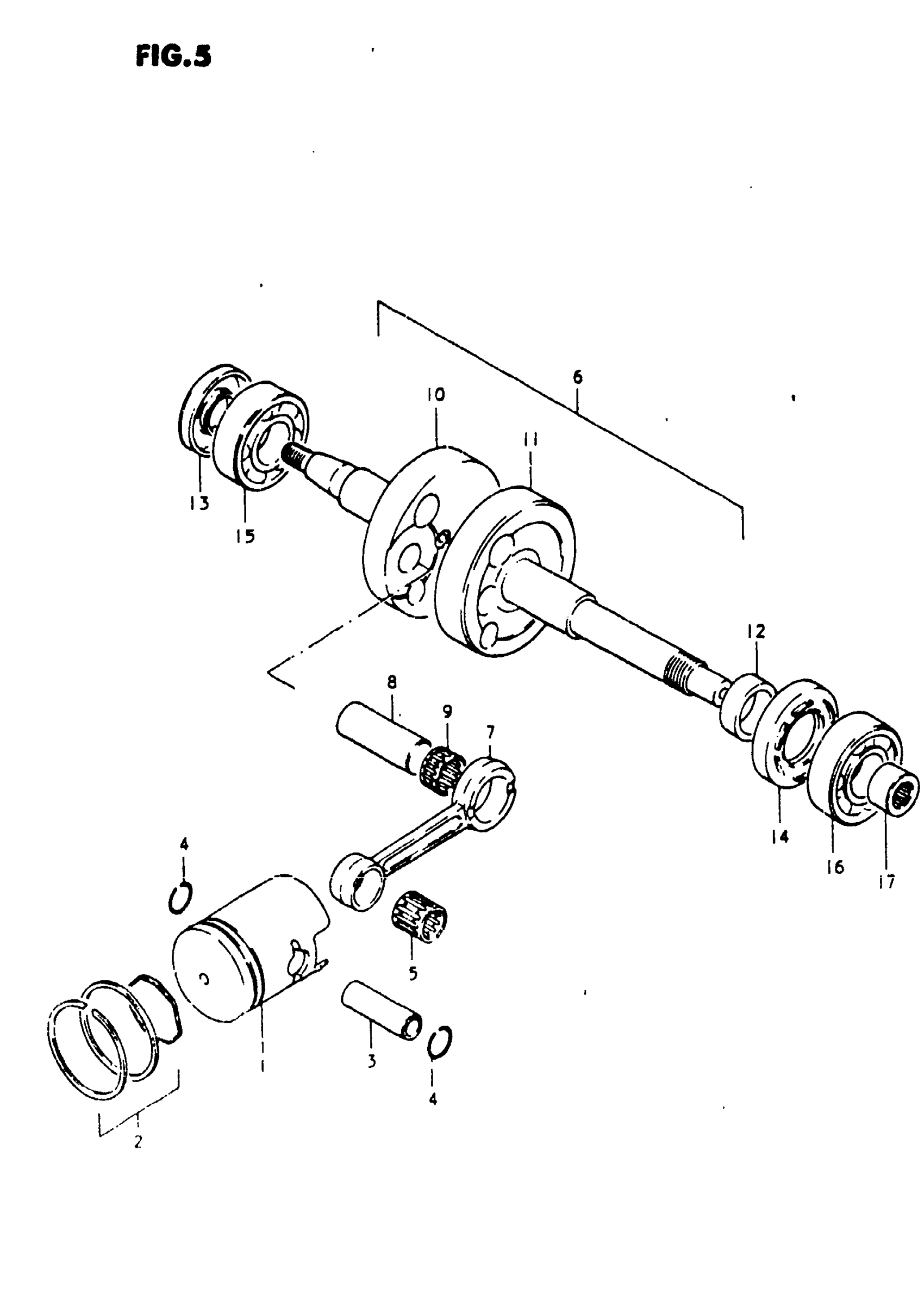

Suzuki FZ50 (1981) CRANKSHAFT Diagram

#

Description
Price

1

PISTON This part replaces 12110-35613.

12110-43000

$58.48

1

PISTON SET (OS:0.5) This part replaces 12110-35613-050.

12100-35611-050

$77.92

1

PISTON SET (OS:1.0) This part replaces 12110-35613-100.

12100-35611-100

$93.43

2

RING SET, PISTON (STD) This part replaces 12140-43000.

12140-16B10

$22.39

2

RING SET, PISTON (OS:0.5)

12140-46110-050

$28.25

2

RING SET, PISTON (OS:1.0)

12140-46110-100

$28.38

3

PIN, PISTON This part replaces 12151-02000.

12151-04700

$7.22

4

SNAP RING

09381-12001

$1.49

5

BEARING (12X16X16) This part replaces 09263-12003.

09263-12023

$10.19

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 12200-02311.

12200-02313

Unavailable

7

ROD, CONNECTING

12161-04001

$75.58

8

PIN, CRANK

12211-02300

Unavailable

9

BEARING

09263-15014

$14.07

10

CRANKSHAFT, RH | MODEL N, T This part replaces 12221-02310.

12221-02202

Unavailable

10

CRANKSHAFT, RH | MODEL X This part replaces 12221-02311.

12221-02202

Unavailable

11

CRANKSHAFT, LH

12261-02311

Unavailable

12

SPACER, LH

09180-20021

$9.93

13

OIL SEAL, RH This part replaces 09283-20033.

09283-20034

$5.18

14

OIL SEAL, LH This part replaces 09283-26013.

09283-26015

$6.17

15

BEARING, RH

09262-20048

$25.77

16

BEARING, DRIVE SHAFT LH This part replaces 09262-20019.

09262-20069

$23.28

17

BEARING, LH

09263-12014

$12.36
