1981 Suzuki FZ50 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1981 Suzuki FZ50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

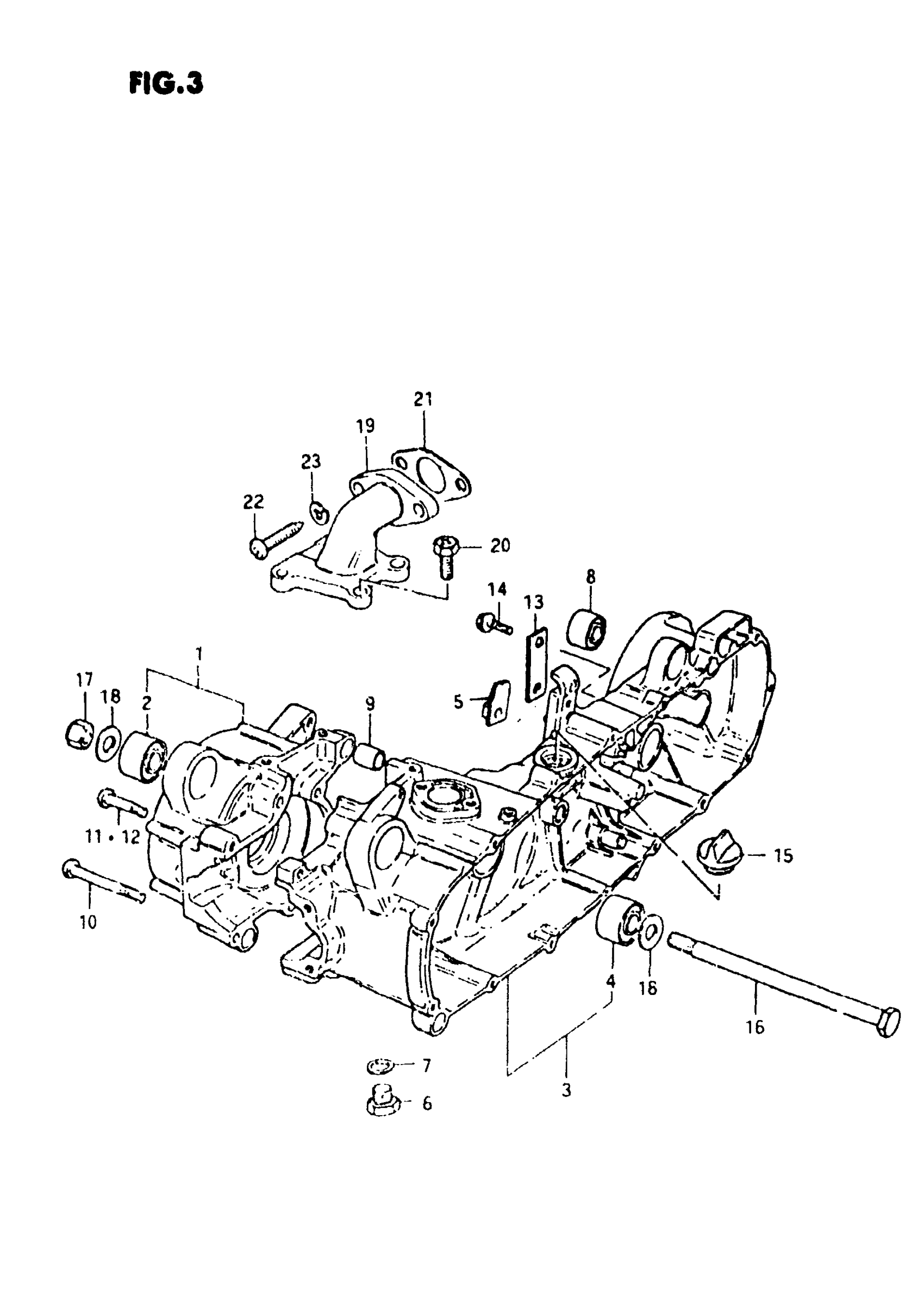

1981 Suzuki FZ50 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RH CRANKCASE SET | Includes Item(s) 2

11302-02820

1
Out of stock

2

1

$16.68

In stock

3

LH CRANKCASE SET | Includes Item(s) 4 - 7

11301-02843

1
Out of stock

4

1

$16.68

In stock

5

PLATE This part replaces 58570-02500.

58570-02501

1
Out of stock

6

PLUG, OIL DRAIN

09247-10001

1
Out of stock

7

GASKET

09168-10002

1
Out of stock

8

BUSH, REAR SHOCK ABSORBER

09319-10032

1
Out of stock

9

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

10

SCREW This part replaces 02112-06808.

02112-06807

2
Out of stock

11

SCREW (6X40) This part replaces 02112-06408.

02112-06407

3
Out of stock

12

SCREW (6X45) This part replaces 02112-06458.

02112-06457

1
Out of stock

13

PLATE, BREATHER

11329-02300

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 09360-06011.

09360-06012

1
Out of stock

15

PLUG SET This part replaces 09259-20003.

09200-20811

1
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 61211-43000.

61211-43001

1
Out of stock

17

NUT

09159-10011

1
Out of stock

18

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

19

NO DESCRIPTION AVAILABLE This part replaces 13150-02420.

13150-02441

1
Out of stock

20

SCREW This part replaces 09128-06002.

02162-0616B

4
Out of stock

21

GASKET,CARBURET This part replaces 13125-46100.

13125-46110

1
Out of stock

22

SCREW This part replaces 09139-06007.

02112-0625A

2
Out of stock

23

2

$2.28

In stock
Crankcase (FZ50N →
