1981 Suzuki FZ50 Crankcase (FZ50N Diagram

← All diagrams

Find the part on the Crankcase (FZ50N diagram for your 1981 Suzuki FZ50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

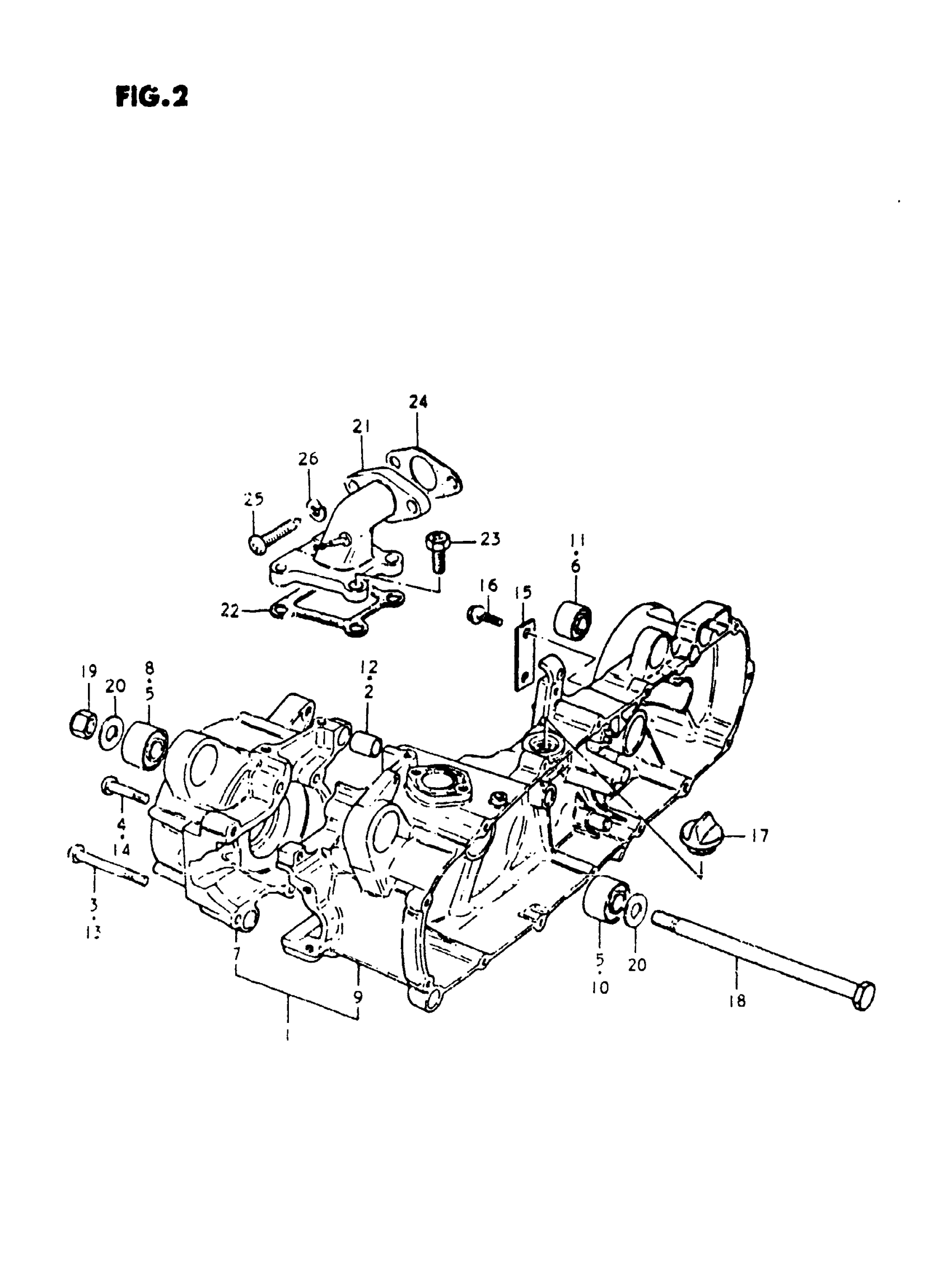

1981 Suzuki FZ50 Crankcase (FZ50N Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LH CRANKCASE SET | MODEL N; Includes Item(s) 2 - 6 This part replaces 11300-02870.

11301-02843

1
Out of stock

2

PIN | MODEL N This part replaces 09206-13001.

04211-13189

2
Out of stock

3

SCREW | MODEL N This part replaces 02112-06808.

02112-06807

2
Out of stock

4

SCREW (6X40) | MODEL N This part replaces 02112-06408.

02112-06407

4
Out of stock

6

BUSH, REAR SHOCK ABSORBER | MODEL N

09319-12002

1
Out of stock

7

RH CRANKCASE SET | MODEL T; Includes Item(s) 8

11301-02820

1
Out of stock

9

LH CRANKCASE SET | MODEL T; Includes Item(s) 10 - 11 This part replaces 11301-02840.

11301-02843

1
Out of stock

11

BUSH, REAR SHOCK ABSORBER | MODEL T

09319-12002

1
Out of stock

12

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

13

SCREW This part replaces 02112-06808.

02112-06807

2
Out of stock

14

SCREW (6X40) This part replaces 02112-06408.

02112-06407

4
Out of stock

15

PLATE, BREATHER

11329-02300

1
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 09360-06011.

09360-06012

1
Out of stock

17

PLUG SET This part replaces 09259-20003.

09200-20811

1
Out of stock

18

NO DESCRIPTION AVAILABLE This part replaces 61211-43000.

61211-43001

1
Out of stock

19

NUT

09159-10011

1
Out of stock

20

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

21

REED VALVE ASSY

13150-02400

1
Out of stock

22

GASKET

13156-02300

1
Out of stock

23

SCREW This part replaces 09128-06002.

02162-0616B

4
Out of stock

24

GASKET,CARBURET This part replaces 13125-46100.

13125-46110

1
Out of stock

25

SCREW This part replaces 09139-06007.

02112-0625A

2
Out of stock

26

2

$2.28

In stock
← Crankcase Crankcase Cover →
